Installation Procedure

Position the heat shield to the underbody.

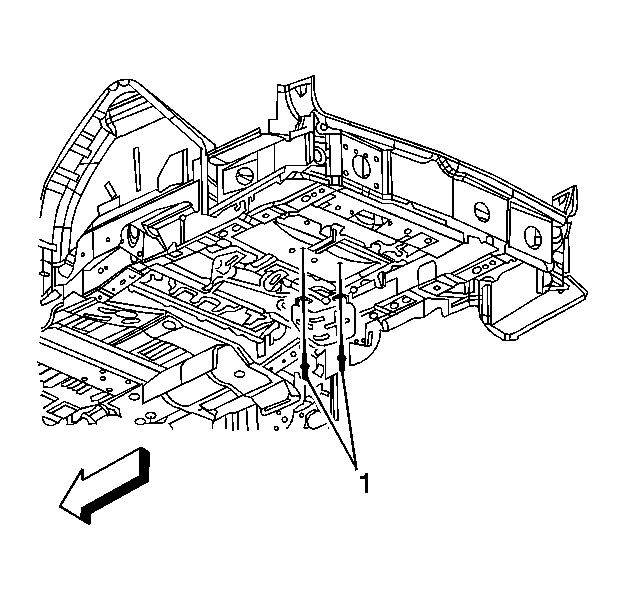

Fig 1: Identifying Exhaust Resonator Heat Shield Rivets

Courtesy of GENERAL MOTORS CORP.

Install NEW rivets (1) attaching the resonator heat shield to the underbody.
Install muffler. Refer to Muffler Replacement .
