Control Module: Diagrams



Automatic Transmission Related Connector End Views

Transmission Control Module (TCM), Engine Side:

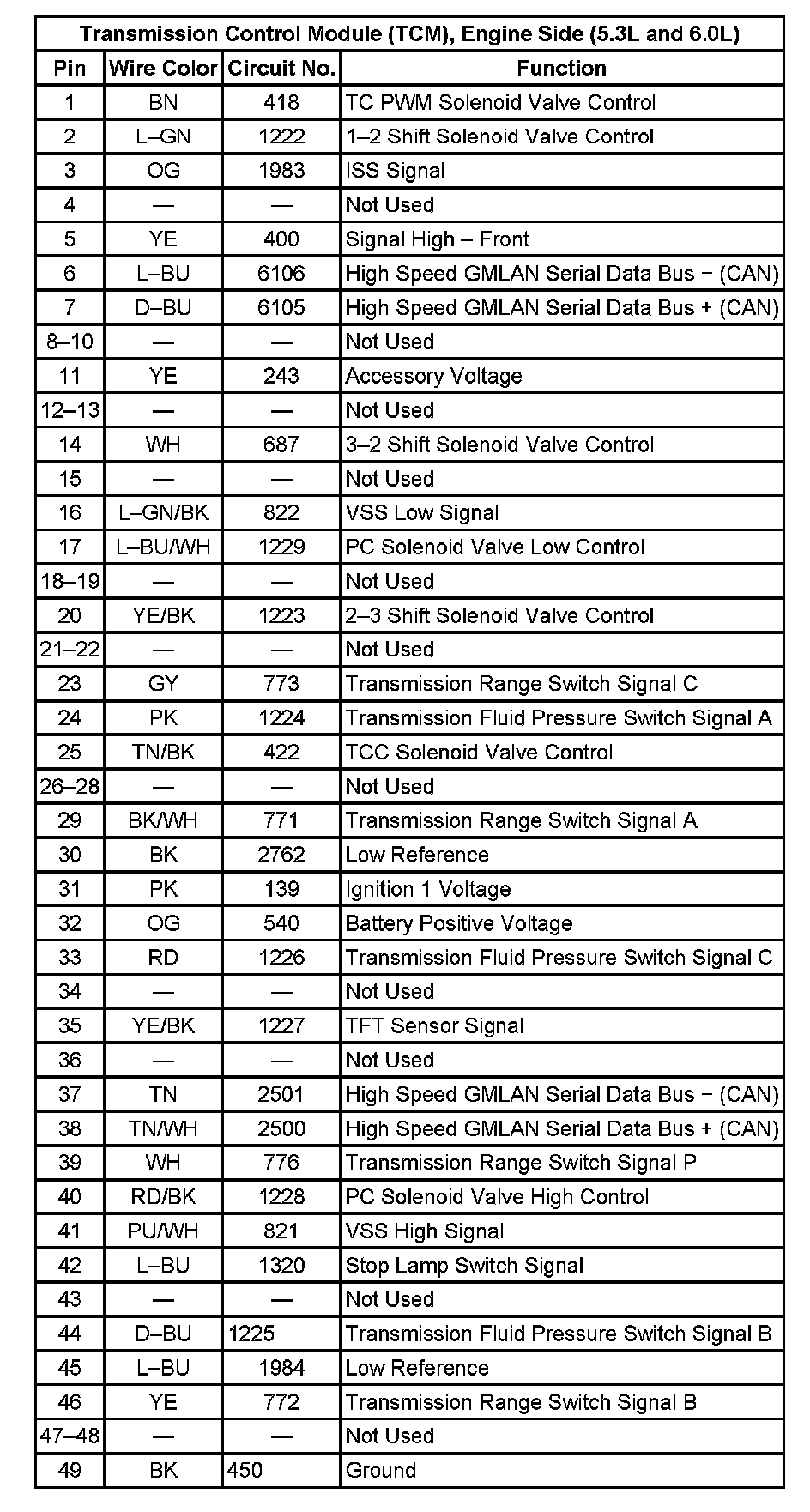

Transmission Control Module (TCM), Engine Side (5.3L and 6.0L):
