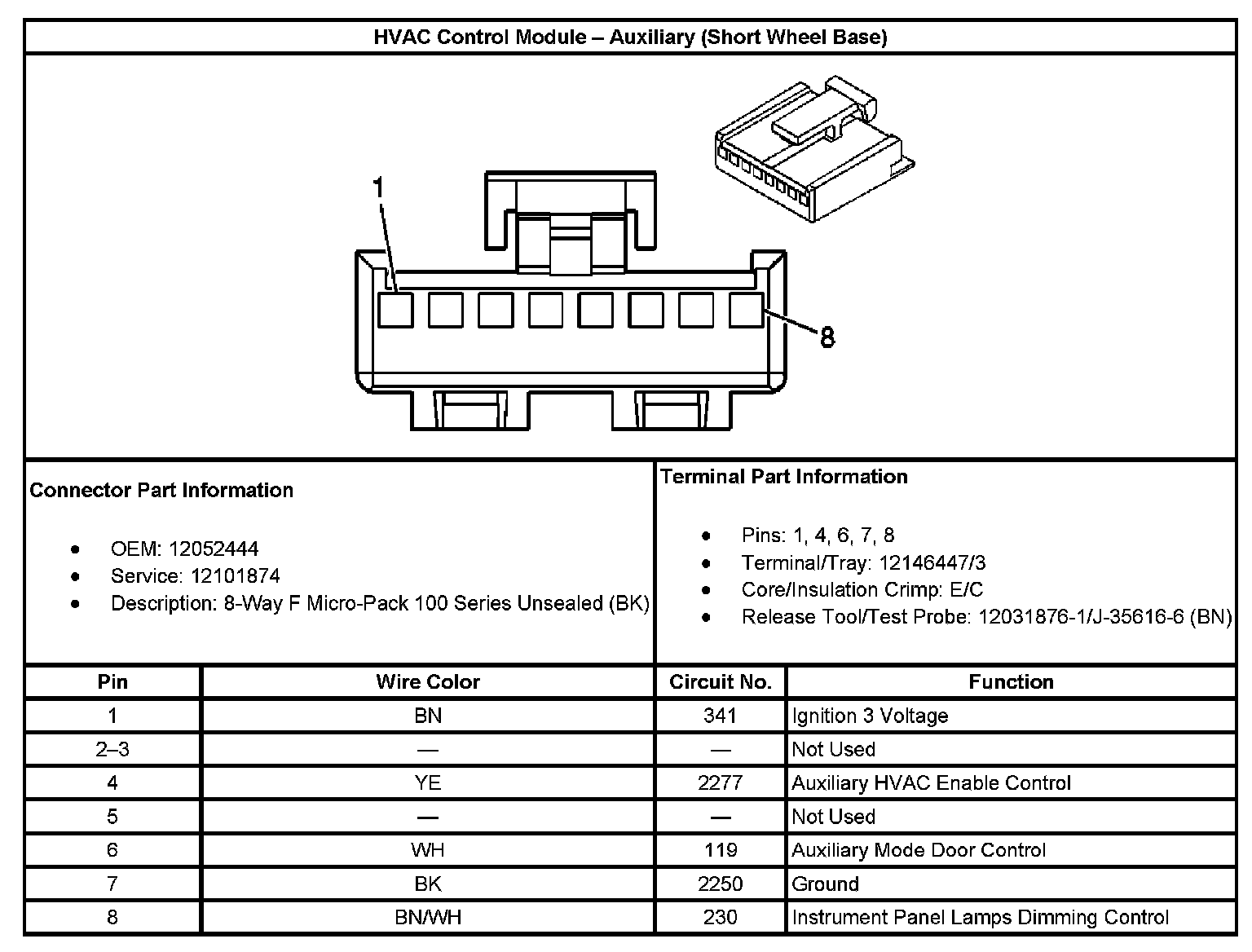

HVAC Control Module - Auxiliary (Short Wheel Base)

HVAC Control Module - Auxiliary (Short Wheel Base):
