Vehicle Speed Sensor Assembly Connector End View, Wiring Harness Side

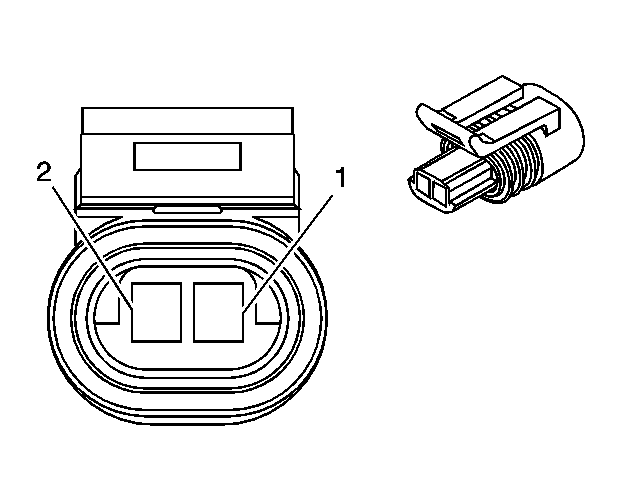

Fig 1: Vehicle Speed Sensor Assembly Connector View
GM1540795Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Related Connector End Views

Connector Part Information
  • OEM: 12162194
  • Service:
  • Description: 2-Way F Metri-Pack 150.2 P2 Series (YE/BK)
Terminal Part Information
  • Terminal/Tray:
  • Core/Insulation Crimp:
  • Release Tool/Test Probe:
Vehicle Speed Sensor Assembly, Wiring Harness Side

Pin Wire Color Circuit No. Function
1 L-GN/BK 822 VSS Low Signal
2 PU/WH 821 VSS High Signal
