Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

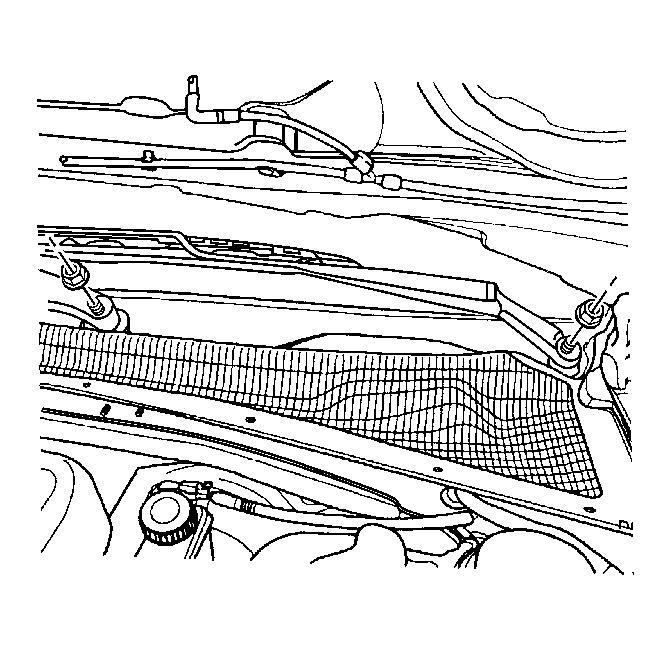

    Fig 1: View Of Wiper Arms And Nuts
    GM1308526Courtesy of GENERAL MOTORS CORP.
  1. Install the wiper arm.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Secure the wiper arm with the nut.

    Tighten:  Tighten the wiper arm nut to 22 N.m (16 lb ft)  .

  3. Close the hood.
