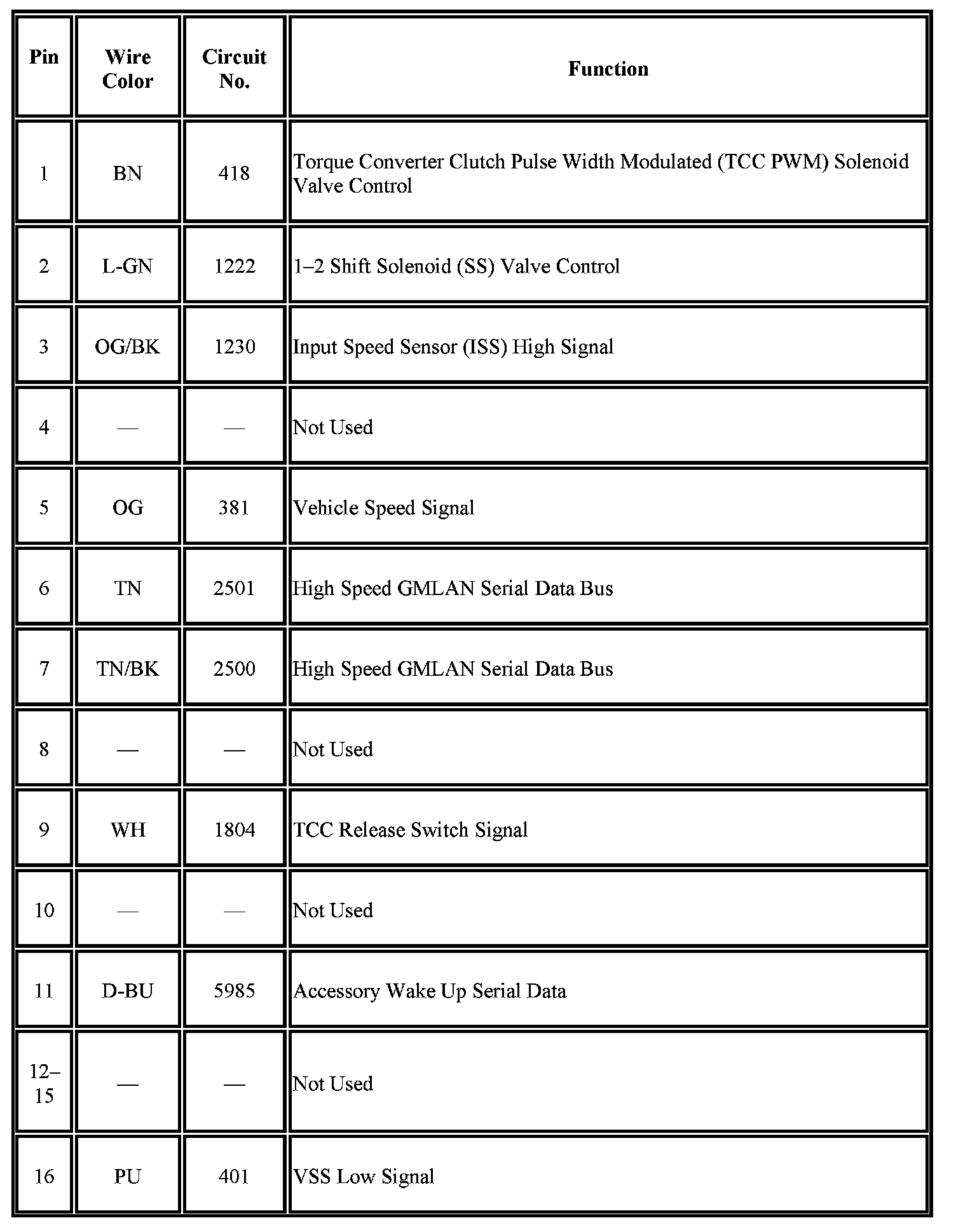

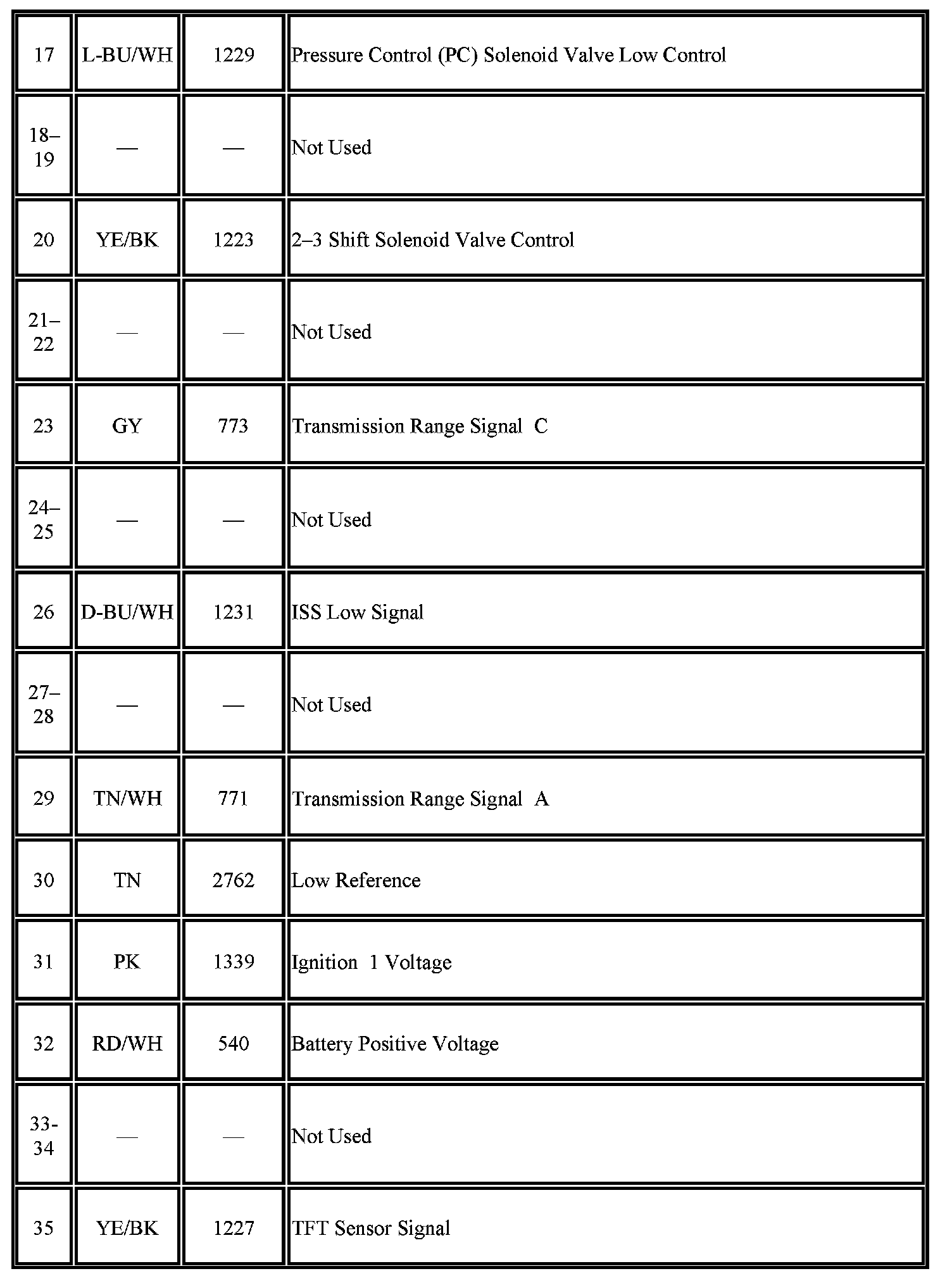

Automatic Transmission Related Connector End Views

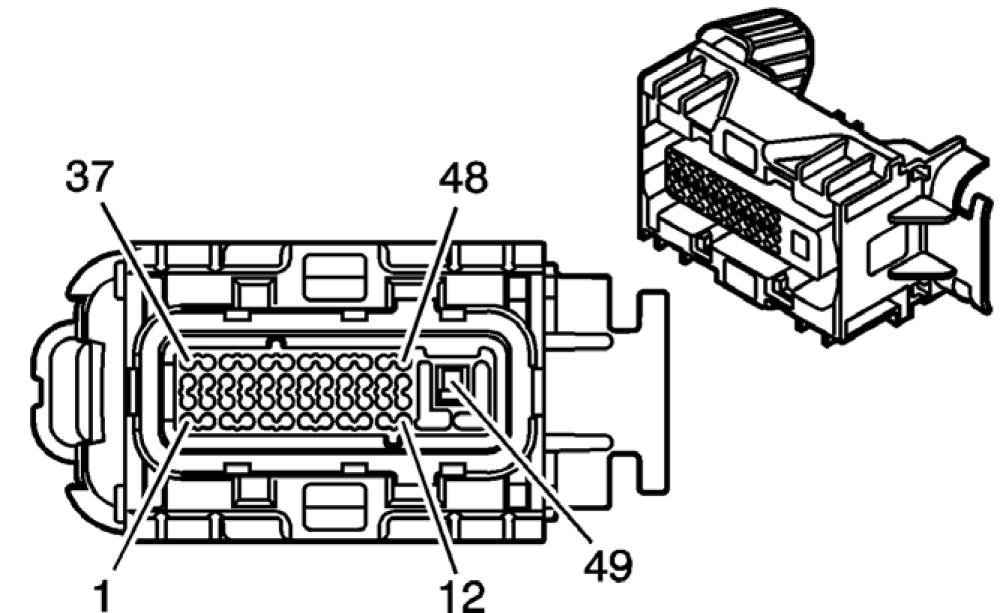

Connector Part Information

^ OEM: 15476993
^ Service: See Catalog
^ Description: 49-Way F Micro-64 GT 280 Series Sealed (BK)
