Front Side Marker Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

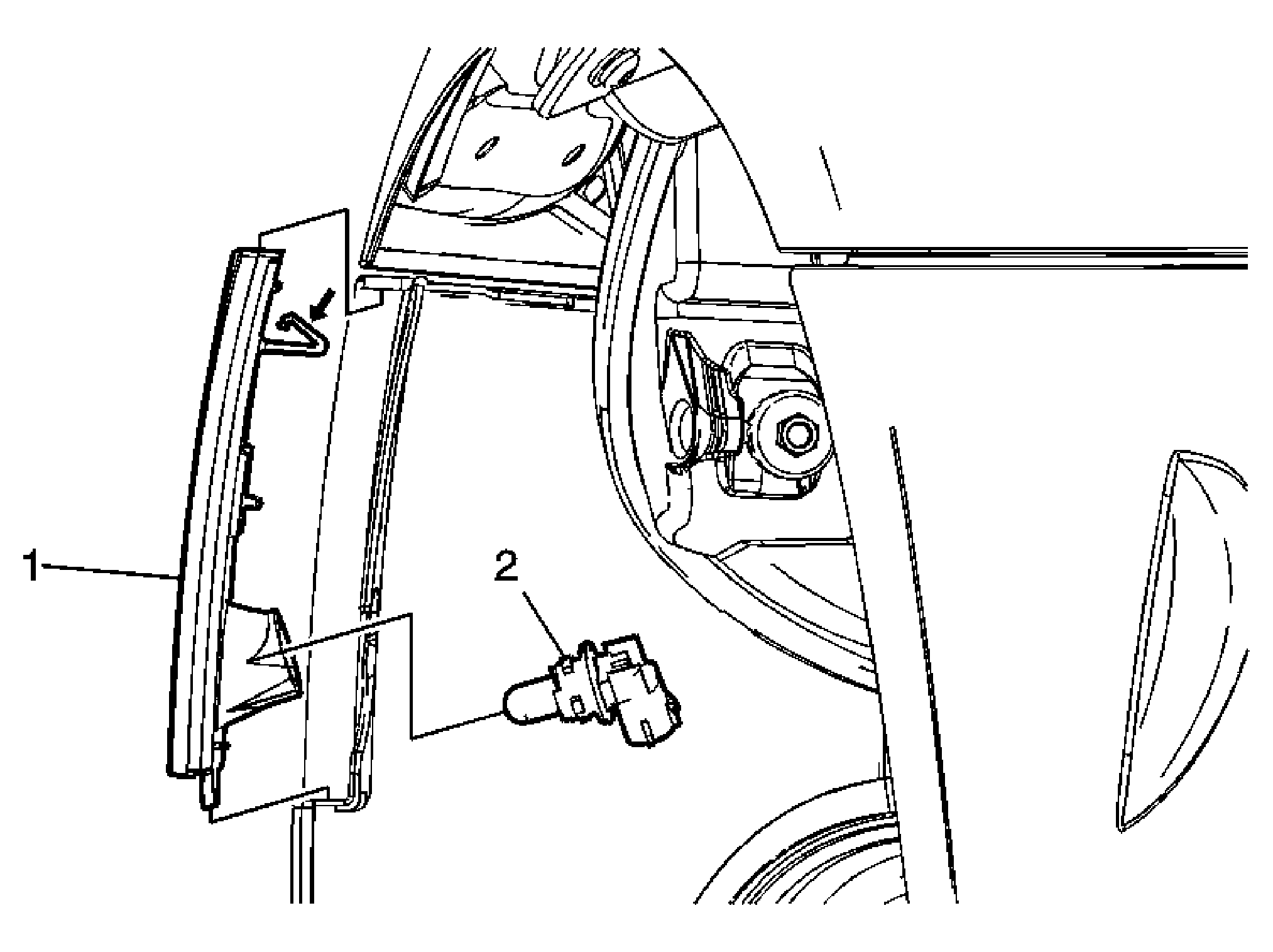

Fig 1: Marker Lamp - Front Side
GM1581582Courtesy of GENERAL MOTORS CORP.
Front Side Marker Lamp Replacement

Callout Component Name
1 Front Side Marker Lamp Assembly
Tip:  Squeeze the upper lamp assembly tab downward and push the lens outward from the top of the front bumper fascia and lift upward to remove.
2 Front Side Marker Lamp Bulb Socket
Tip:  Turn the socket counterclockwise to remove and replace bulb as needed.
