Inner Rear Energy Absorber Pad Replacement

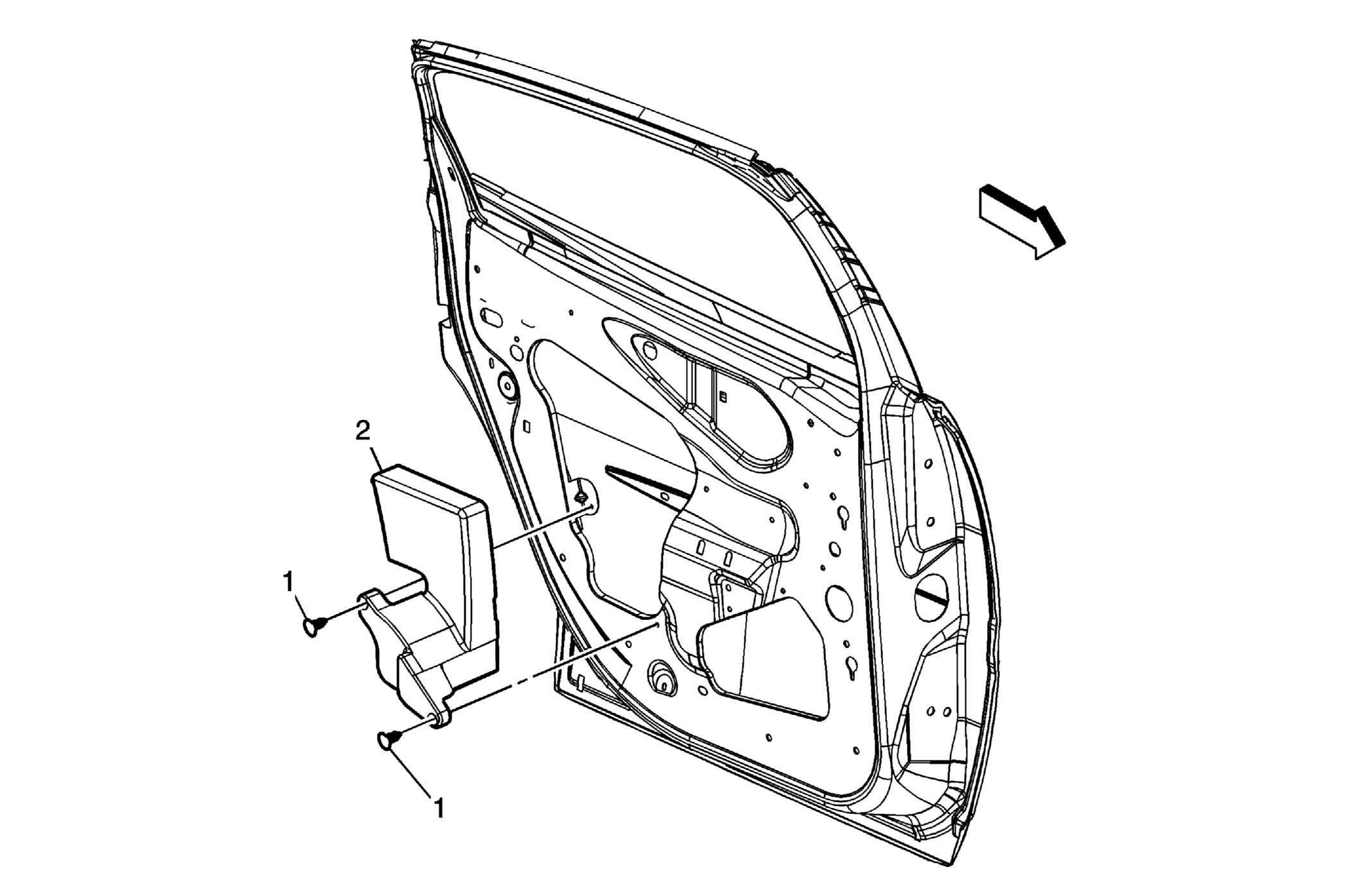

Fig 1: Replacing Inner Rear Energy Absorber Pad
GM1607933Courtesy of GENERAL MOTORS CORP.
Energy Absorber Pad Replacement - Inner Rear

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) .
1 Retainer, Push Pin (Qty: 2)
2 Absorber, Rear Side Door Energy
Tip:  Pull the absorber from the door to release the retainers and adhesive.
