Shift Control Boot Replacement

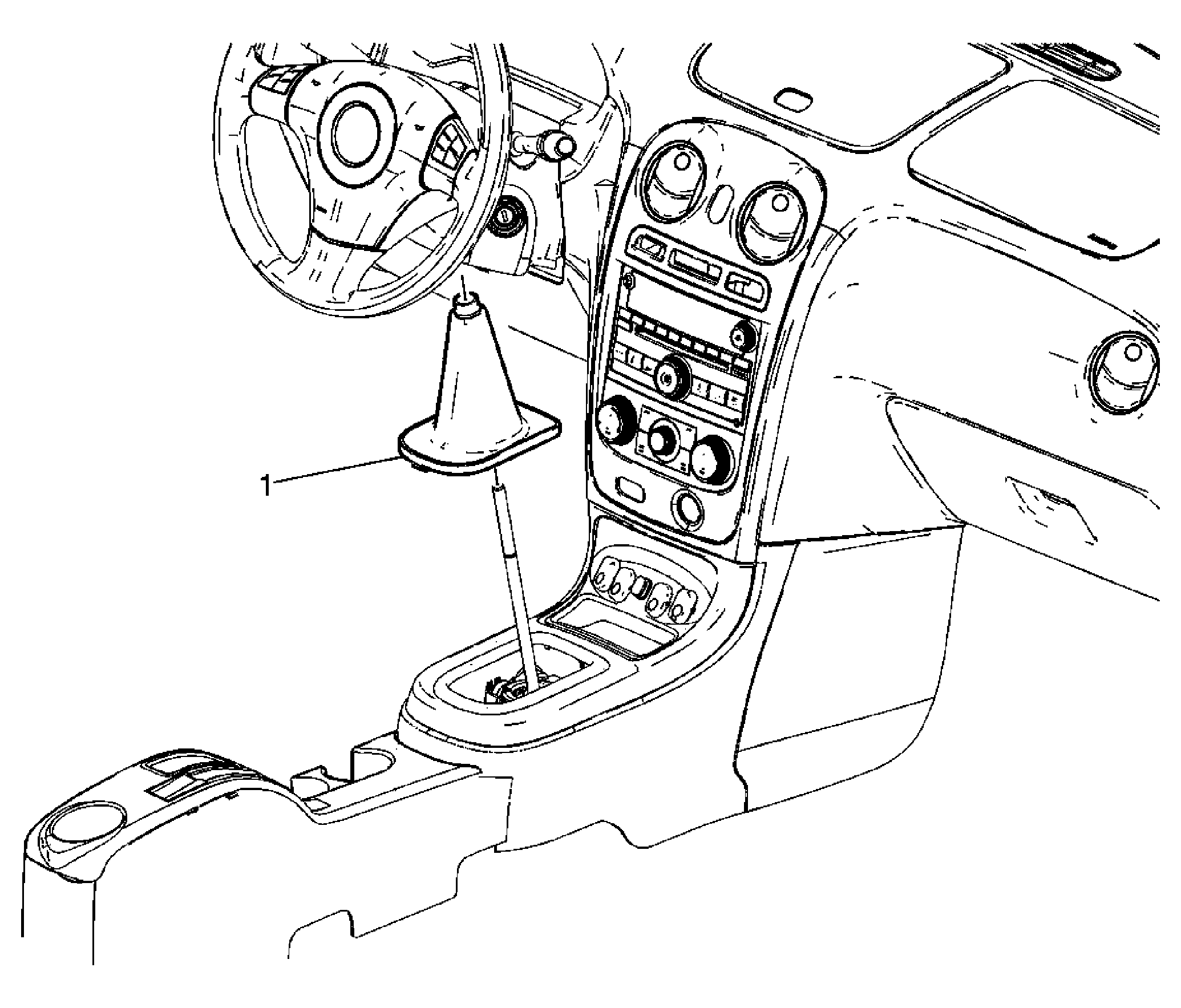

Fig 1: Shift Control Boot Replacement
GM1631909Courtesy of GENERAL MOTORS CORP.
Shift Control Boot Replacement

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the shift control knob. Refer to Shift Control Knob Replacement .
1 Shift Control Boot
