Body Control System Schematics

WARNING: This page is about a different car, the 2007 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

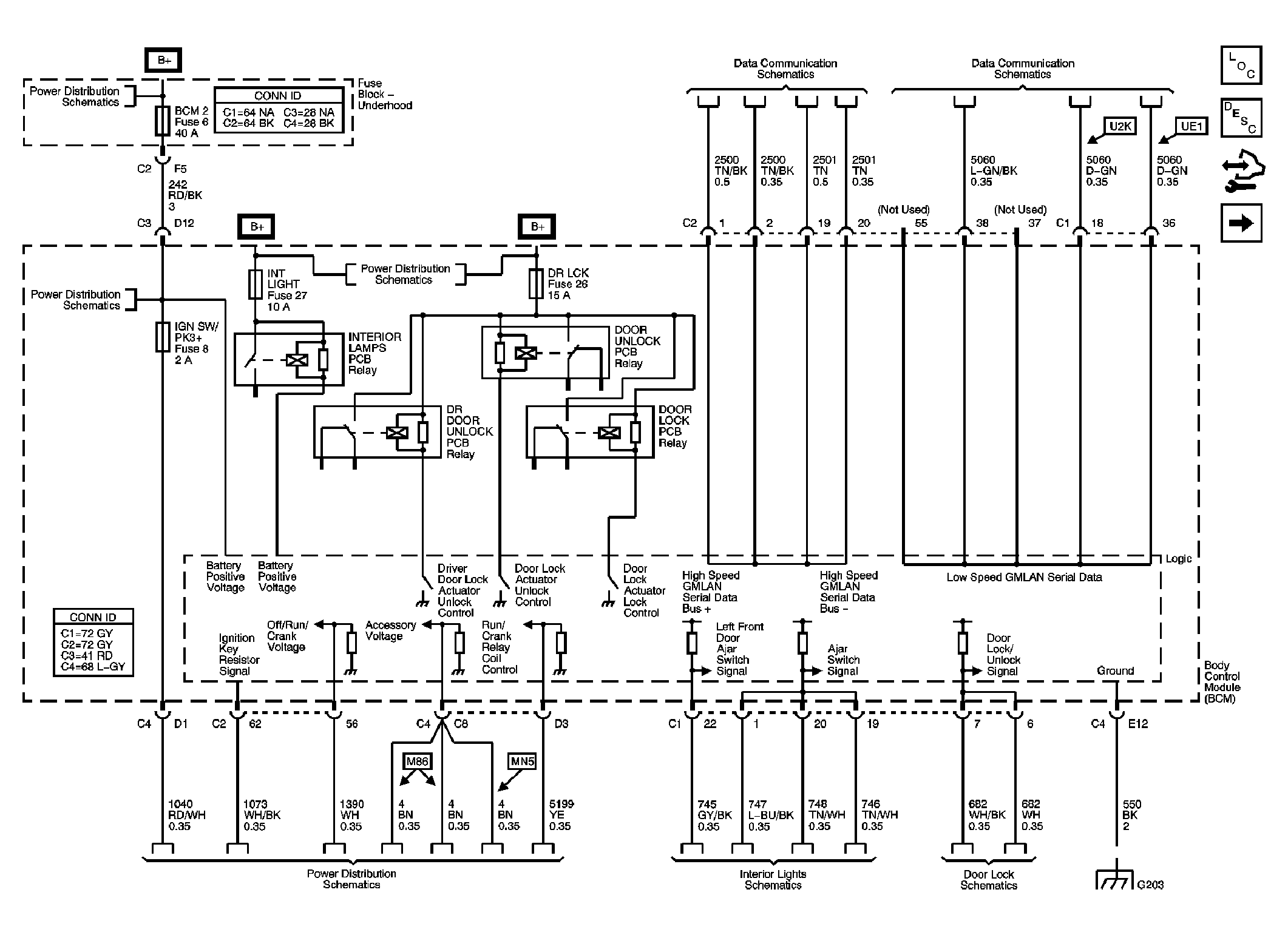

Fig 1: Door Lock Indicators, Power, Ground, Data Link, and Engine References

Courtesy of GENERAL MOTORS CORP.

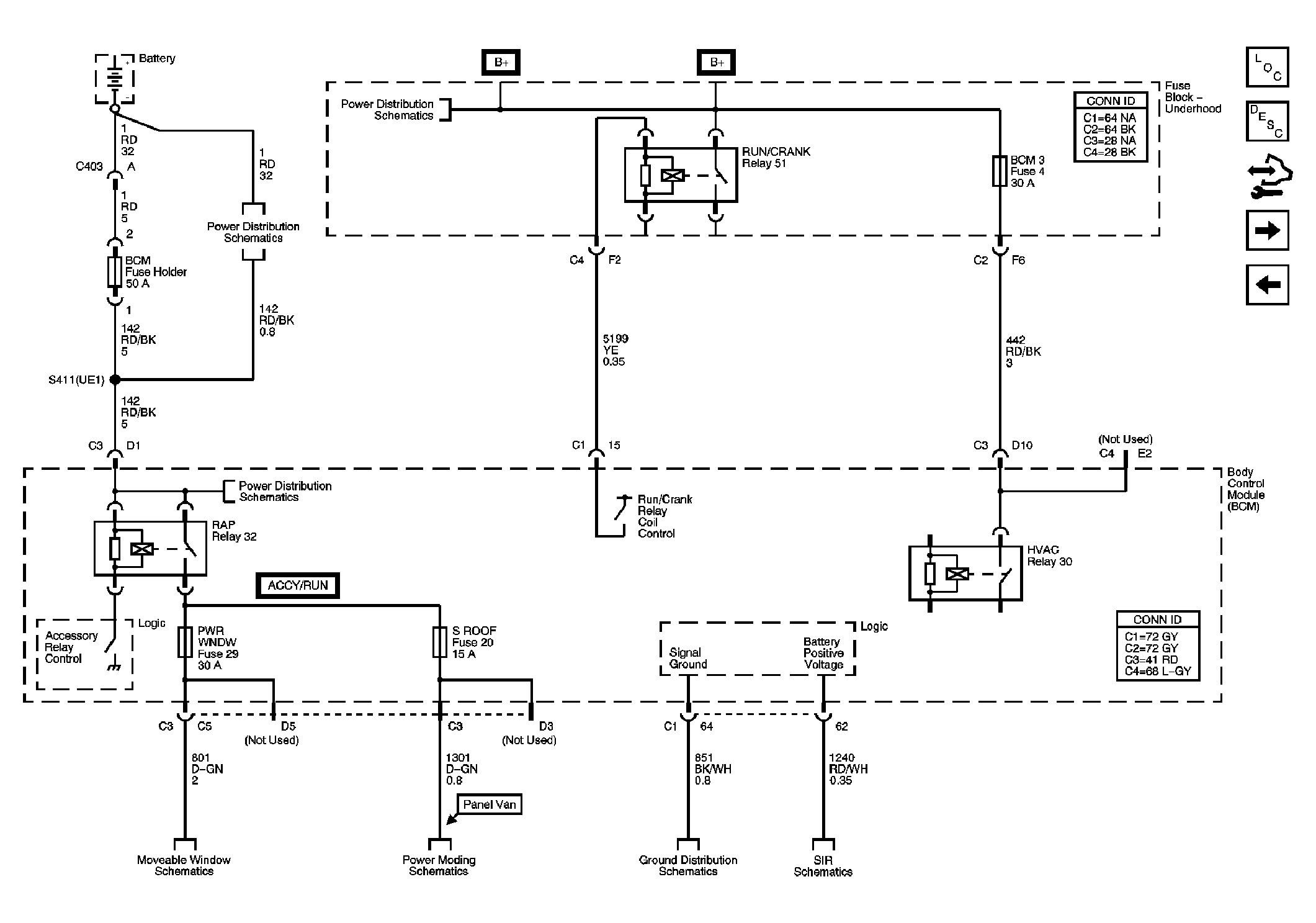

Fig 2: RUN/CRANK, RAP, HVAC Relays, BCM3, PWR WNDW, SROOF Fuses

Courtesy of GENERAL MOTORS CORP.

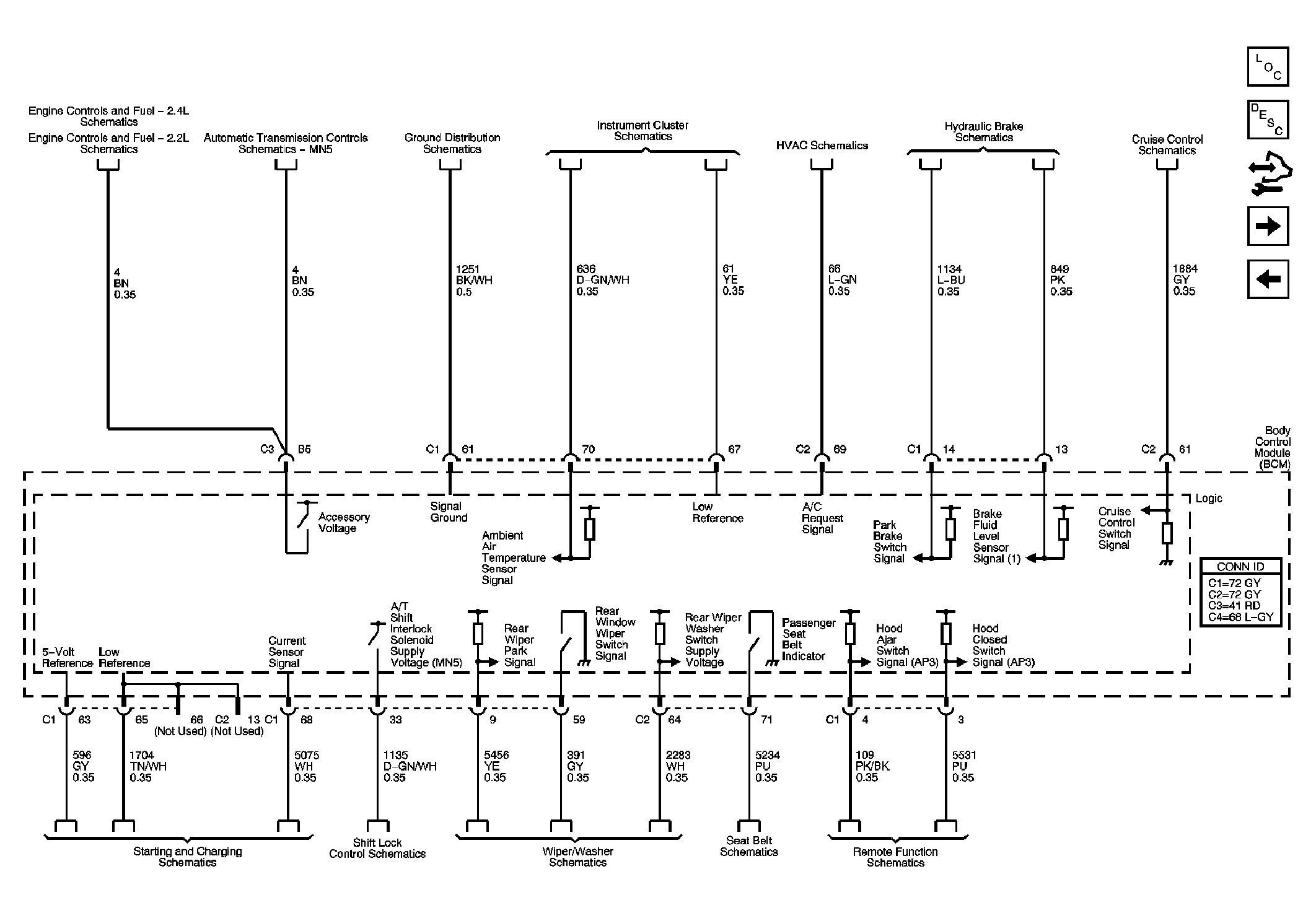

Fig 3: SIR, Shift Lock Control, ABS, Brake Warning, Cruise Control, Keyless Entry, Wiper/Washer, Engine Controls

Courtesy of GENERAL MOTORS CORP.

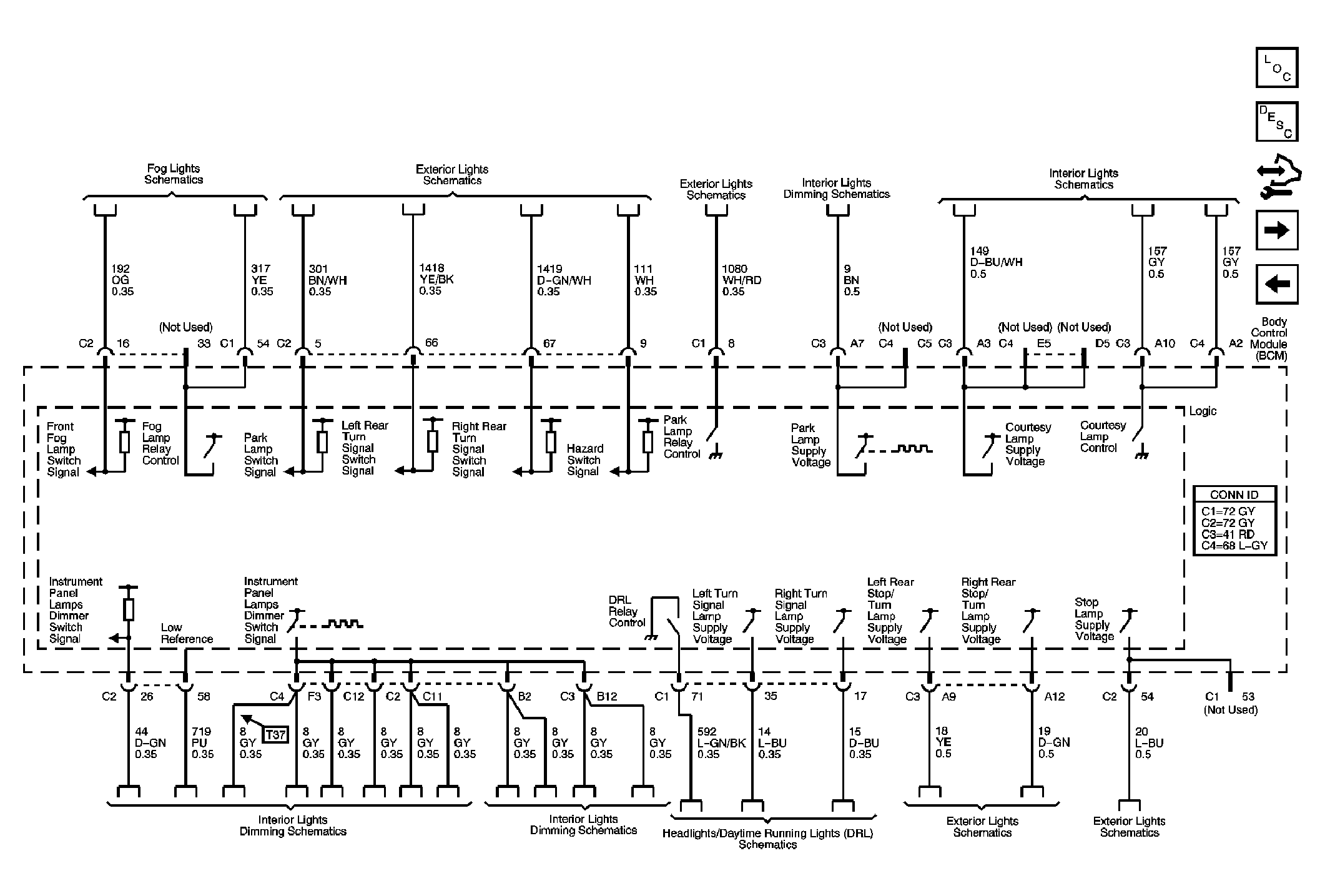

Fig 4: Lighting System References

Courtesy of GENERAL MOTORS CORP.

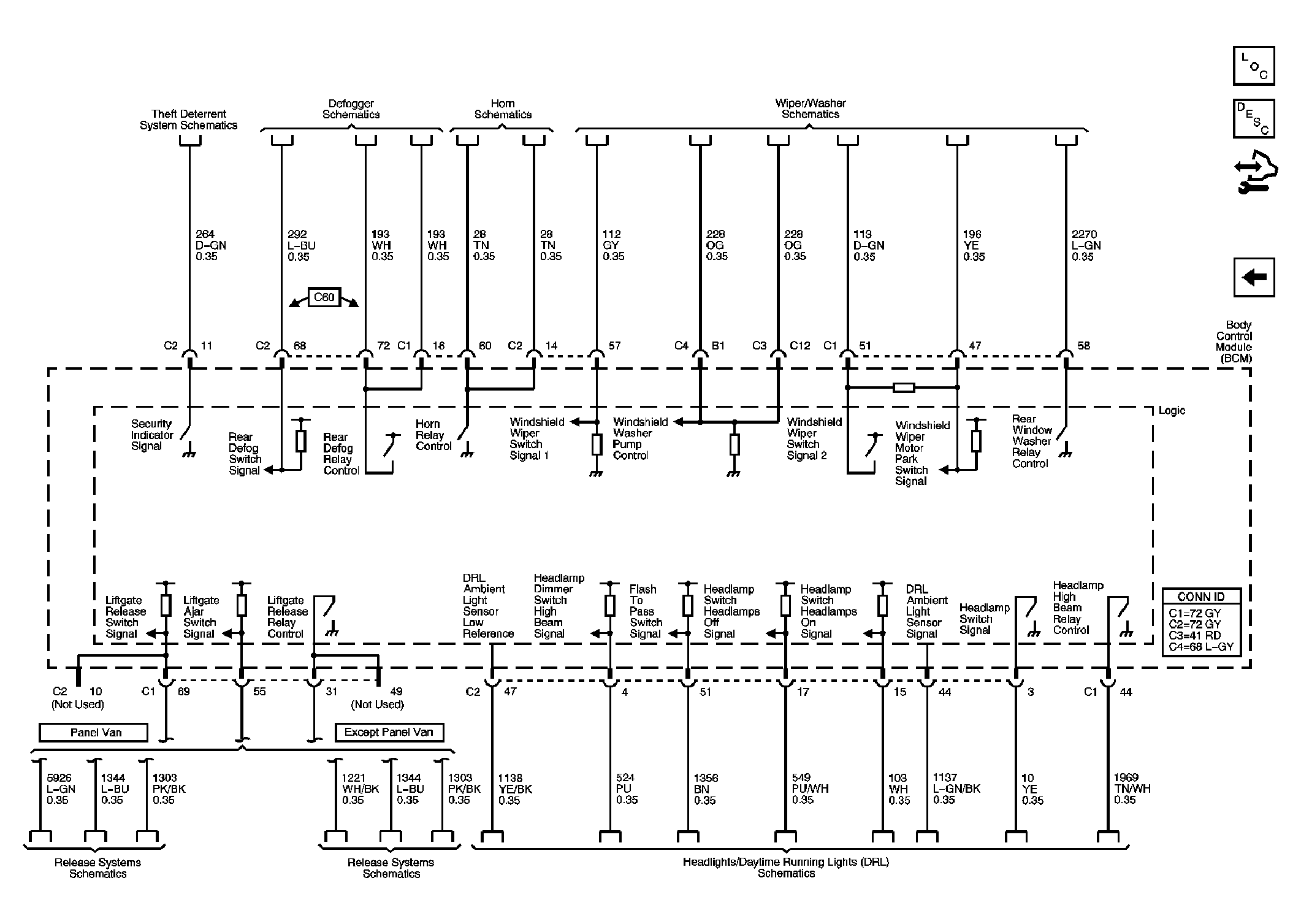

Fig 5: Body Rear End, Defogger, Headlights, DRL, Horns, and Wiper/Washer References

Courtesy of GENERAL MOTORS CORP.
