Window Regulator Replacement - Rear Door

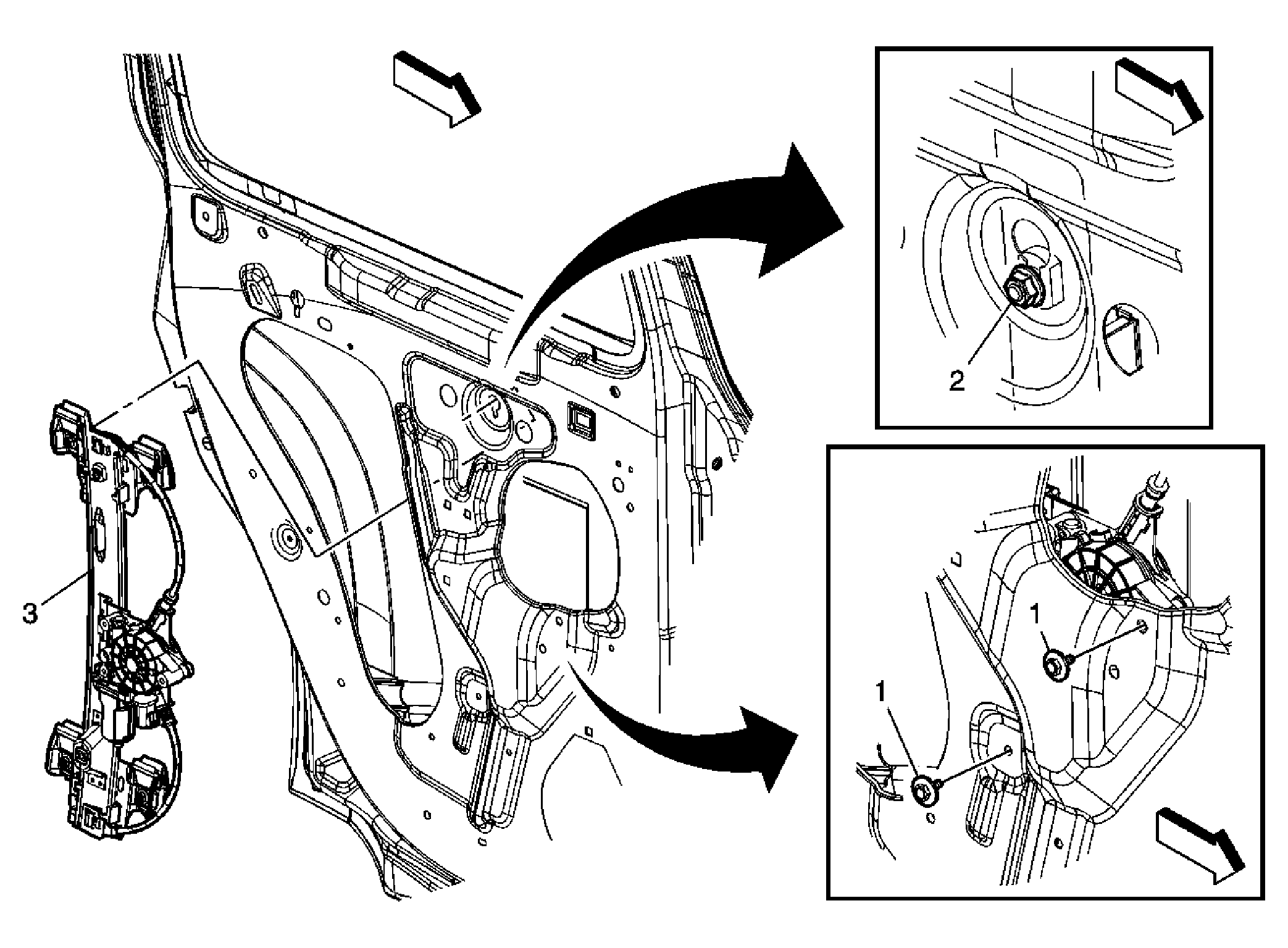

Fig 1: Window Regulator Replacement - Rear Door
GM1608764Courtesy of GENERAL MOTORS CORP.
Window Regulator Replacement - Rear Door

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .

Preliminary Procedures

  1. Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Move the window to the full up position and secure in place with tape.
  4. Loosen the bolts on the clamps that secure the window to the regulator.
1 Side Door Window Regulator Bolt (Qty: 2)

Tighten:  10 N.m (89 lb in)
2 Side Door Window Regulator Bolt
Tip:  Loosen the bolt enough so that the regulator assembly will lift out of the t-slot in the door inner panel.

Tighten:  10 N.m (89 lb in)
3 Rear Side Door Window Regulator Assembly
Tip:  Disconnect the electrical connector.
