Armrest Pull Cup Replacement

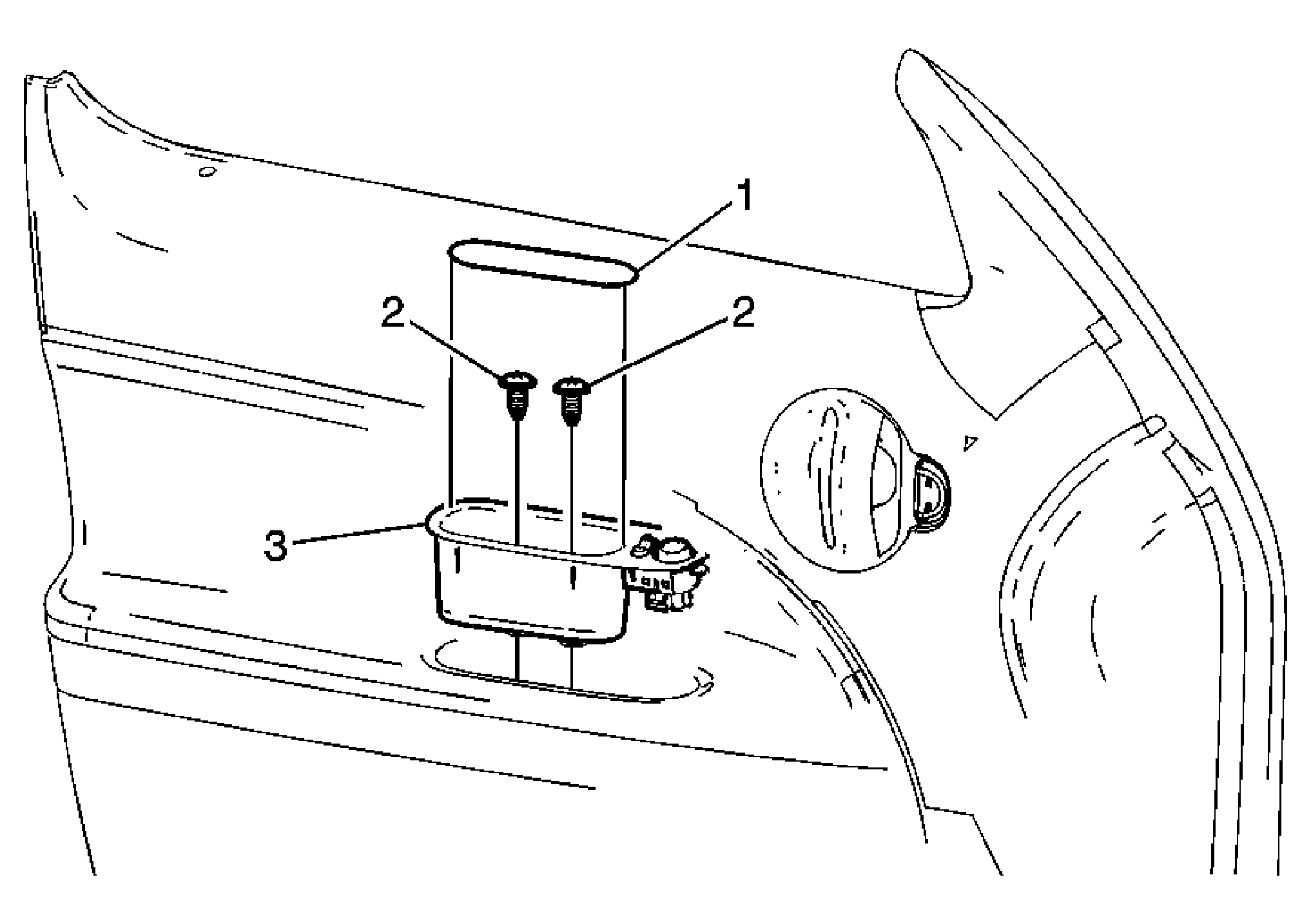

Fig 1: Armrest Pull Cup Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Side Door Armrest Pull Cup Liner
2	Side Door Armrest Pull Cup Screw (Qty: 2) Tighten: 3 N.m (25 lb in)
3	Side Door Armrest Pull Cup Tip: Disconnect the electrical connector to the power mirror, if equipped.
