Electrical Diagrams

Automatic Transmission Controls Diagrams

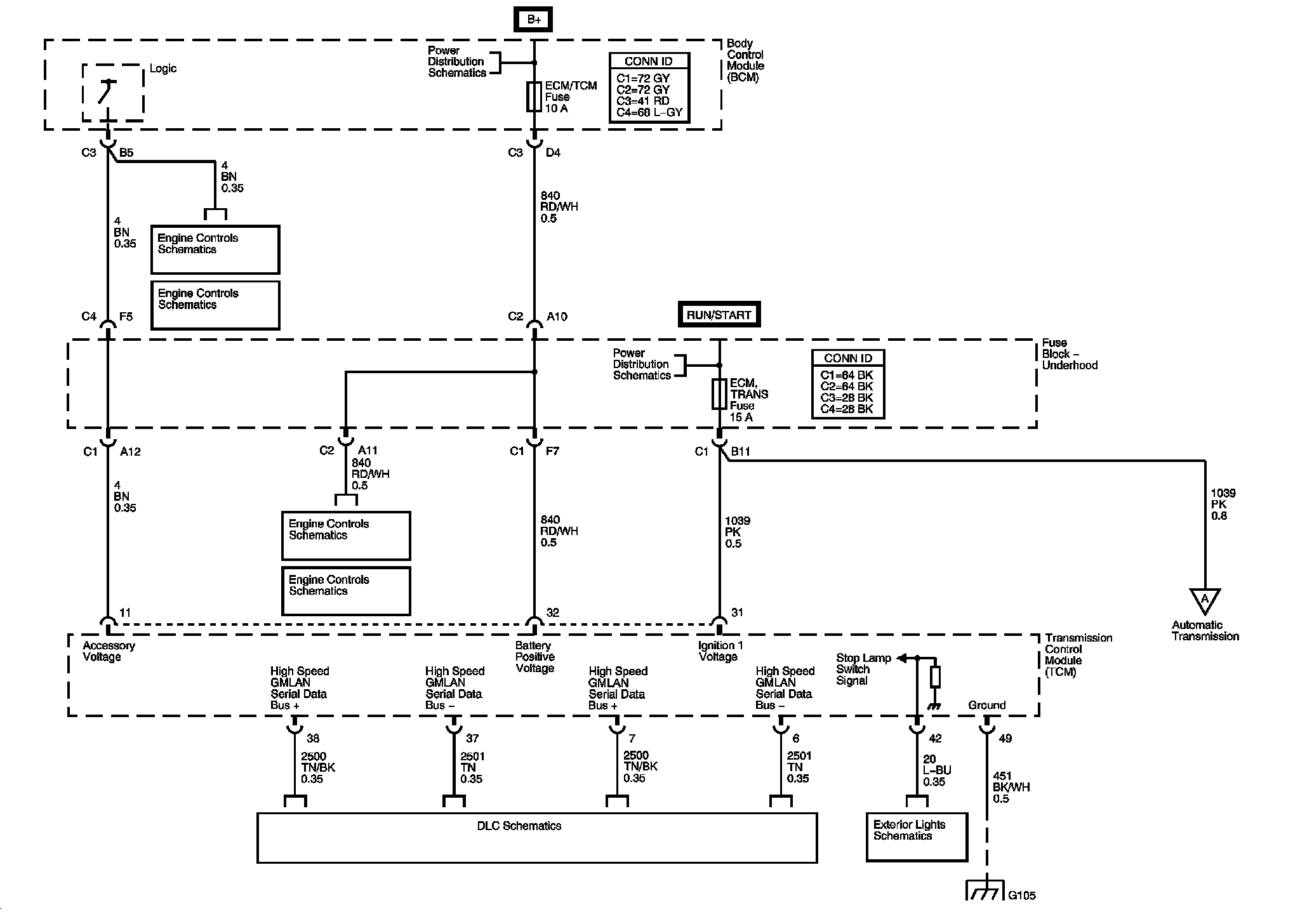

Automatic Transmission Controls Diagrams 1:

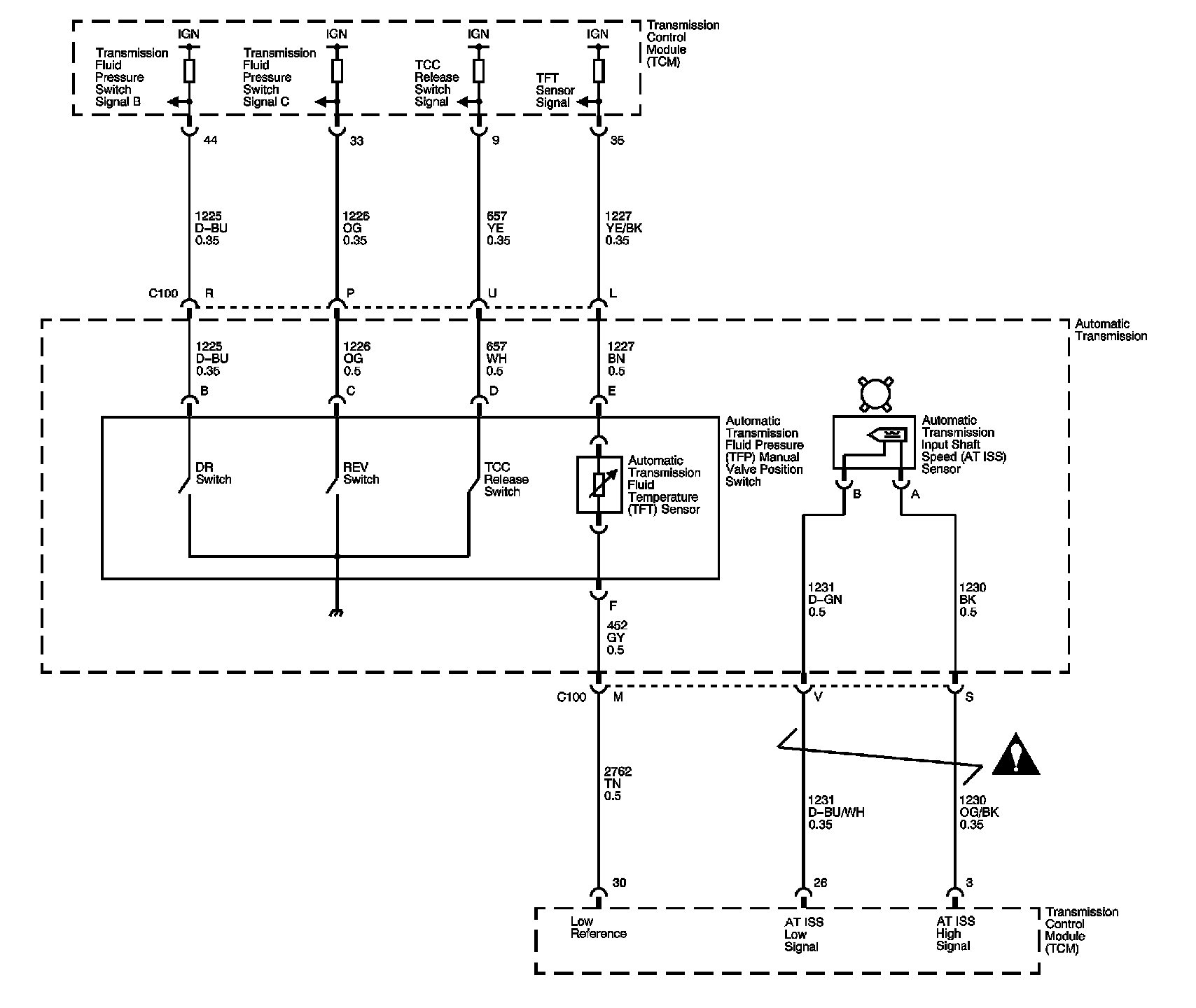

Automatic Transmission Controls Diagrams 2:

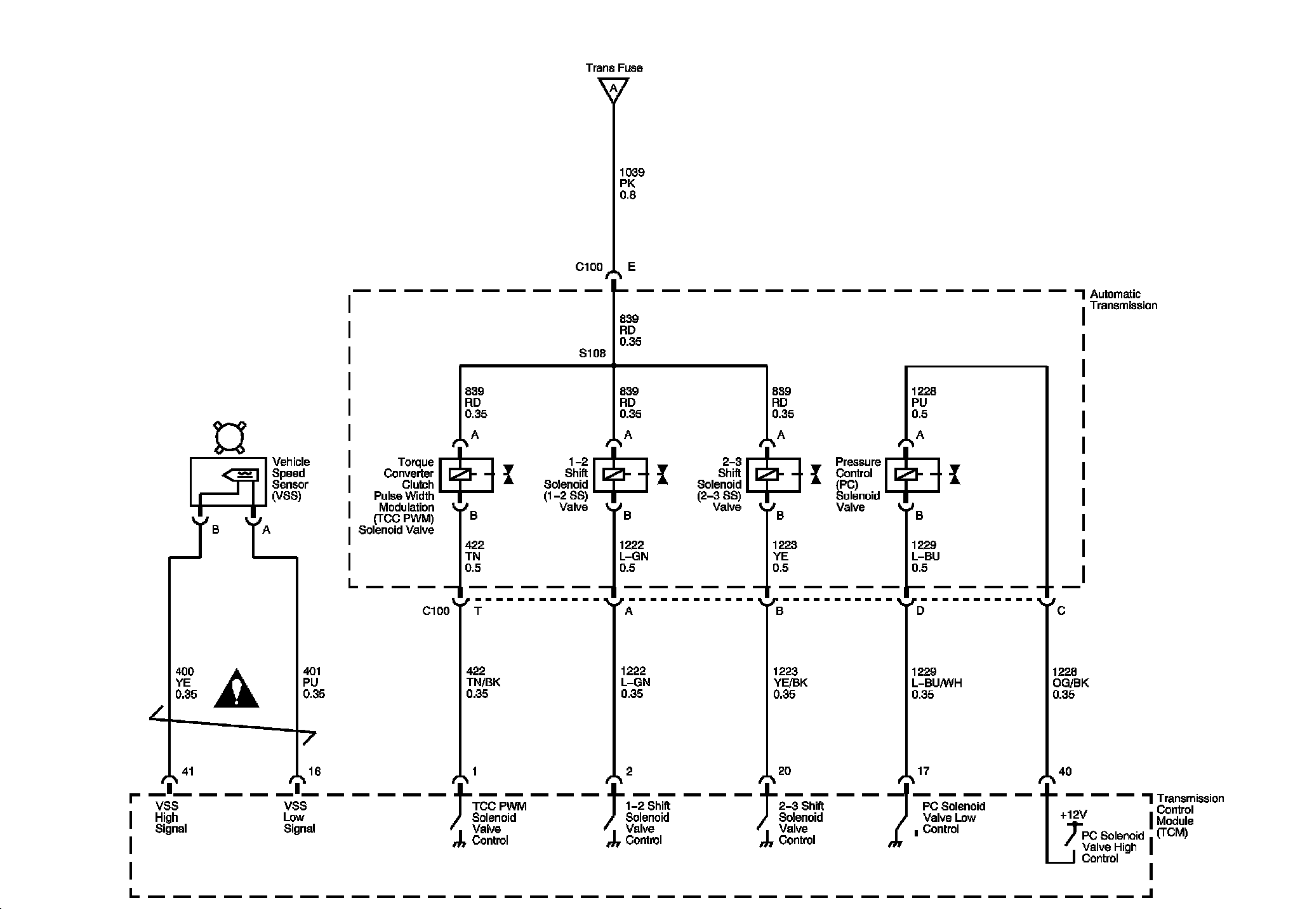

Automatic Transmission Controls Diagrams 3:

Automatic Transmission Controls Diagrams 4:

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
