Body Control Module (BCM) - C1

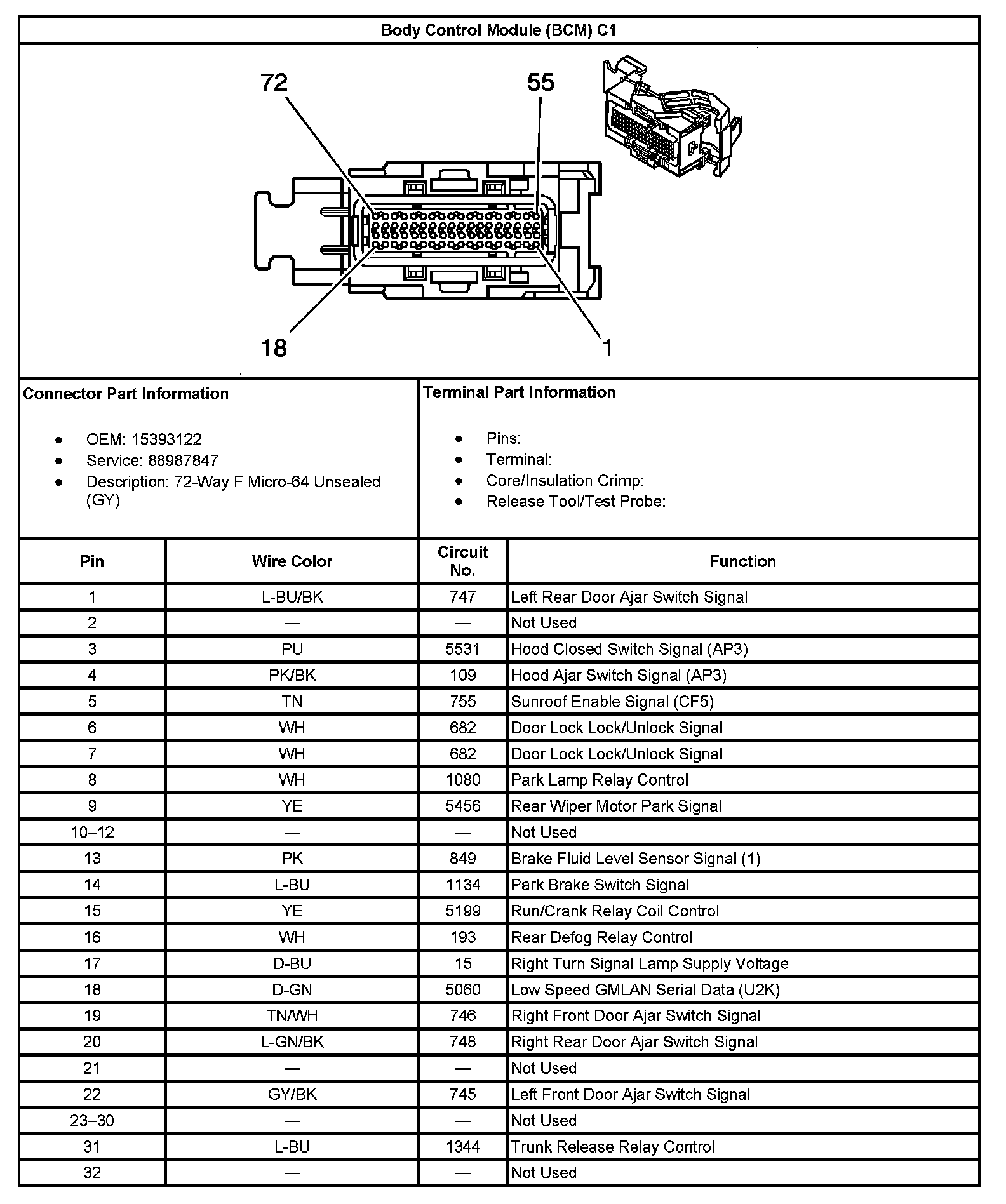

Body Control Module (BCM) C1 (Part 1):

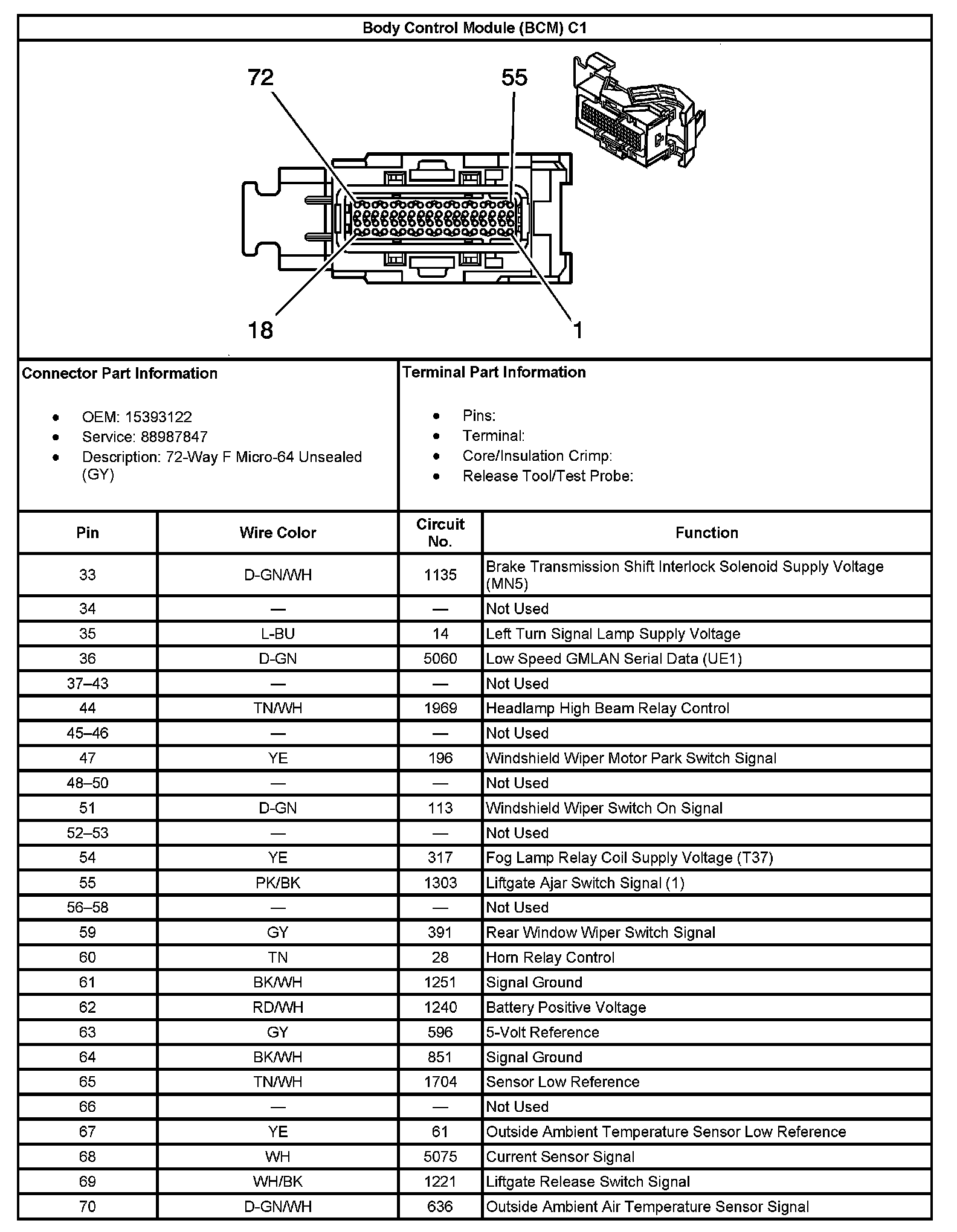

Body Control Module (BCM) C1 (Part 2):

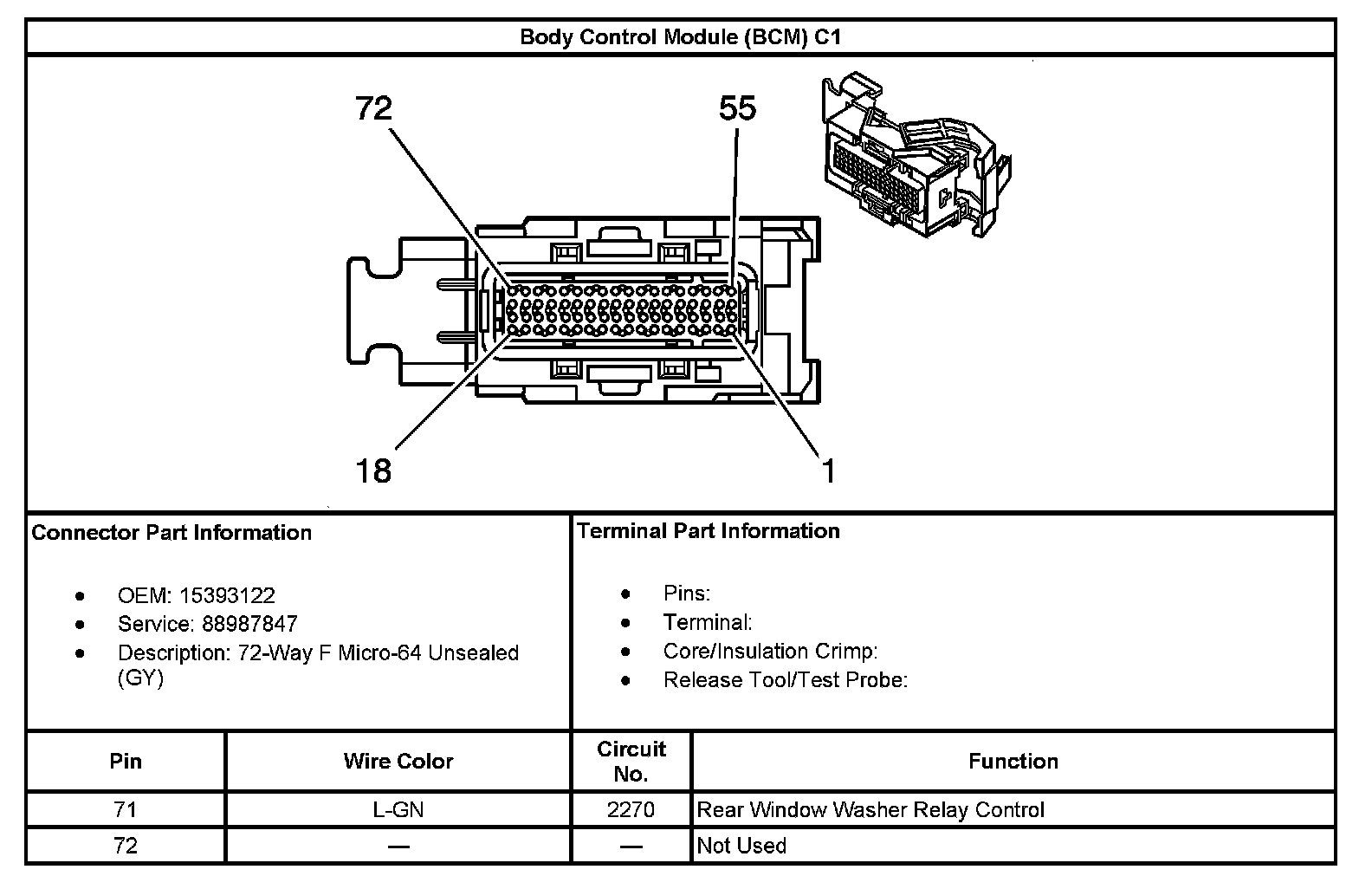

Body Control Module (BCM) C1 (Part 3):
