Global Positioning System Module: Diagrams

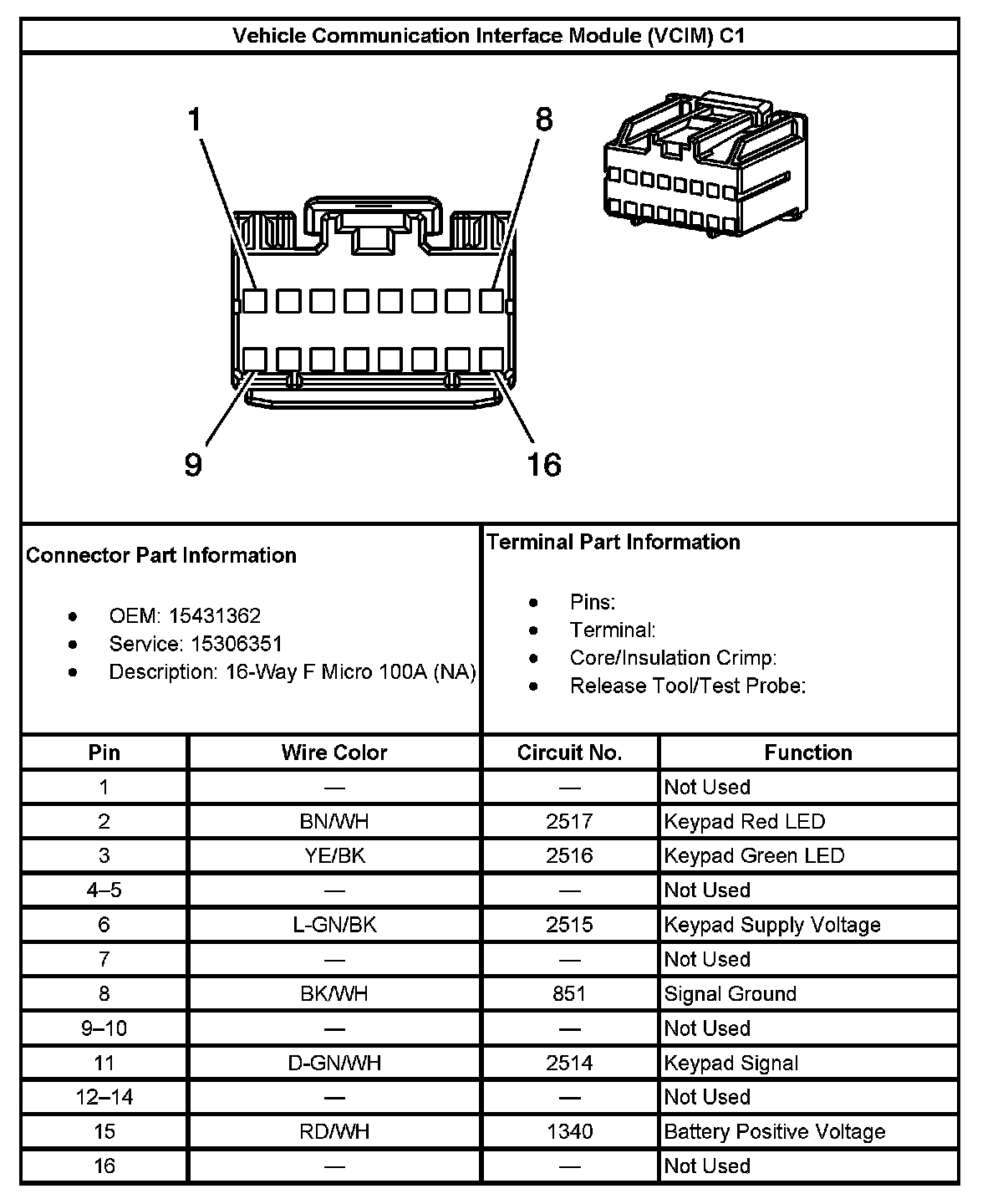

Vehicle Communication Interface Module (VCIM) C1:

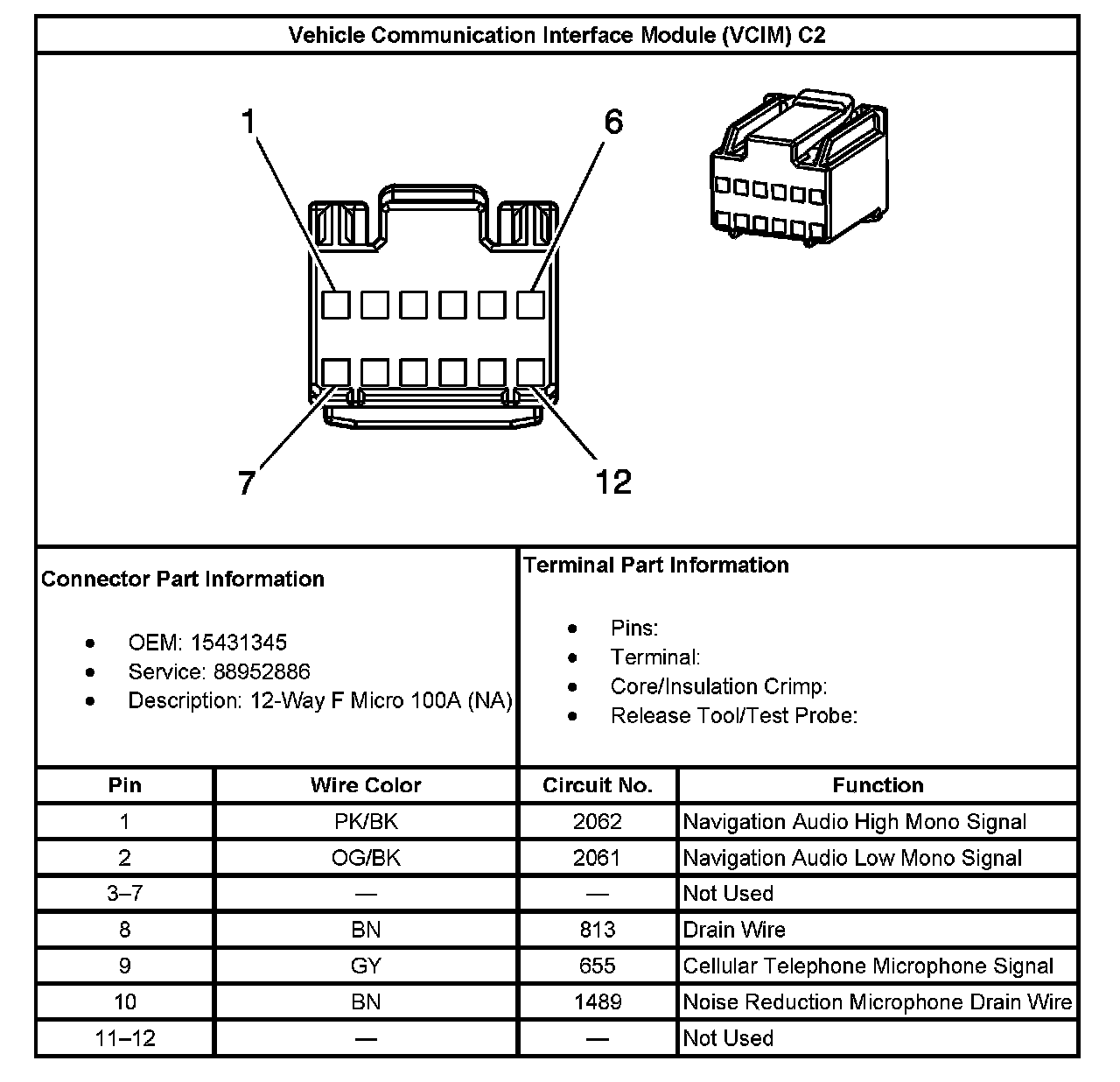

Vehicle Communication Interface Module (VCIM) C2:

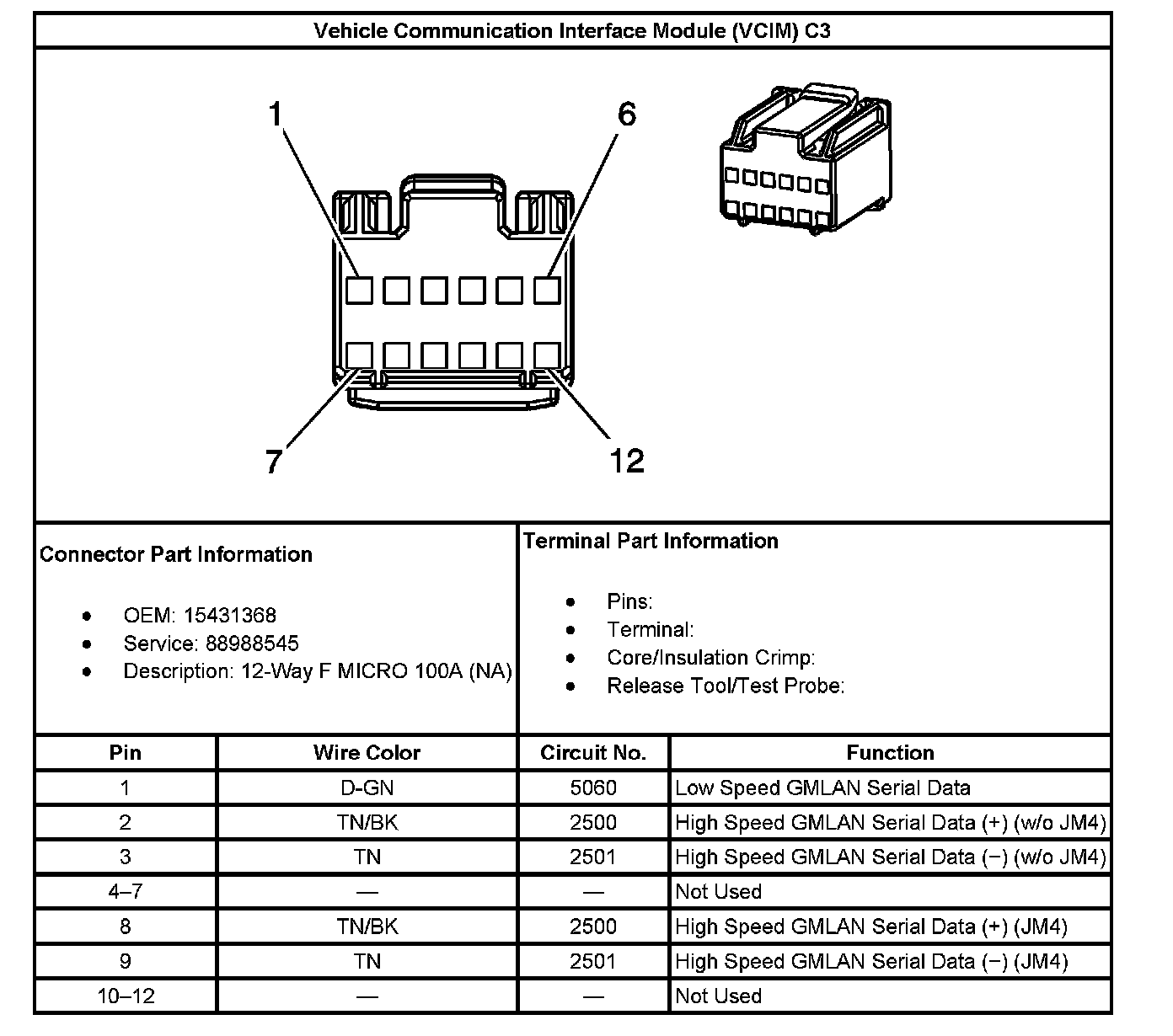

Vehicle Communication Interface Module (VCIM) C3:
