Express 2500 V8-4.8L VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

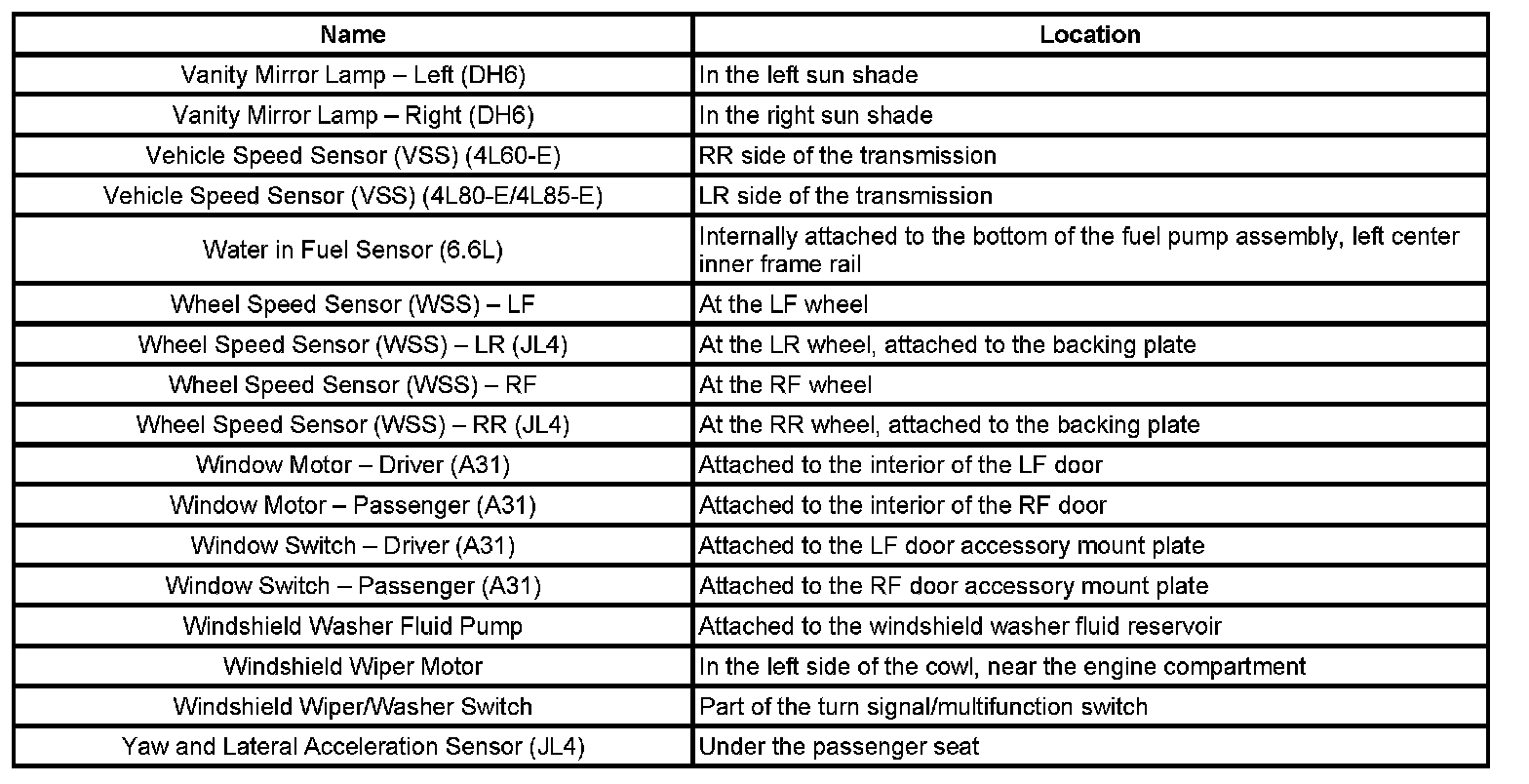

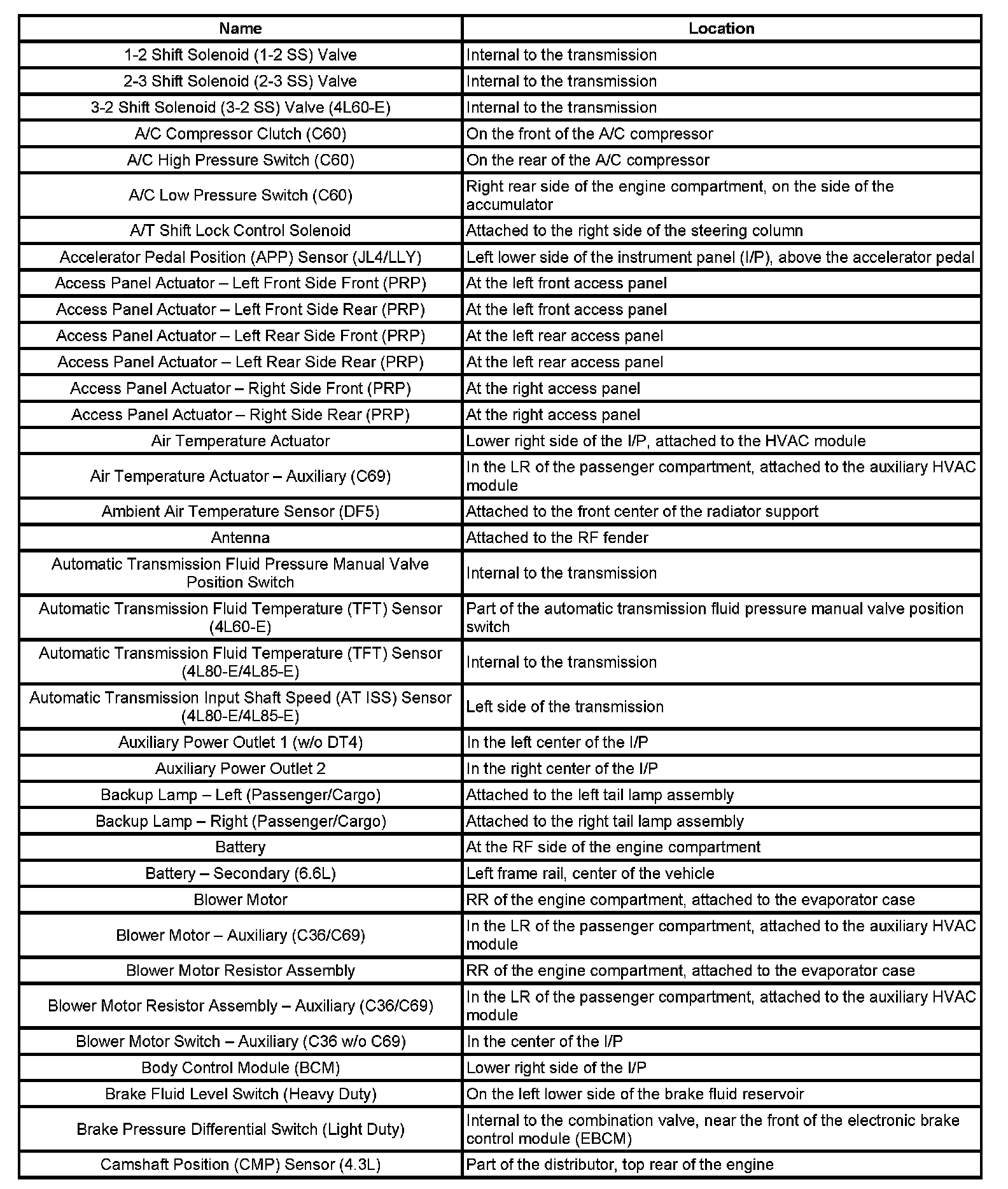

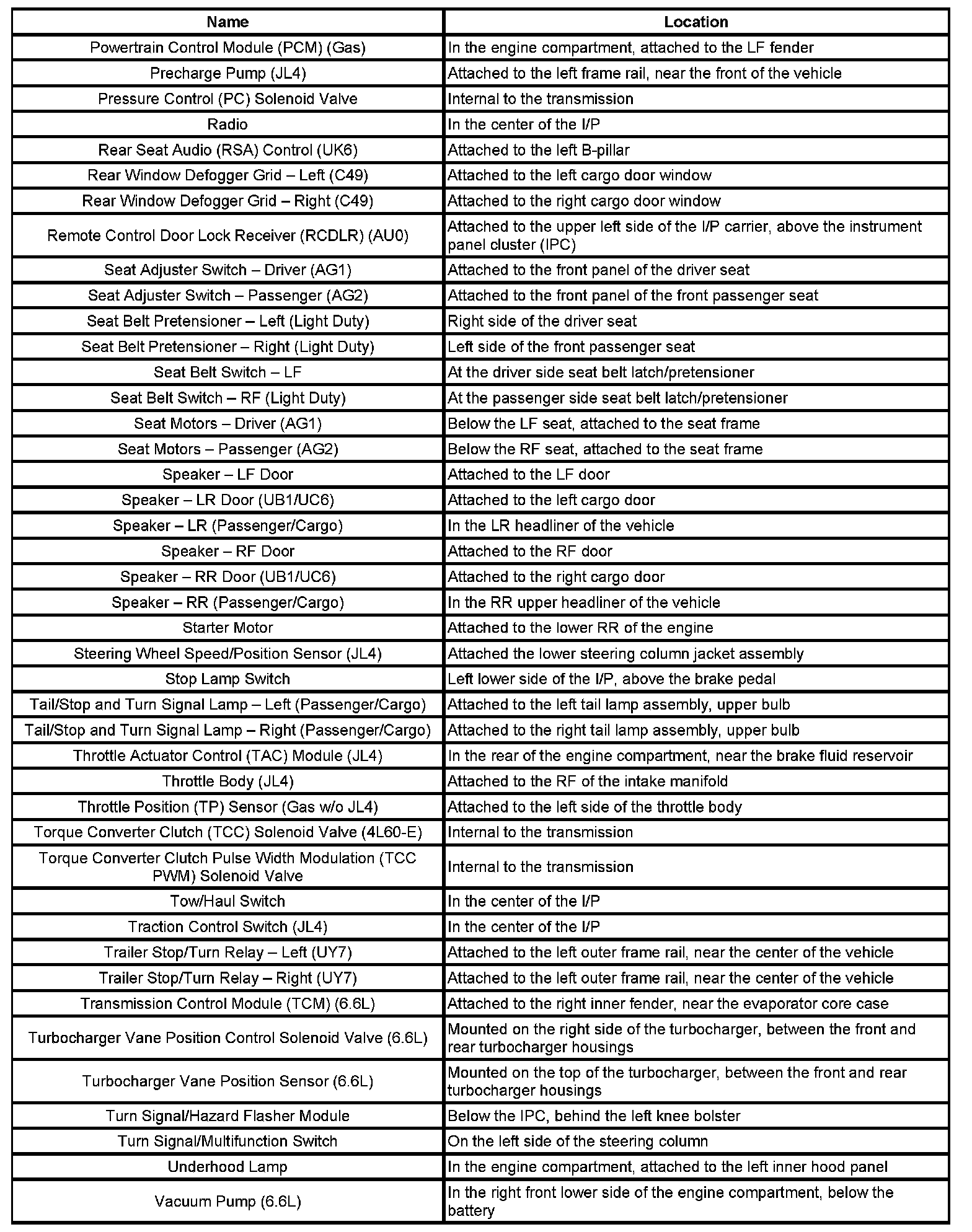

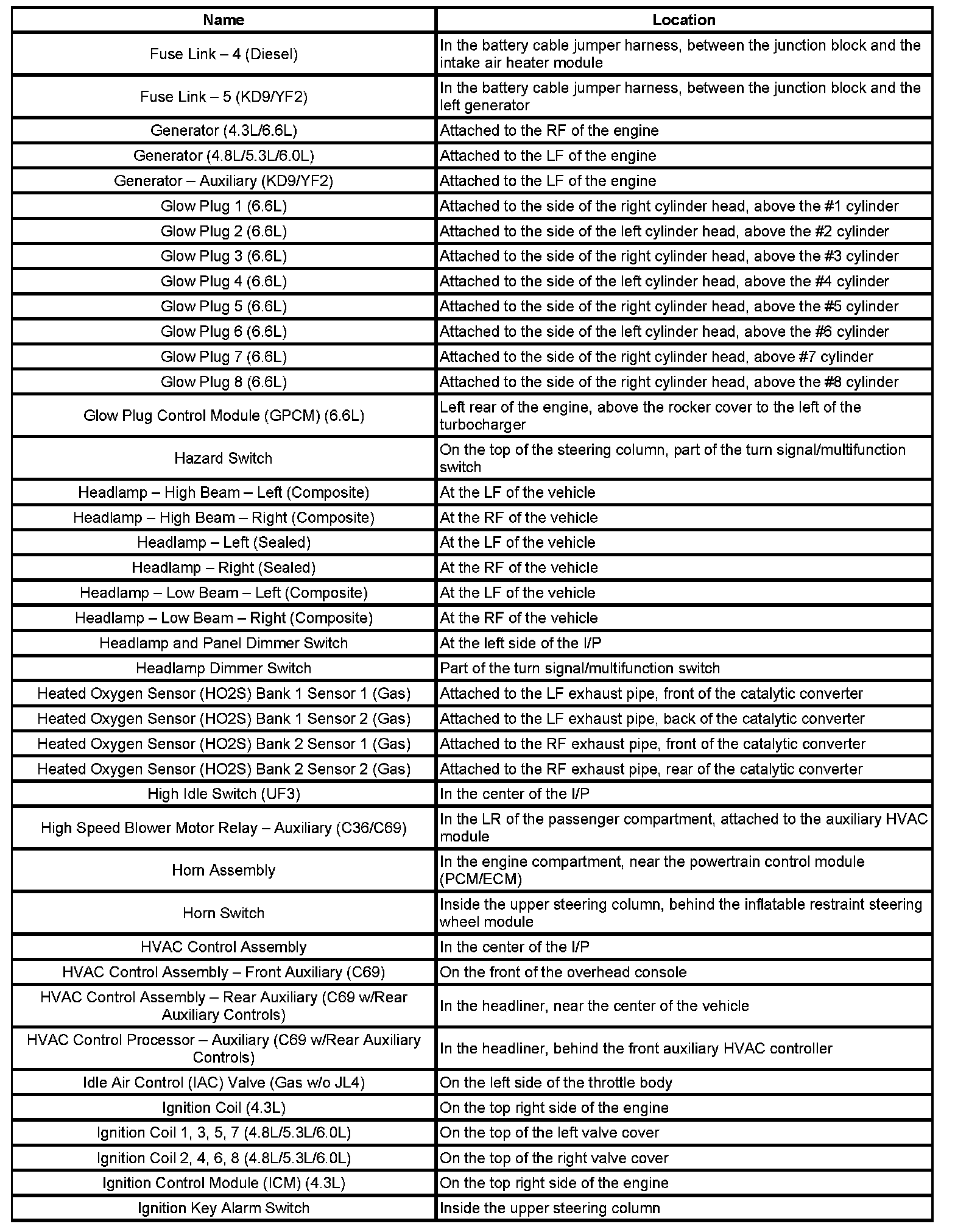

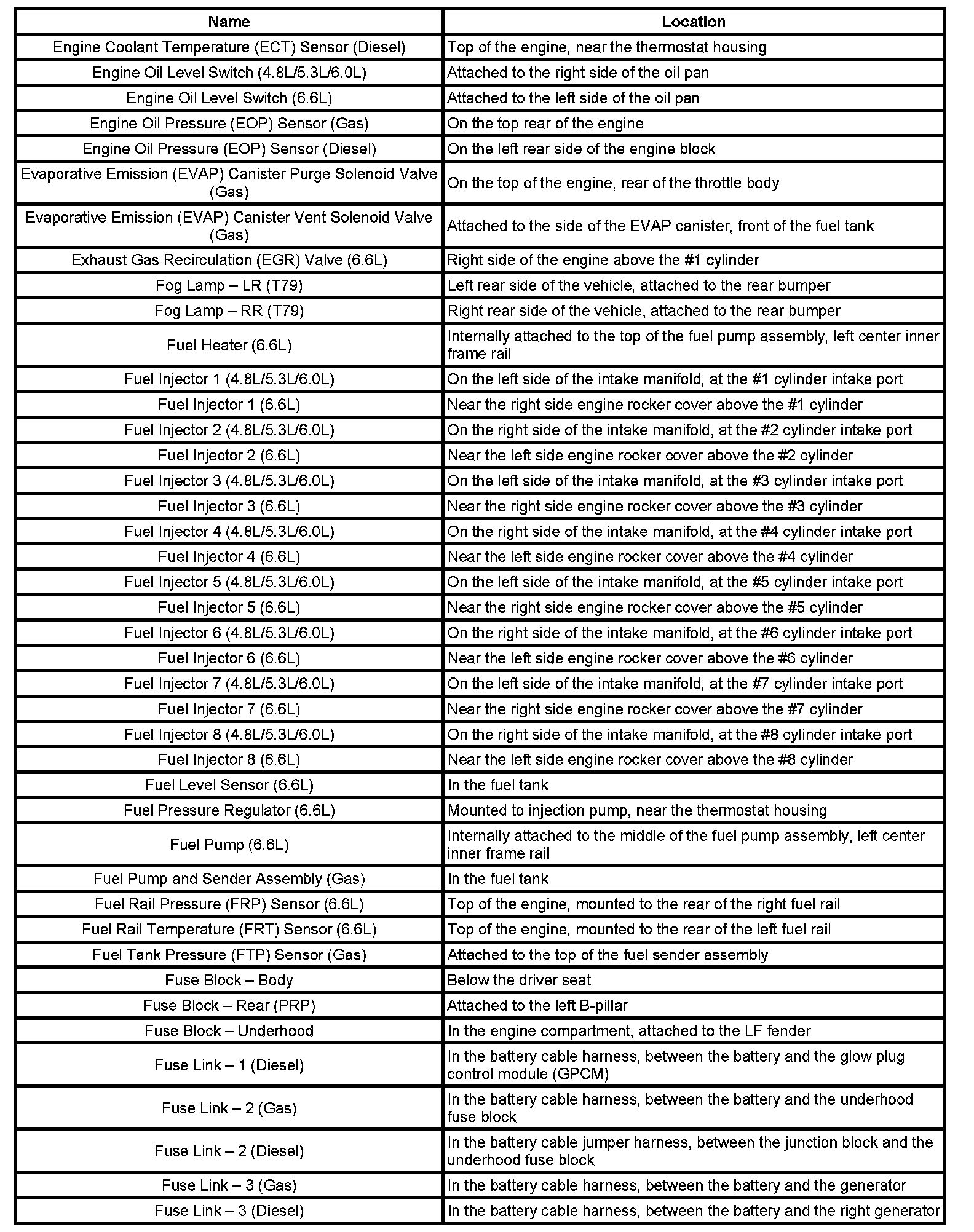

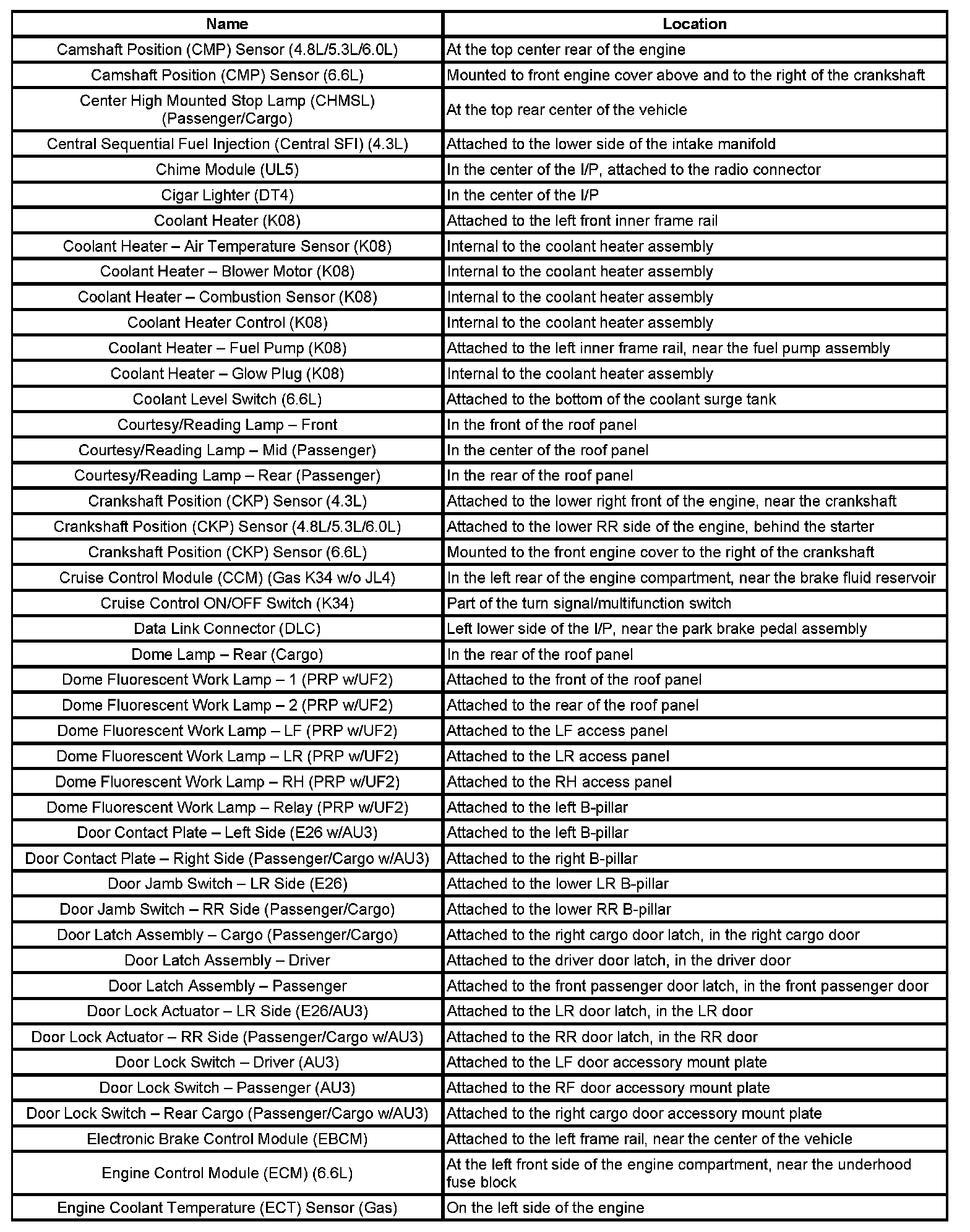

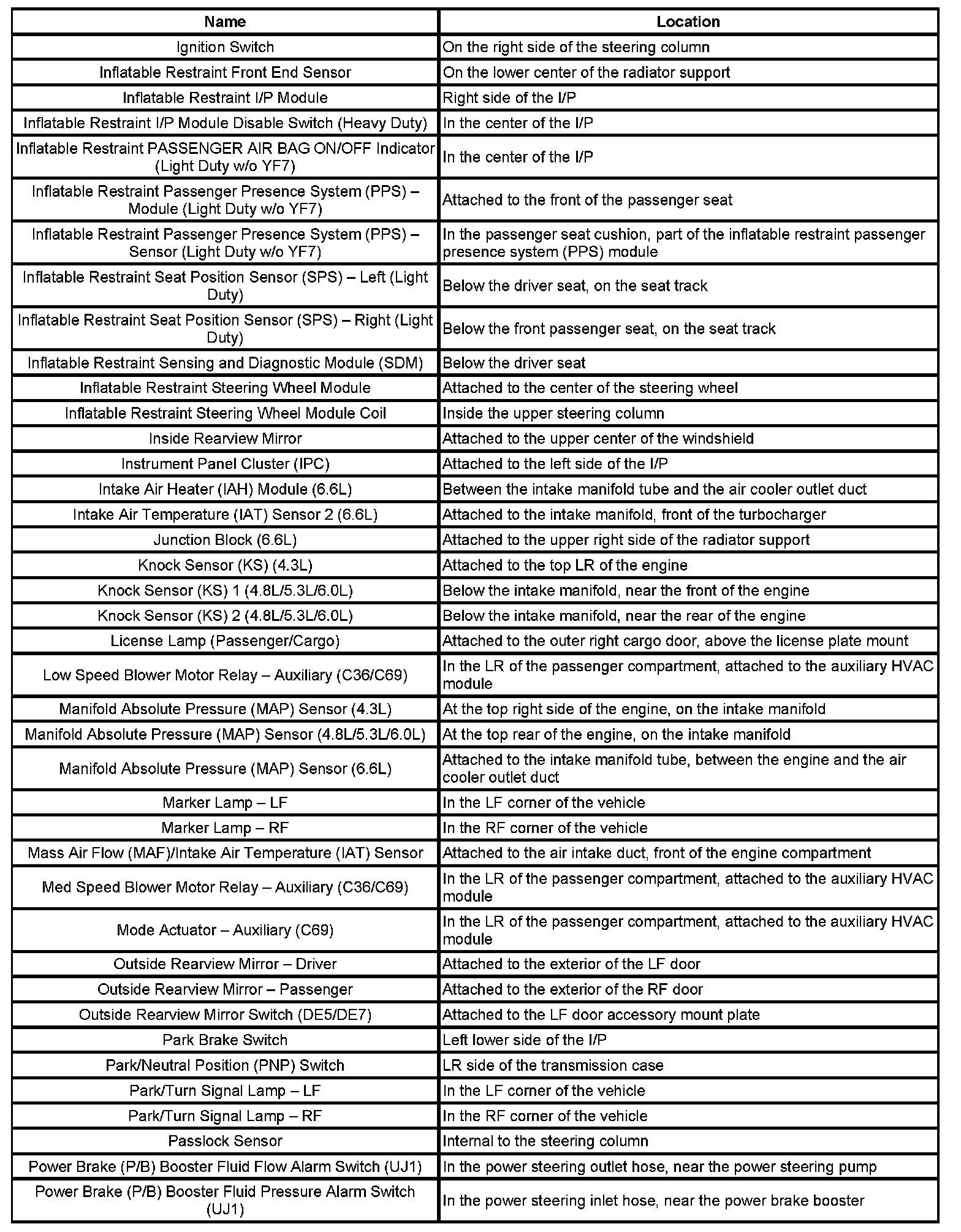

Components
1-2 Sh - Ca:
Ca - En:
En - Fu:
Fu - Ig:
Ig - Po:
Po - Va:
Va - Ya:
