Removal Procedure

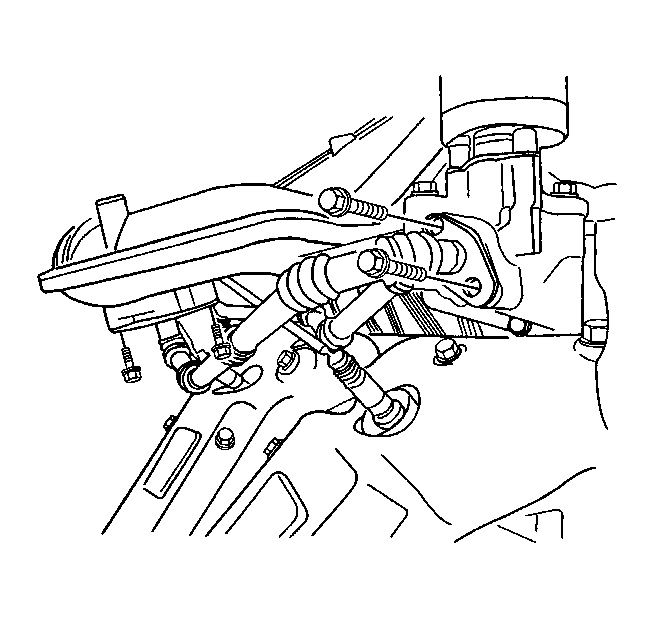

    Fig 1: View Of EGR Valve Pipe And Retaining Bolts
    GM1375351Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake exhaust gas recirculation (EGR) pipe retaining bolts and the intake EGR pipe.
  2. Remove the intake EGR pipe gasket.
