Removal Procedure

  1. Drain the fuel from the fuel filter. Refer to Water-in-Fuel Draining Procedure .
  2. Disconnect the electrical connectors.

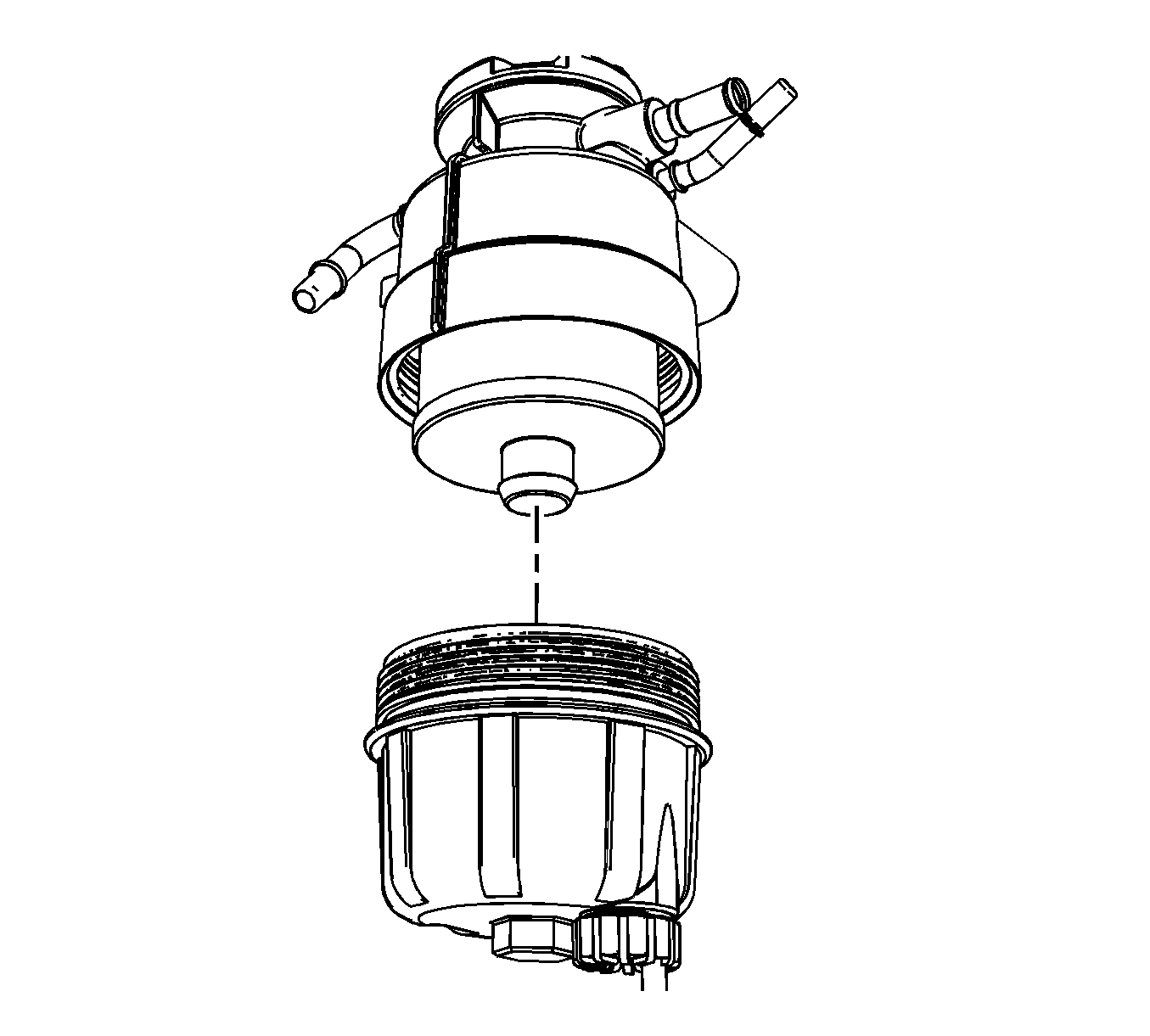

    3. Fig 1: Diesel Fuel Conditioning Module Lower Assembly
    GM1665456Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the diesel fuel conditioning module lower assembly.
