Fuel Controls - EVAP Controls Schematics

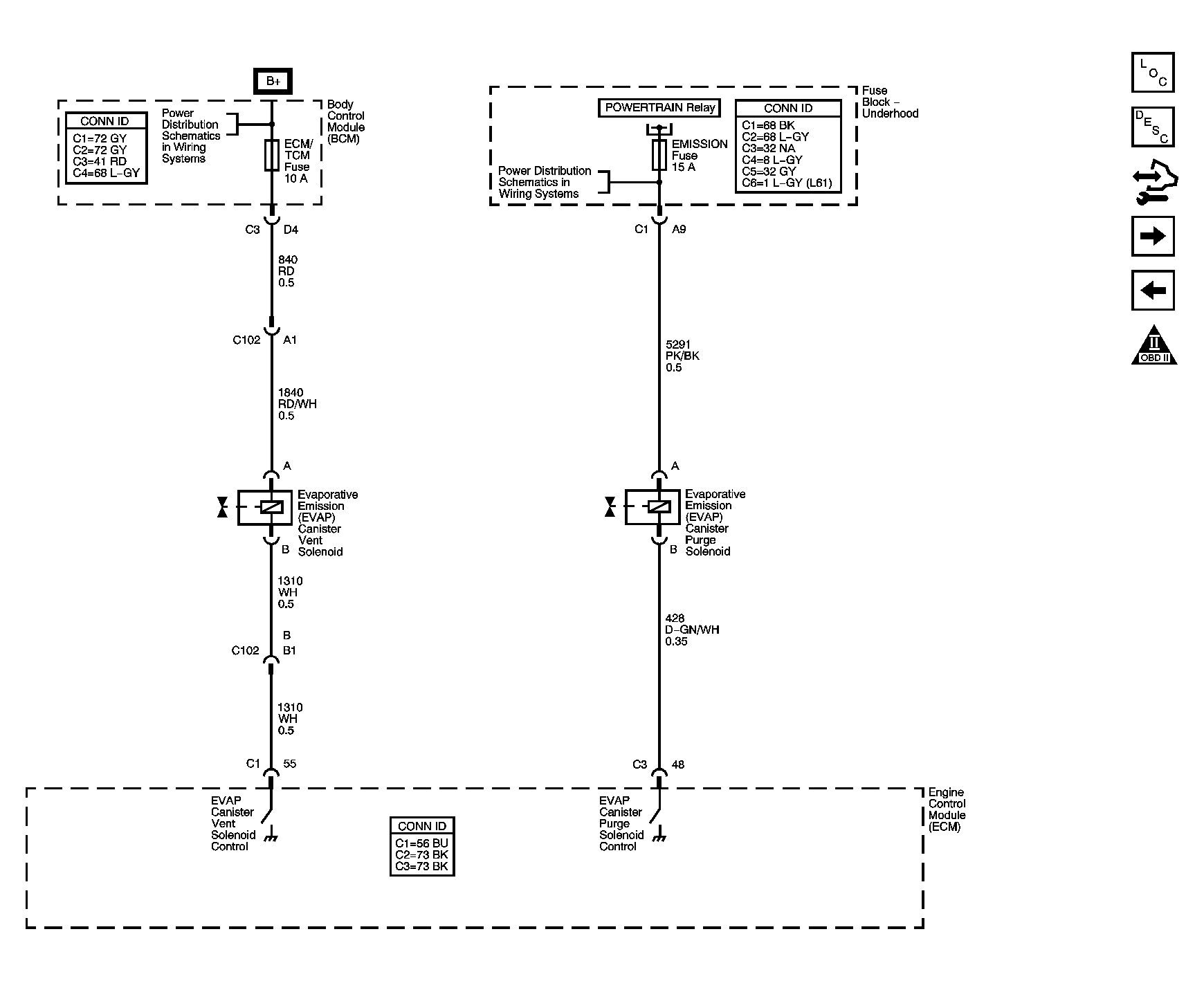

Fig 1: Fuel Controls - EVAP Controls Schematics
GM1575988Courtesy of GENERAL MOTORS CORP.
