Controlled/Monitored Subsystem References Schematics

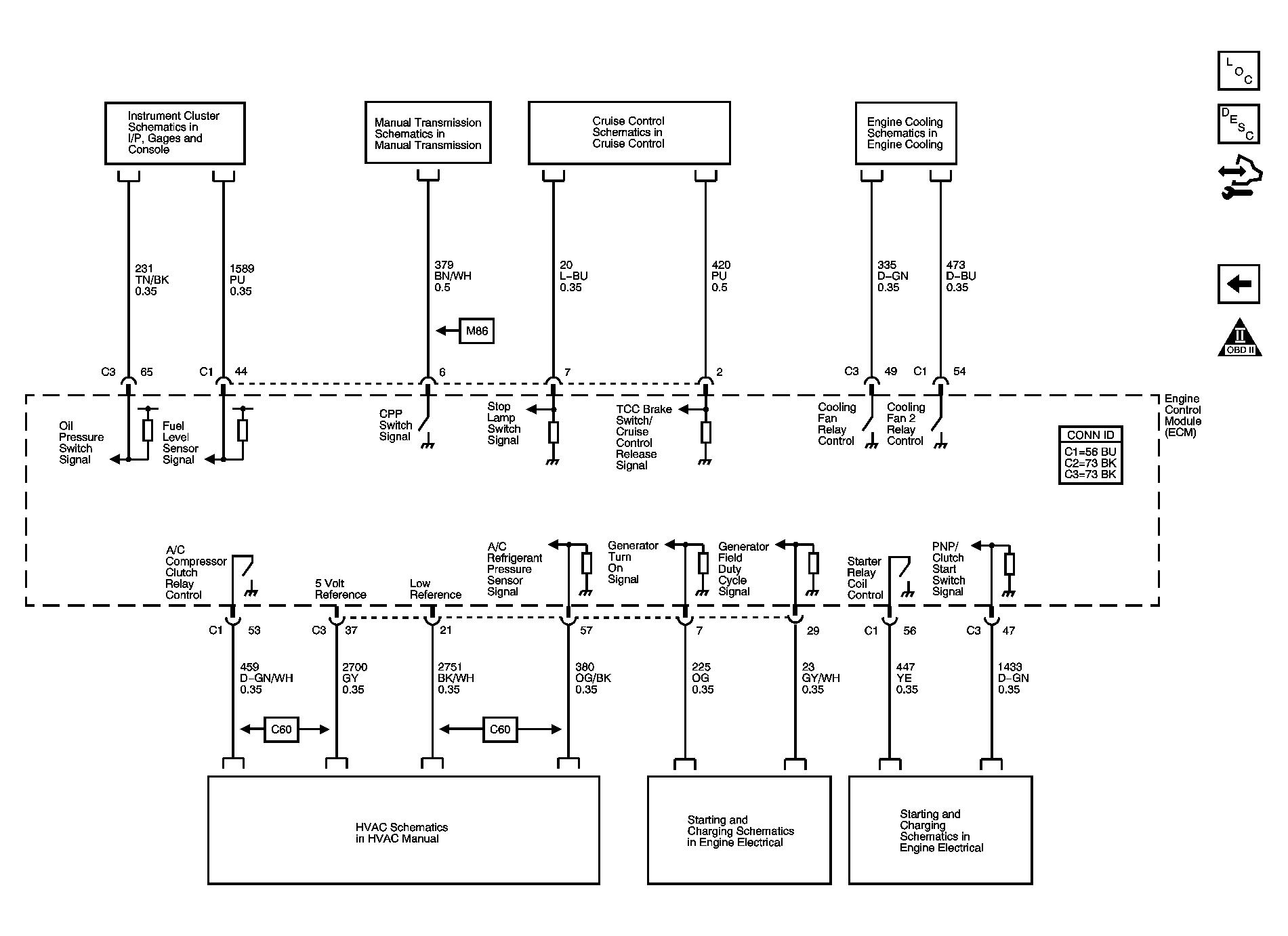

Fig 1: Controlled/Monitored Subsystem References Schematics
GM1575992Courtesy of GENERAL MOTORS CORP.
