Home >> Chevrolet >> 2006 >> Cobalt L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> Powertrain Control Module (PCM) C3

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

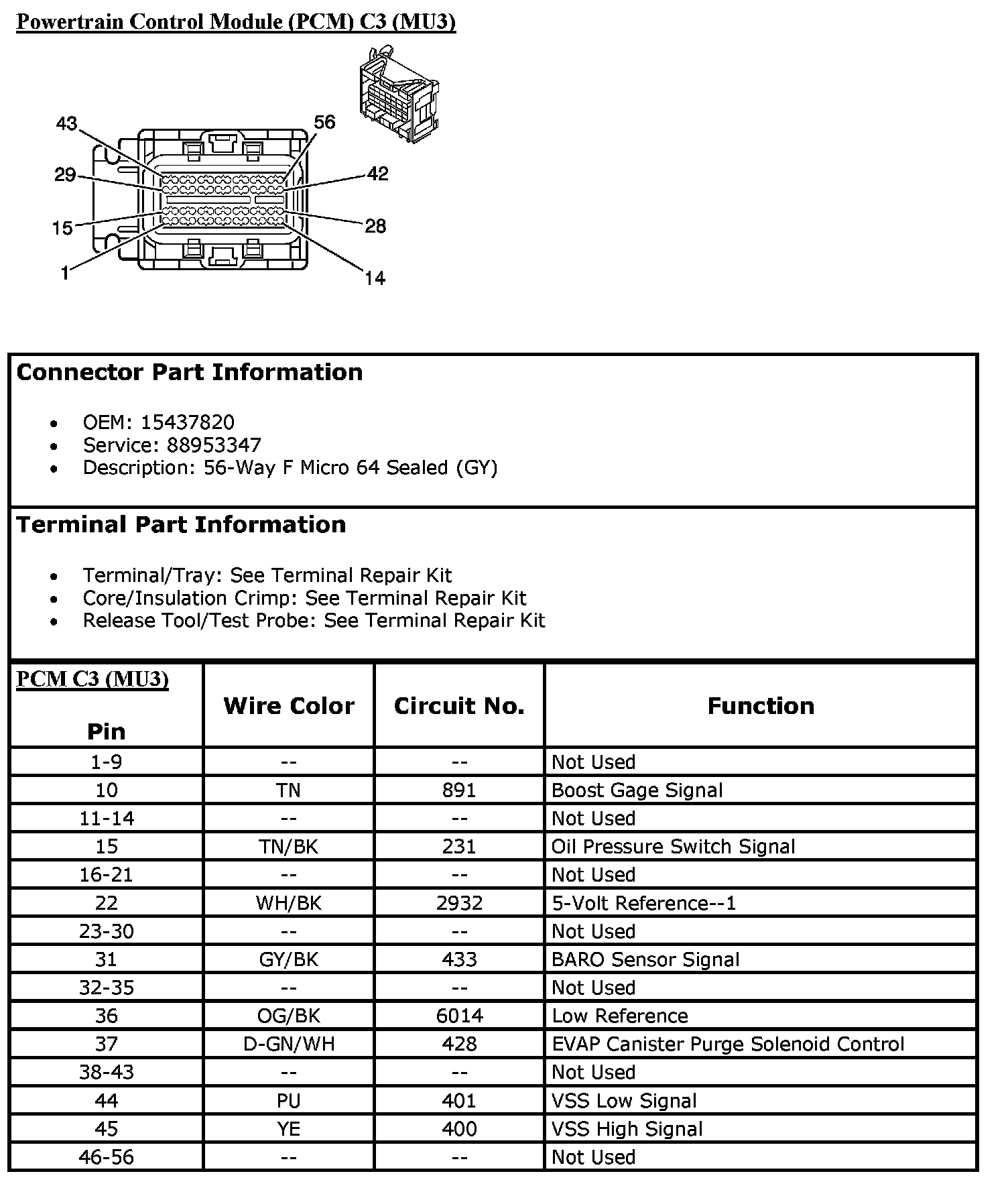

Powertrain Control Module (PCM) C3
