Cooling System Component Views

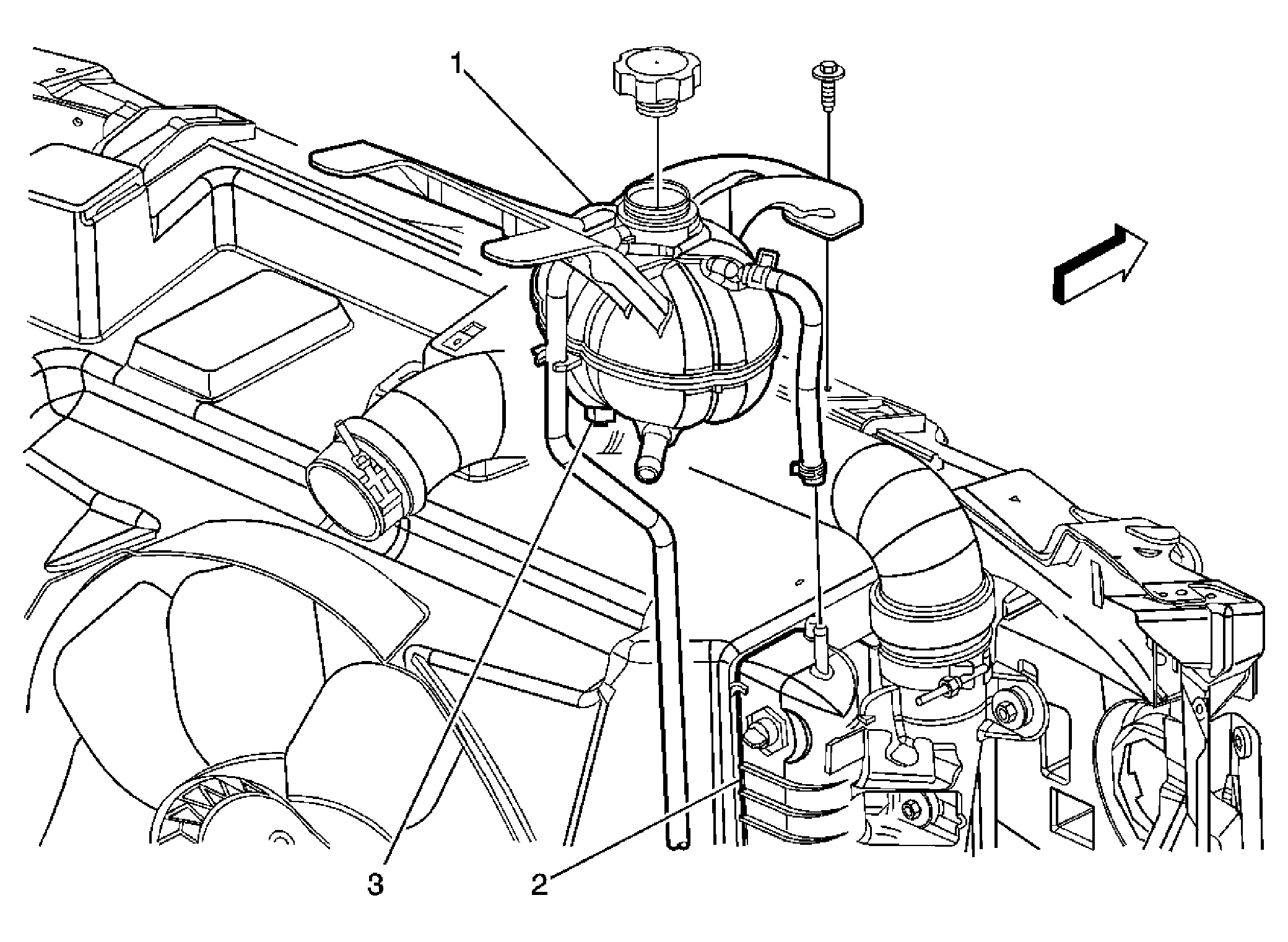

Fig 1: RF of the Engine Compartment
GM1613293Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Surge Tank
2 Radiator
3 Coolant Level Switch
