Data Link Communications Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

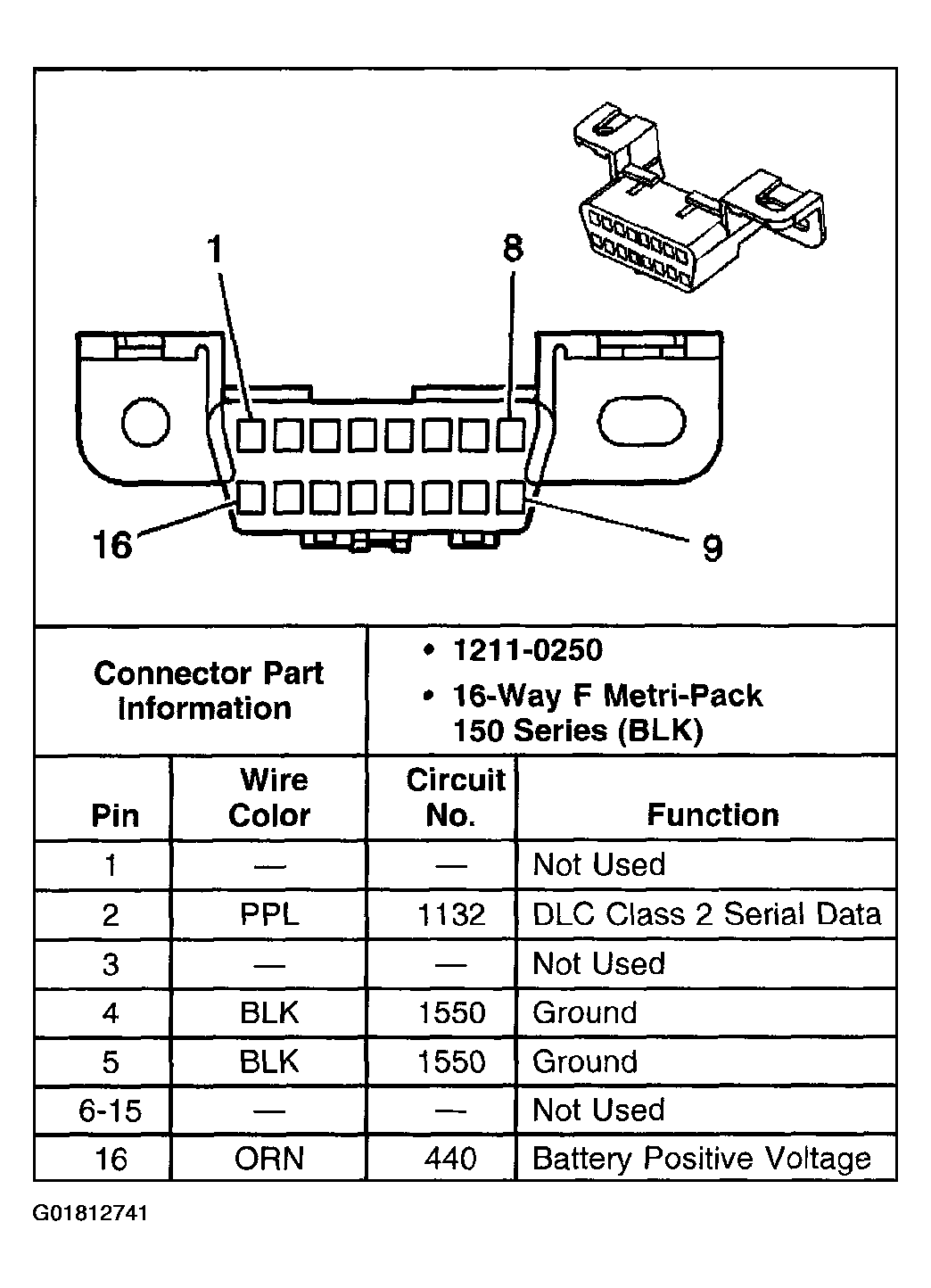

Fig 1: Data Link Connector (DLC) Connector End View

Courtesy of GENERAL MOTORS CORP.

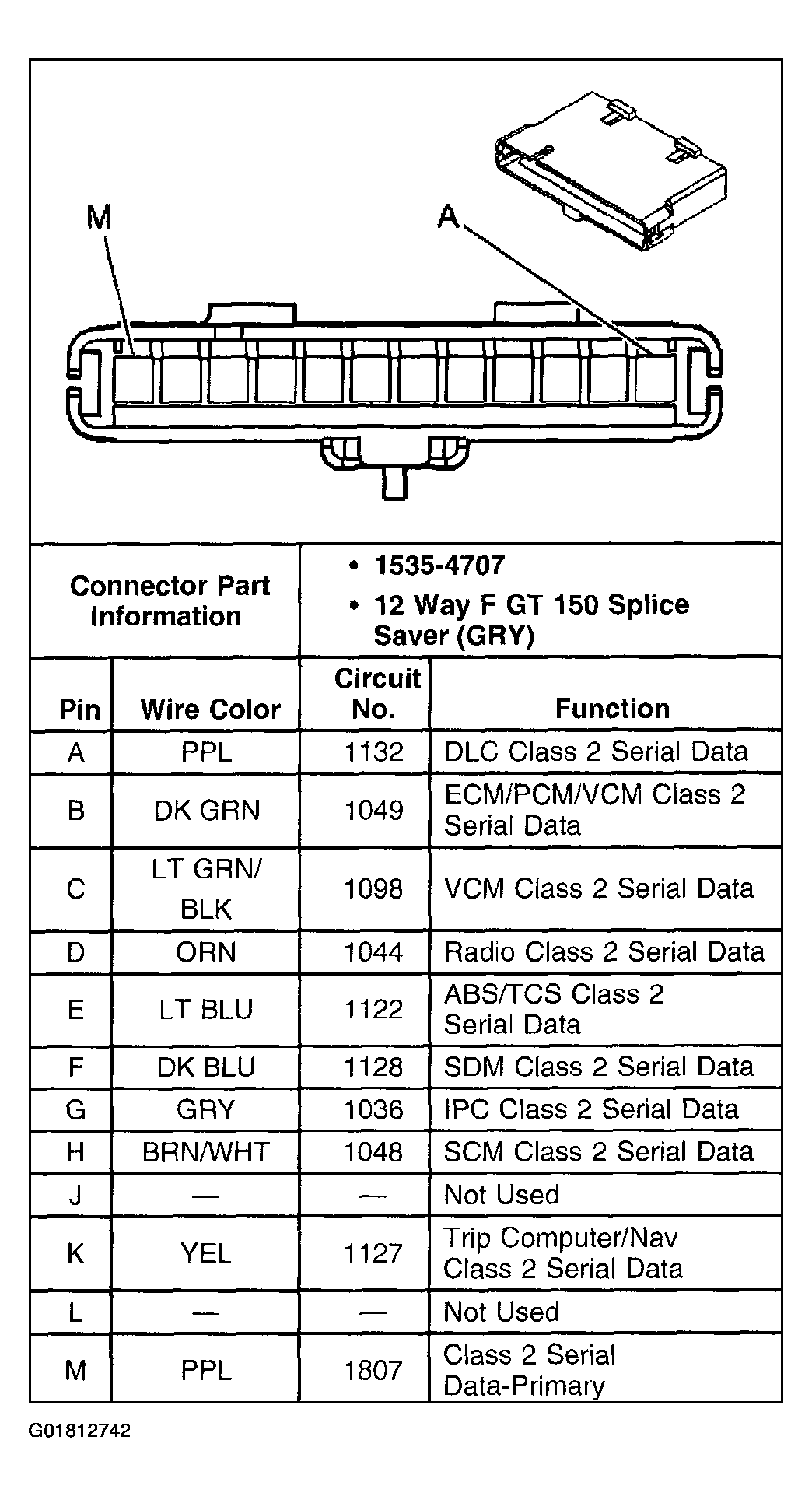

Fig 2: Splice Pack SP205 Connector End View

Courtesy of GENERAL MOTORS CORP.
