Cruise Control Schematics

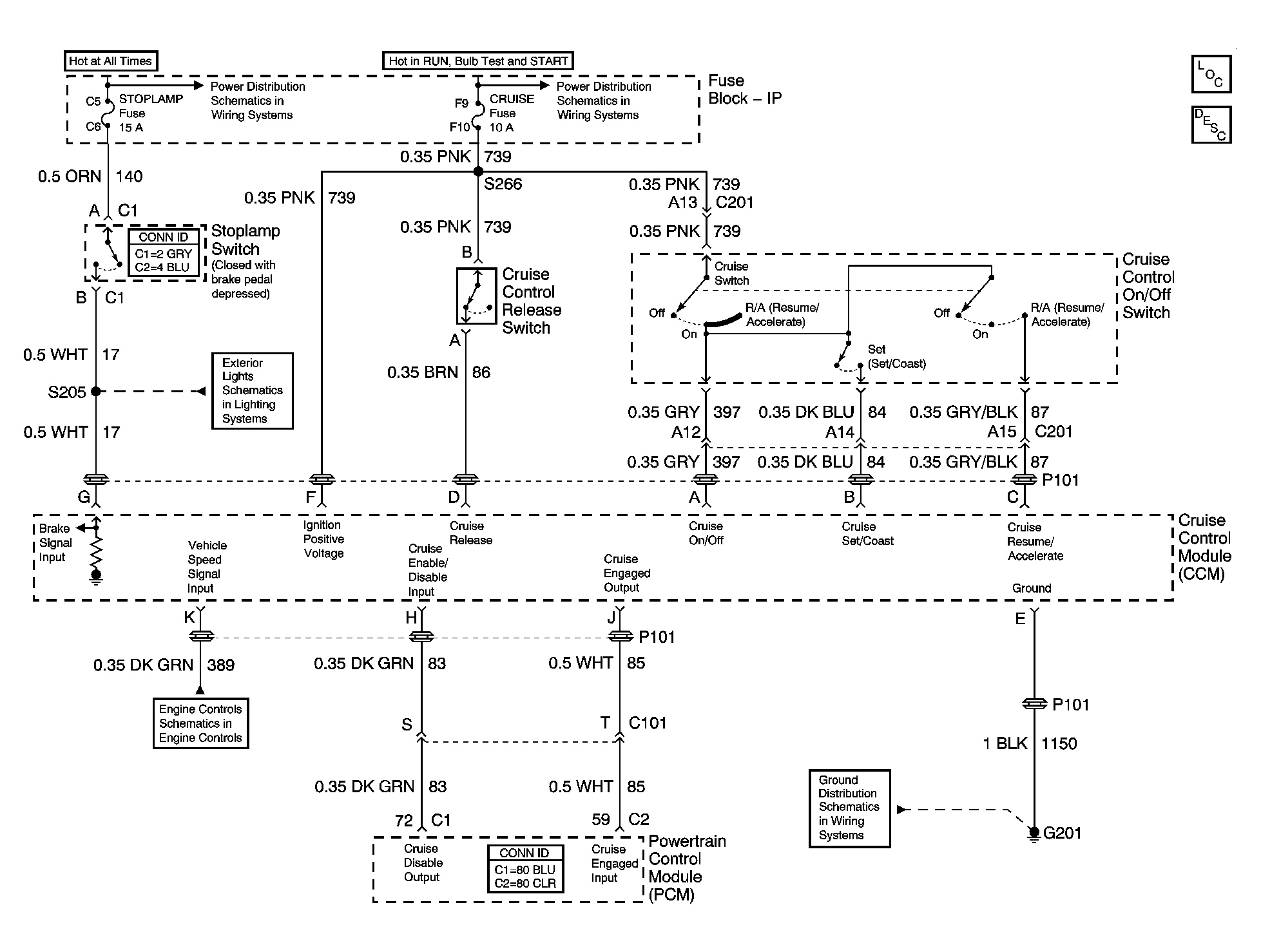

Fig 1: Identifying Cruise Control Schematics
Courtesy of GENERAL MOTORS CORP.
