Connector Views

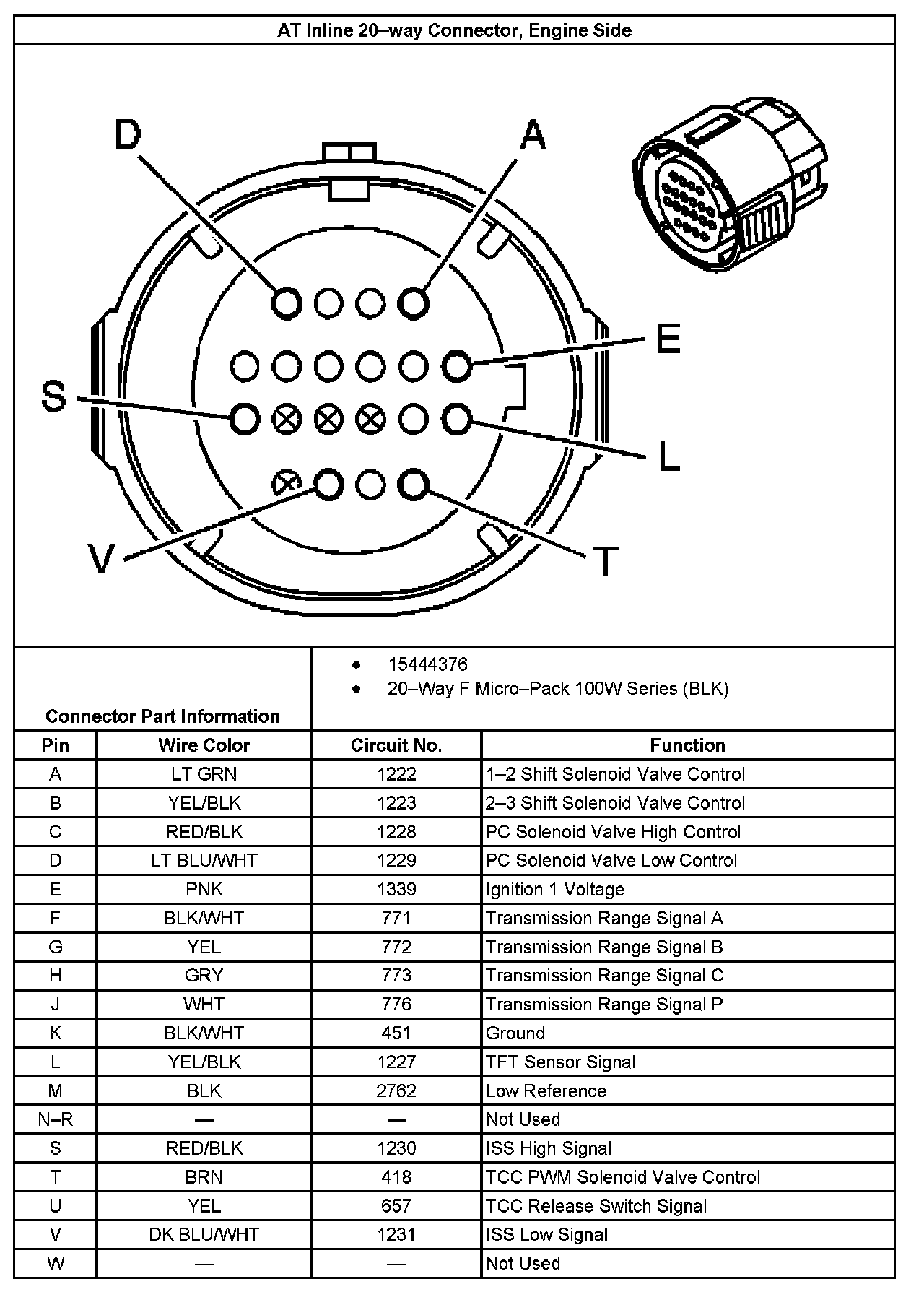

AT Inline 20-Way Connector, Engine Side:

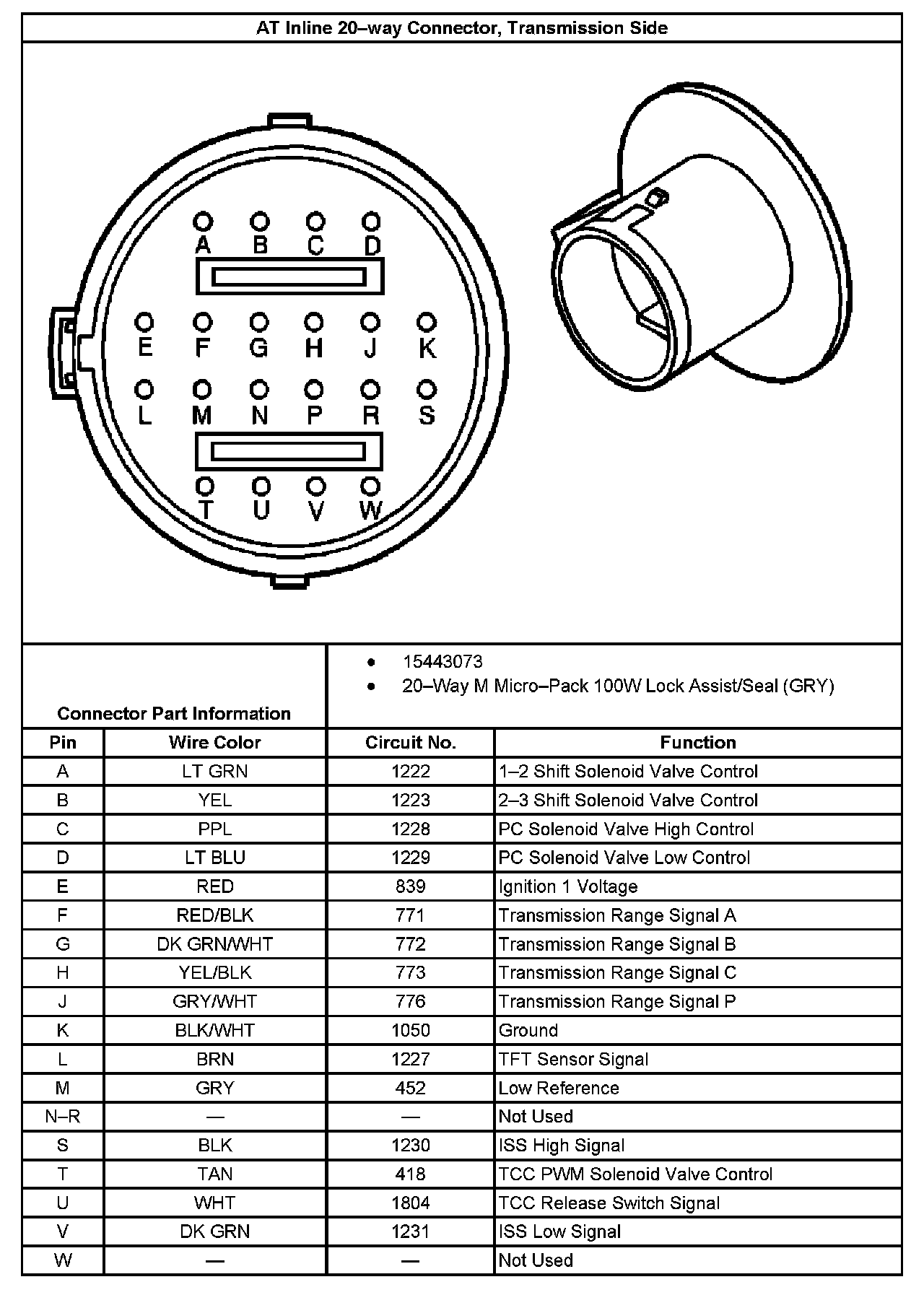

AT Inline 20-Way Connector, Transmission Side:

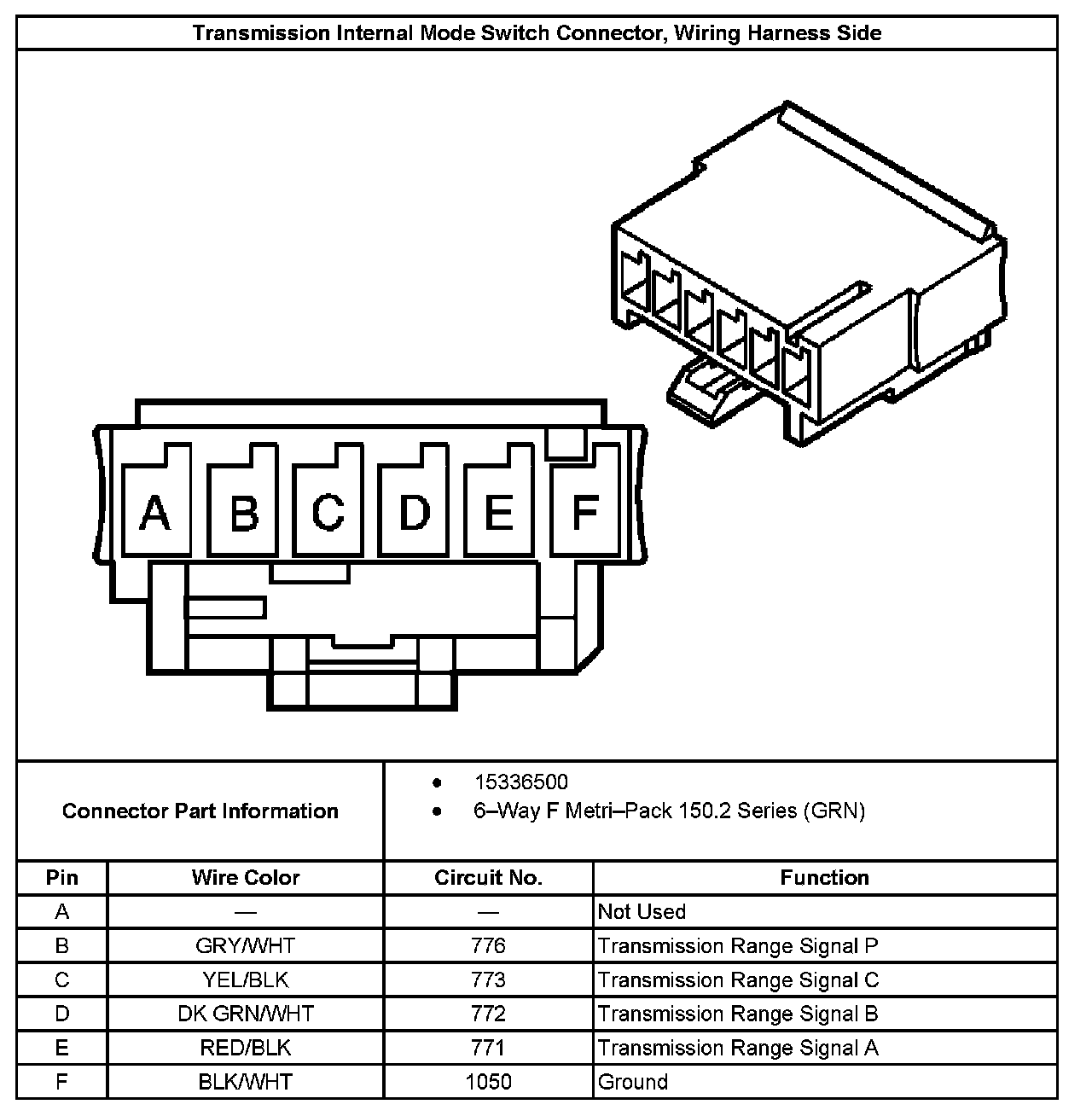

Transmission Internal Mode Switch Connector, Wiring Harness Side:

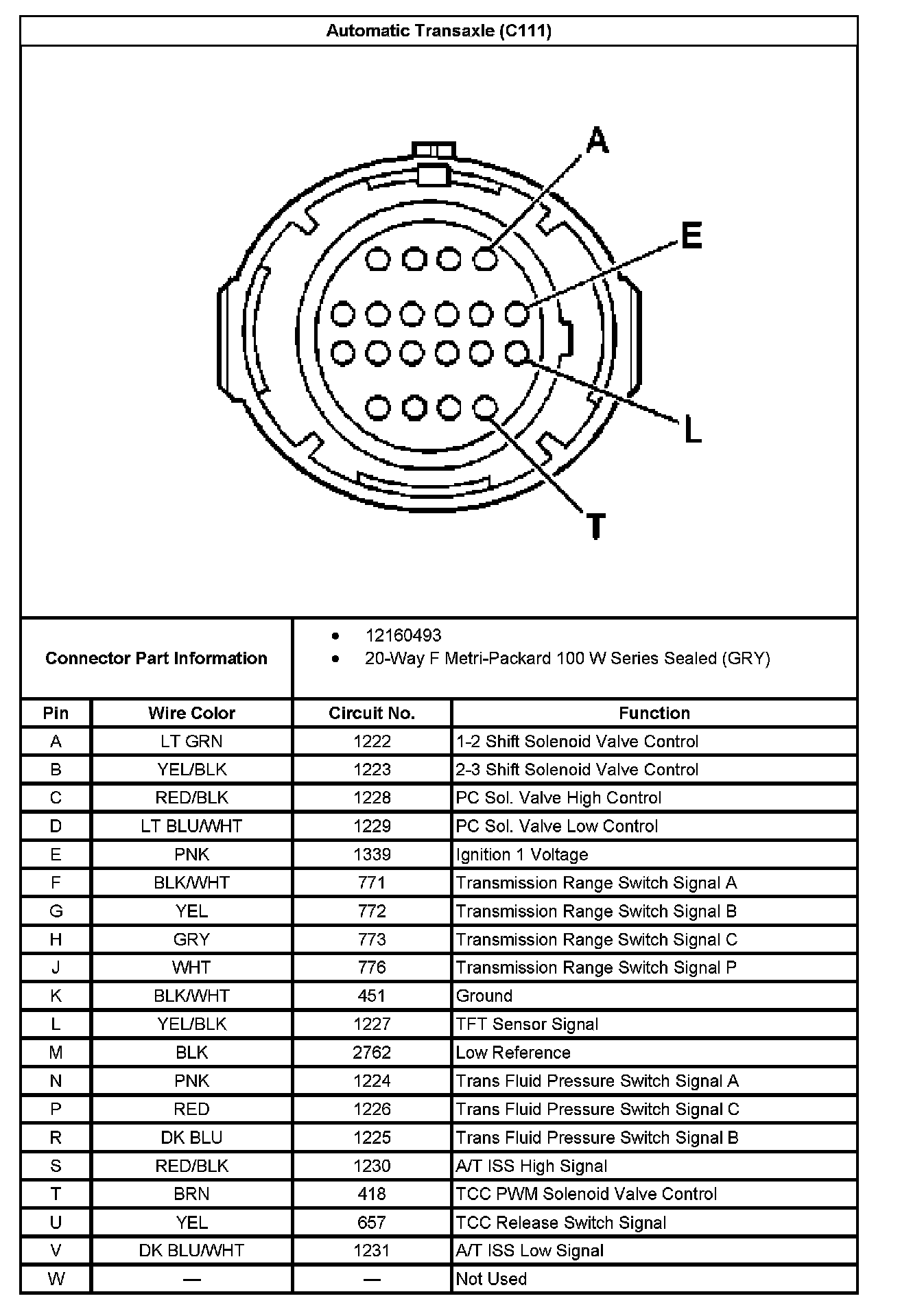

Automatic Transaxle (C111):
