Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

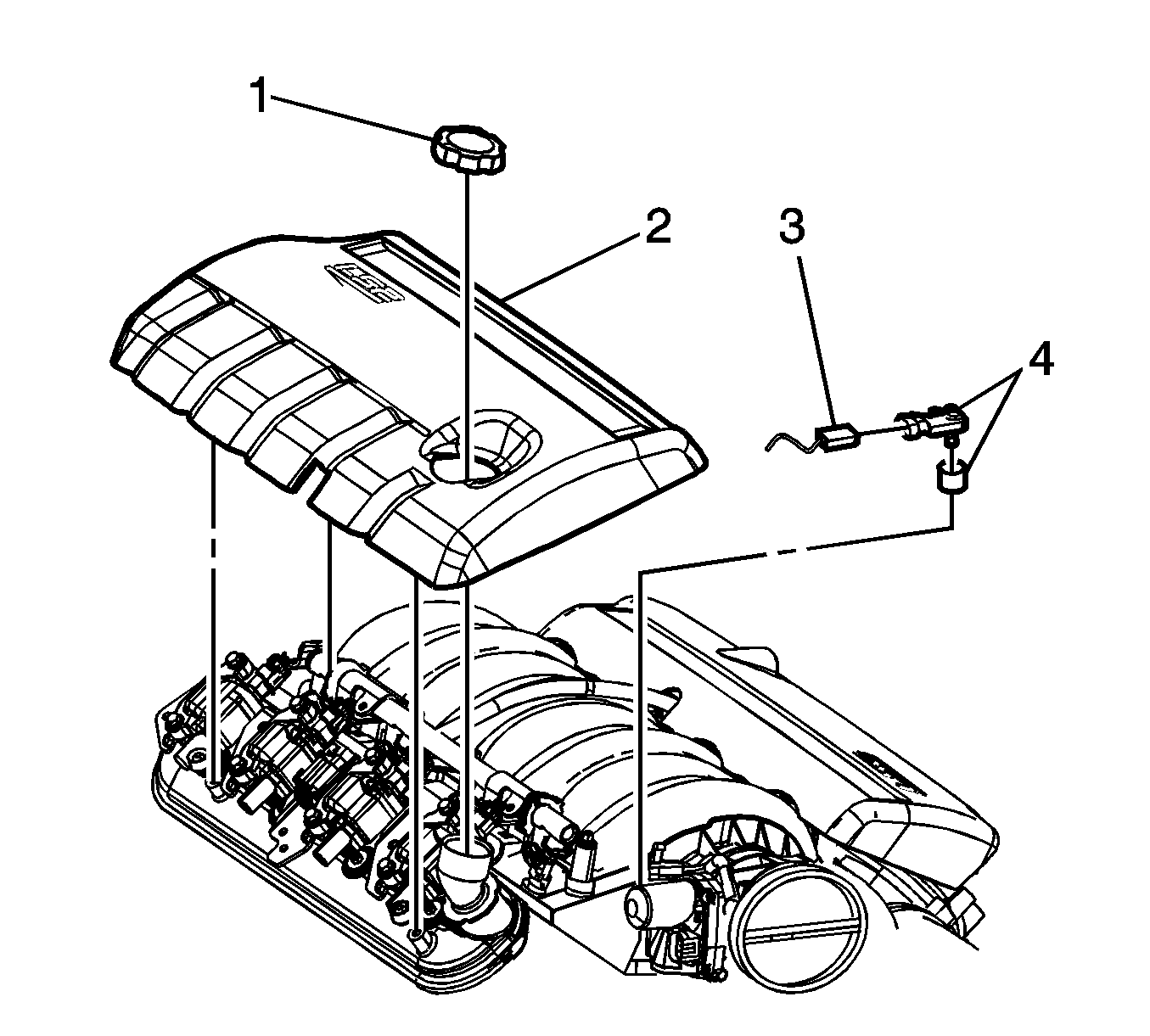

    Fig 1: Oil Filler Cap, Right Sight Shield, MAP Sensor & Electrical Connector
    GM1464034Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filler cap (1).
  2. Remove the right engine sight shield (2).
  3. Remove the manifold absolute pressure (MAP) sensor (4).
  4. Disconnect the electrical connector (3) for the MAP sensor.
