ABS Schematics

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

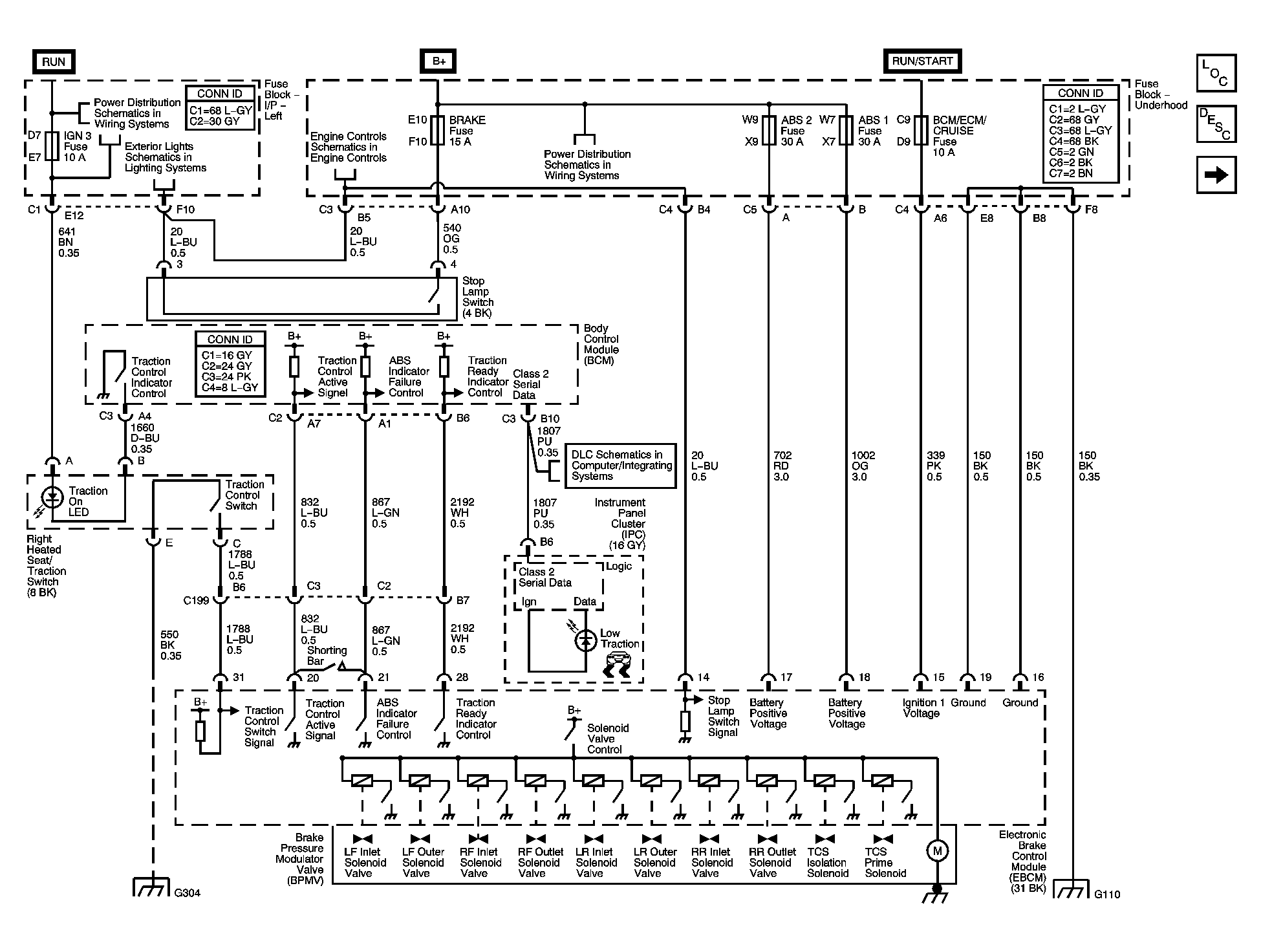

Fig 1: EBCM Power, Ground, Serial Data, and Switches
GM1467889Courtesy of GENERAL MOTORS CORP.

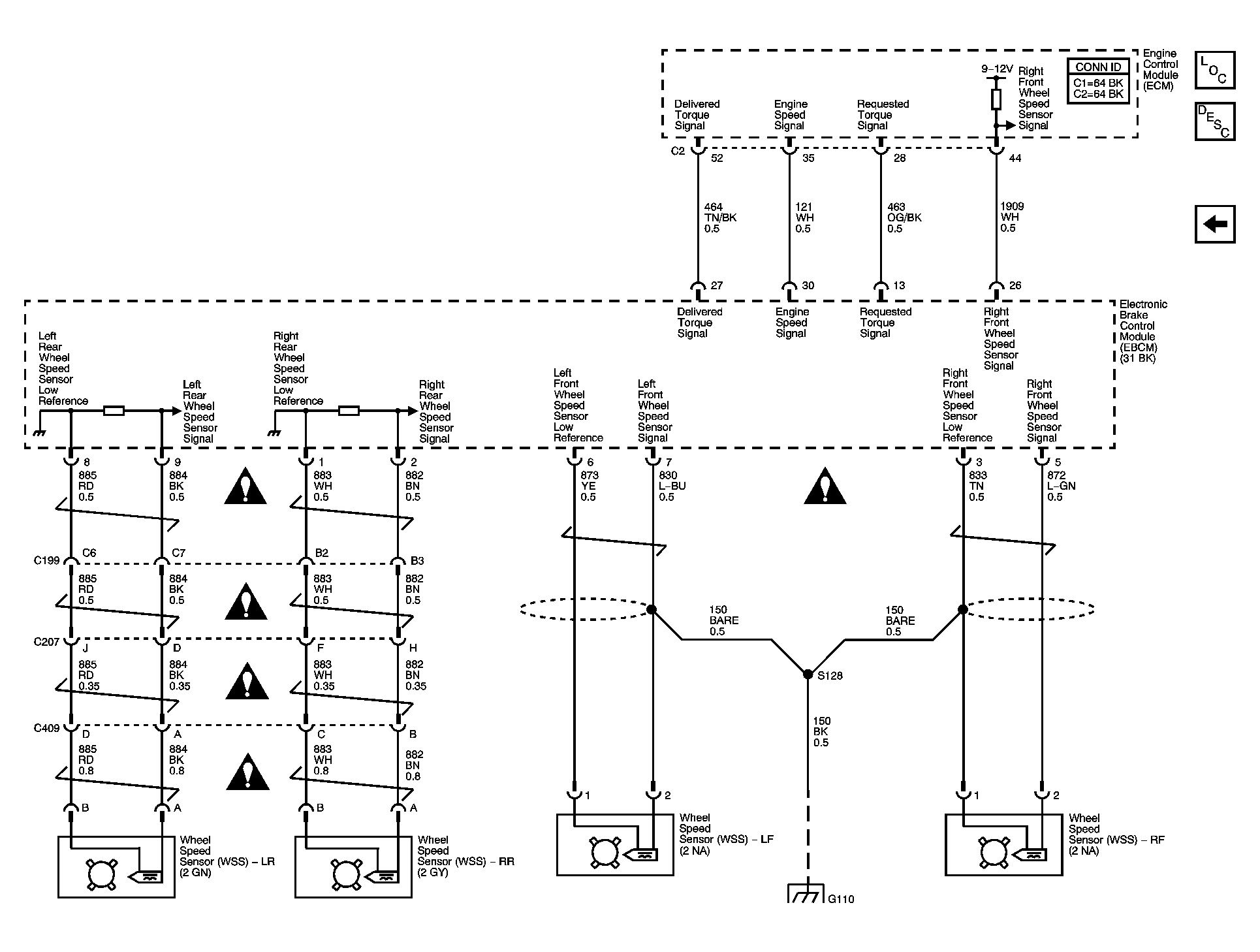

Fig 2: Wheel Speed Sensors
GM1485487Courtesy of GENERAL MOTORS CORP.
