Outside Mirror Schematics

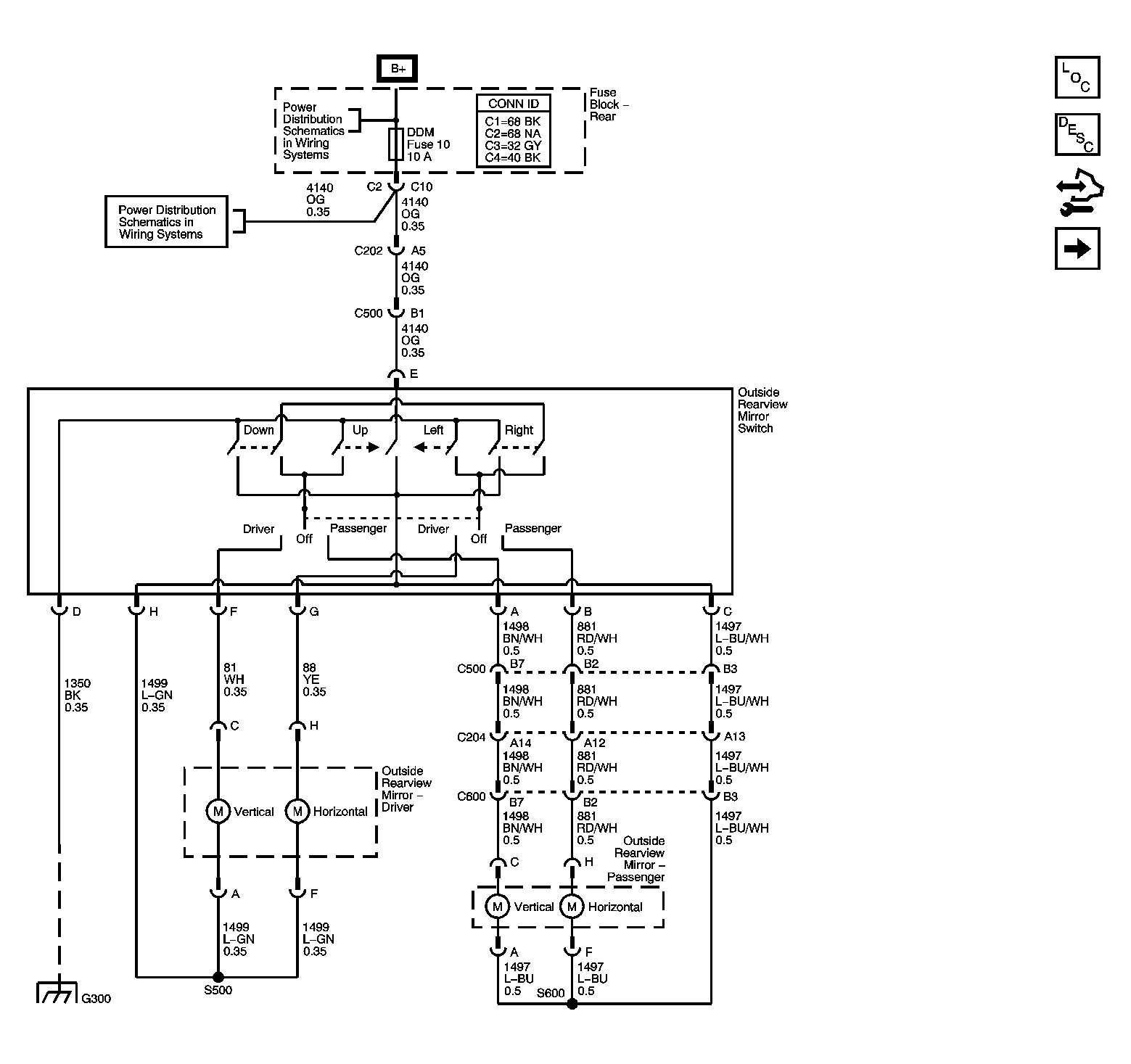

Fig 1: Power Mirrors Schematic
GM1458637Courtesy of GENERAL MOTORS CORP.
Fig 2: Heated Mirrors Schematic
GM1458639Courtesy of GENERAL MOTORS CORP.
