Removal Procedure

    Fig 1: Identifying PCV Clean Air Tube Clamp
    GM1459590Courtesy of GENERAL MOTORS CORP.
  1. Reposition the positive crankcase ventilation (PCV) clean air tube clamp.
  2. Remove the PCV clean air tube from the outlet duct.

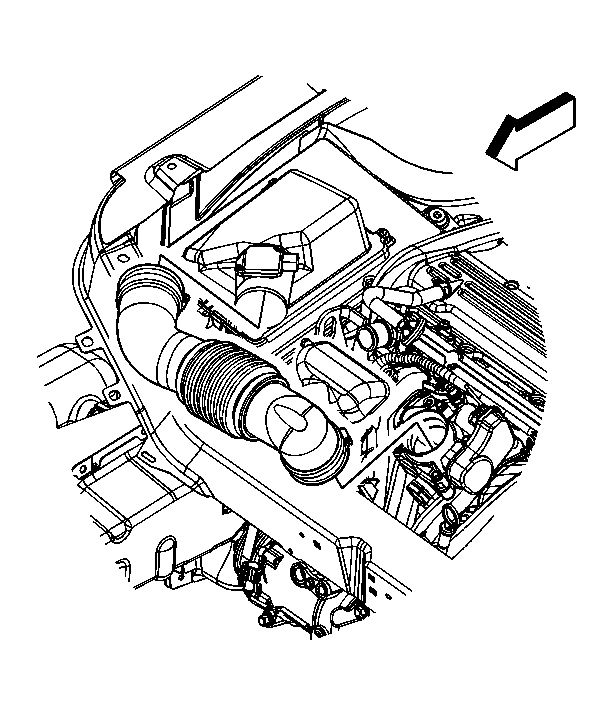

    3. Fig 2: Identifying Outlet Air Duct
    GM1459592Courtesy of GENERAL MOTORS CORP.
  3. Loosen the outlet air duct clamps from the air cleaner cover and the throttle body.
  4. Remove the air outlet duct from the air cleaner cover and the throttle body.
