A/T Inline 20-Way Connector End View


Automatic Transmission Inline 20-Way Connector End View

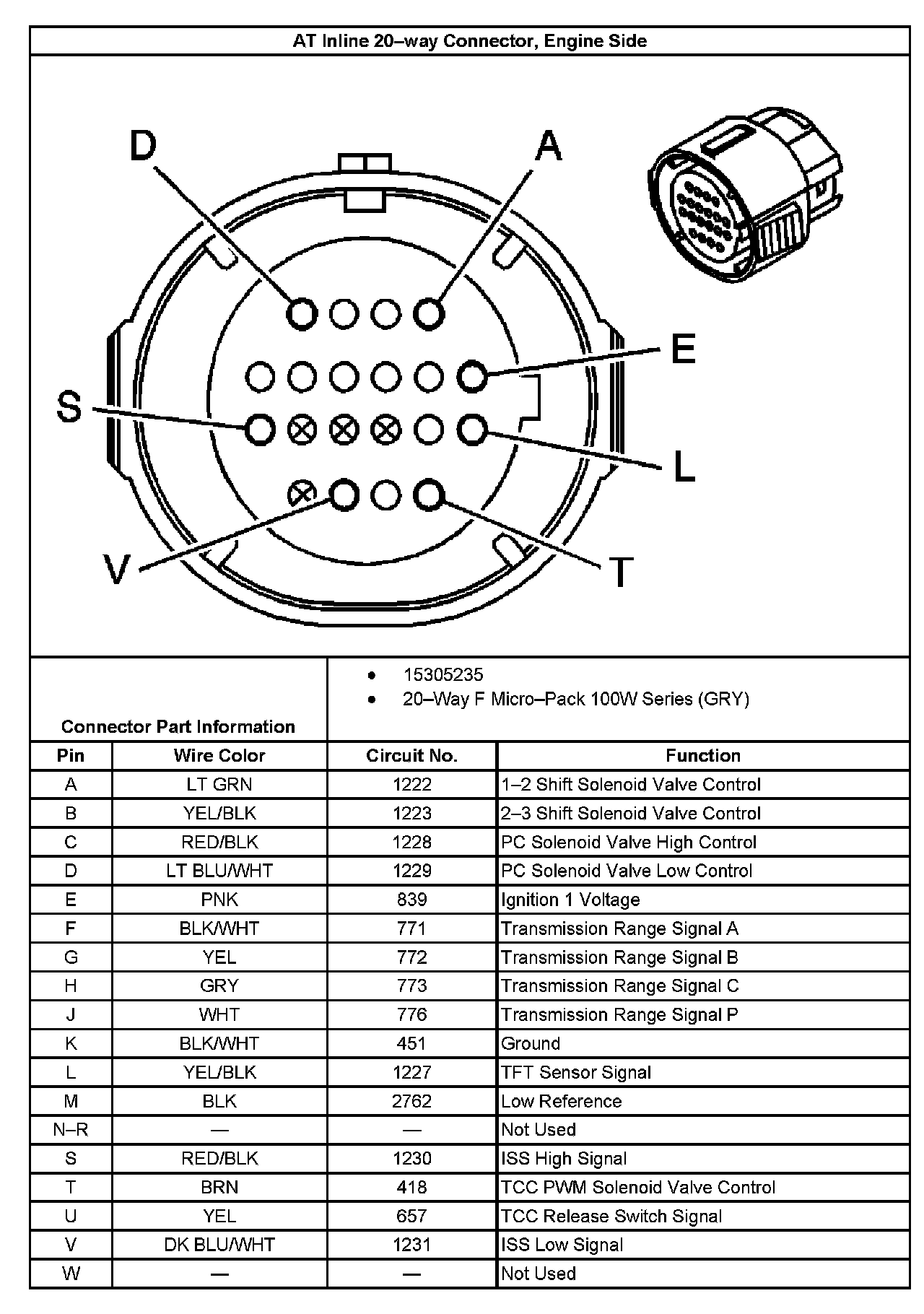

AT Inline 20-Way Connector End View, Engine Side:





AT Inline 20-Way Connector End View, Engine Side

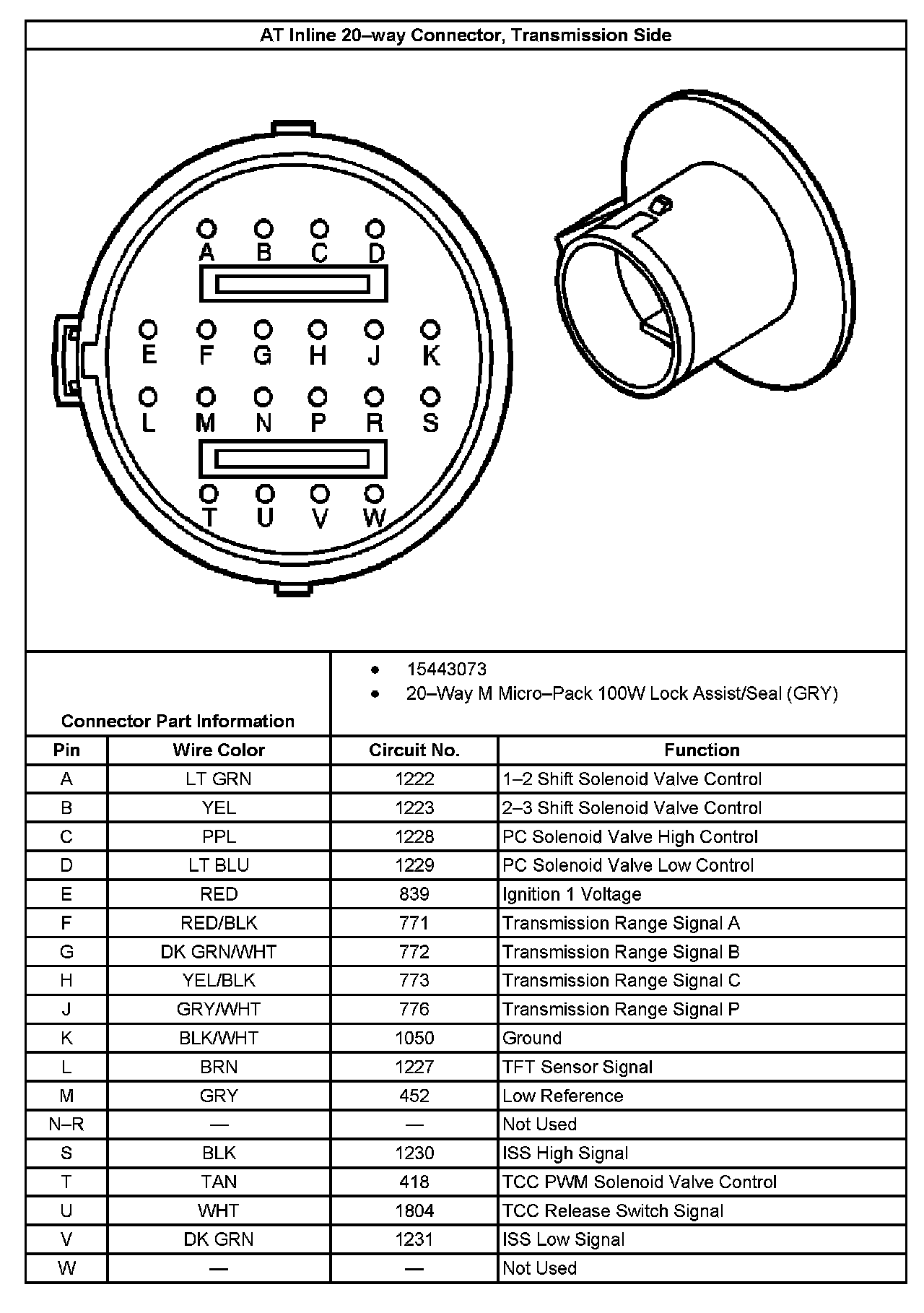

AT Inline 20-Way Connector End View, Transmission Side:





AT Inline 20-Way Connector End View, Transmission Side
