Accessory Delay Module



Retained Accessory Power (RAP) Diagram 1:

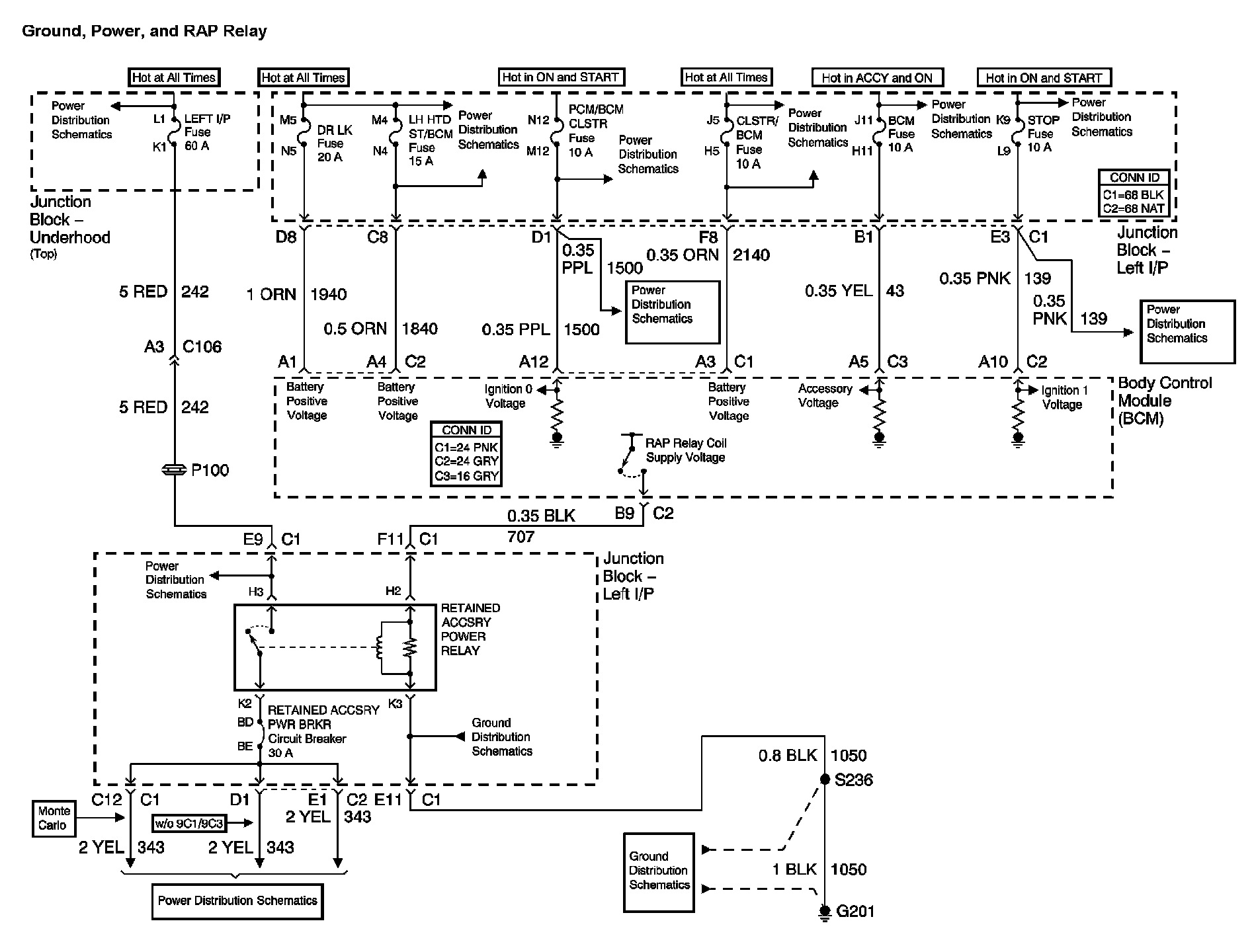

Retained Accessory Power (RAP) Diagram 2:






Location: The locations for the Connectors, Grounds, Splices, and grommets shown within these diagrams can be found via their numbers at vehicle locations. Locations
