Engine Electrical Component Views

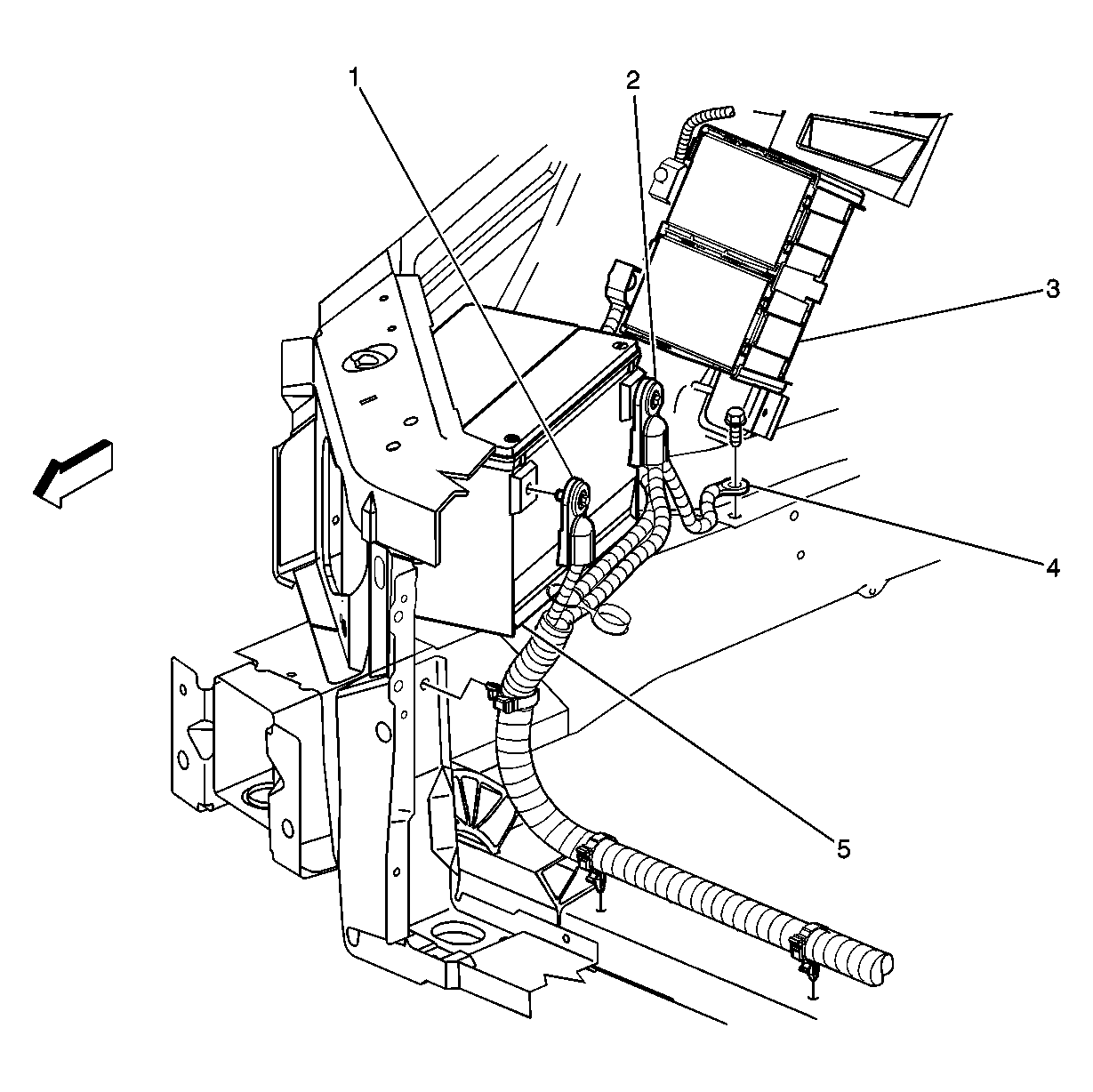

Fig 1: Right Front Of Engine Compartment Component View
GM742092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Positive Battery Cable
2 Negative Battery Cable
3 Junction Block-Underhood (Top and Bottom)
4 G100
5 Battery

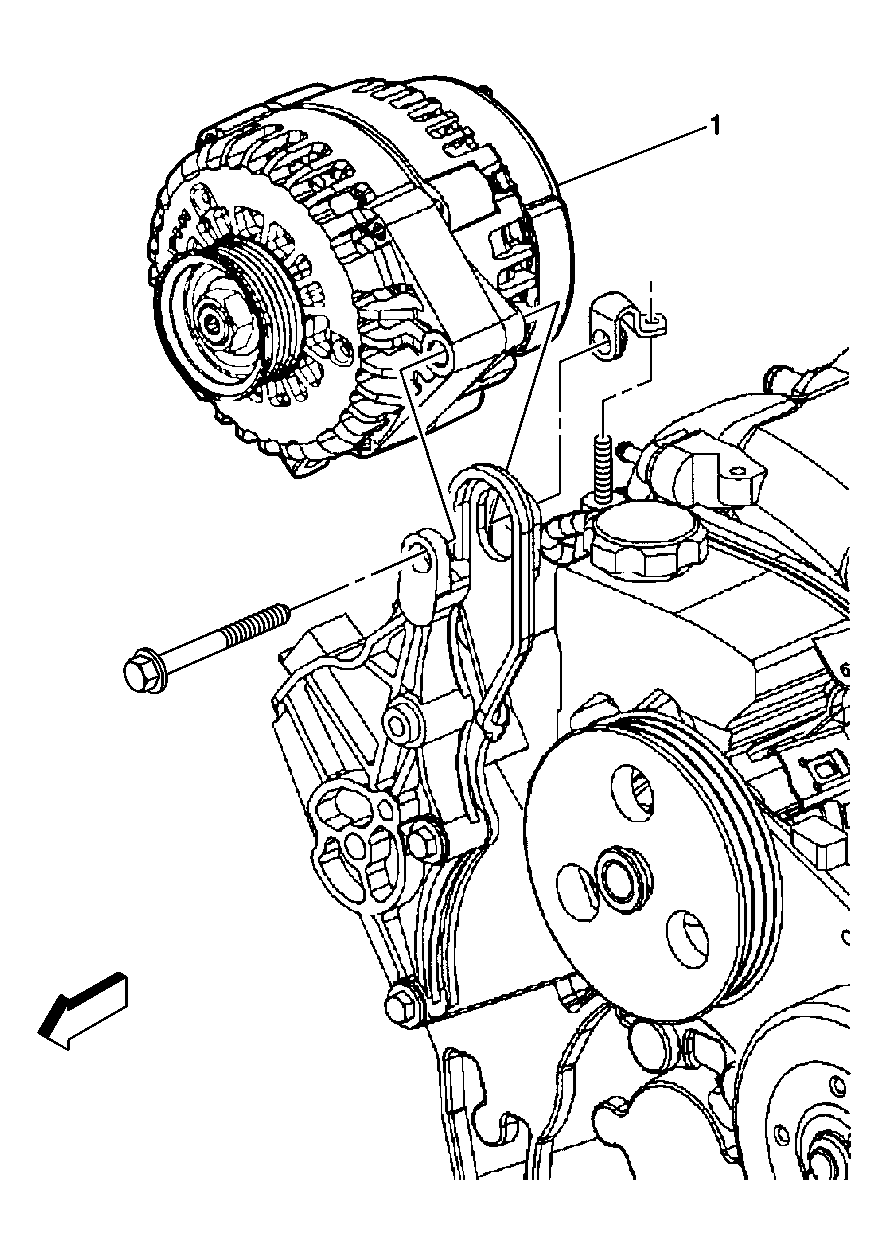

Fig 2: Upper Right Rear Of Engine Component View (LA1)
GM498249Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator

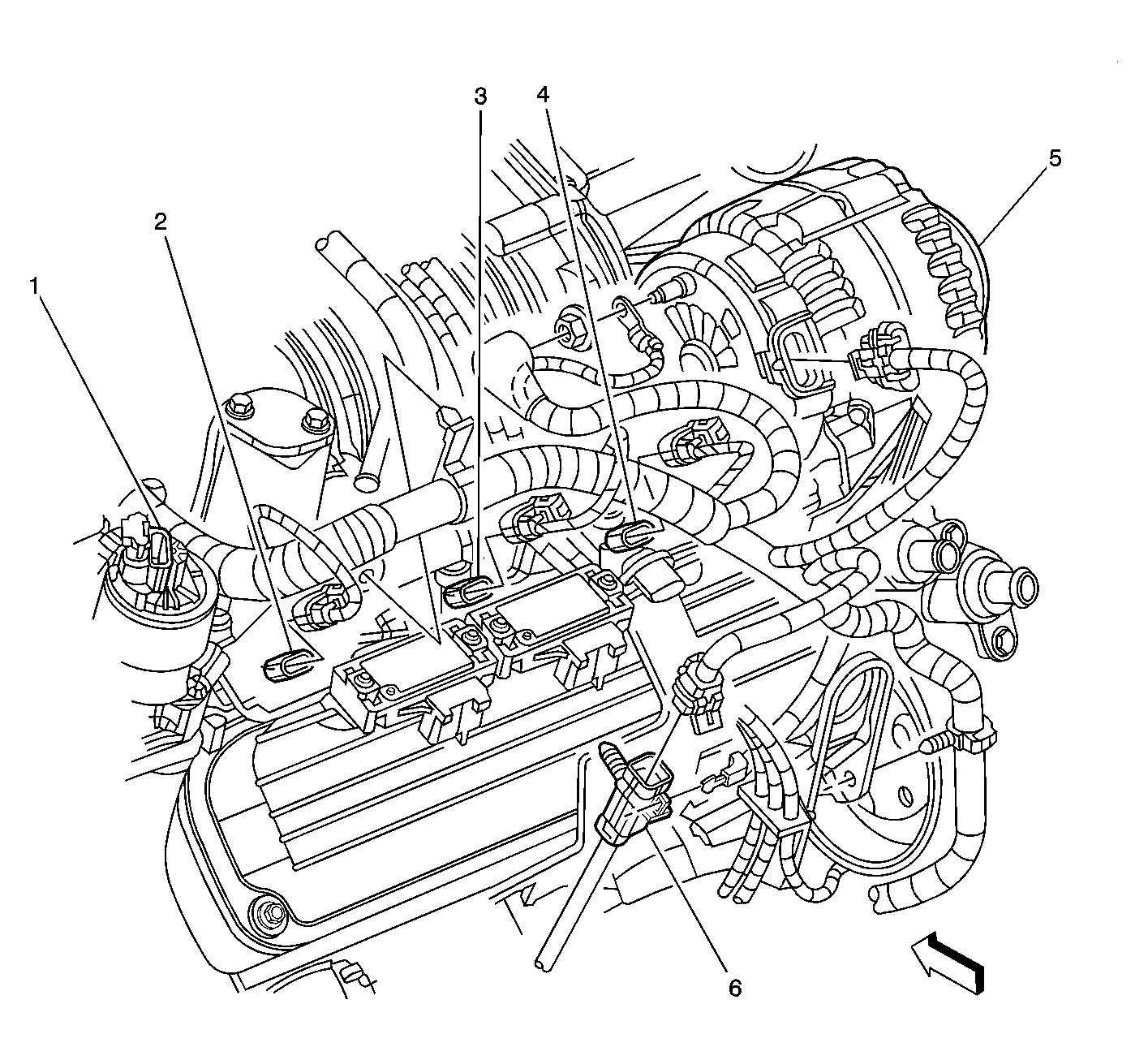

Fig 3: Upper Right Rear Of Engine Component View (L36)
GM1327898Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Gas Recirculation (EGR) Valve
2 Fuel Injector #6
3 Fuel Injector #4
4 Fuel Injector #2
5 Generator
6 Heated Oxygen Sensor (HO2S) Connector

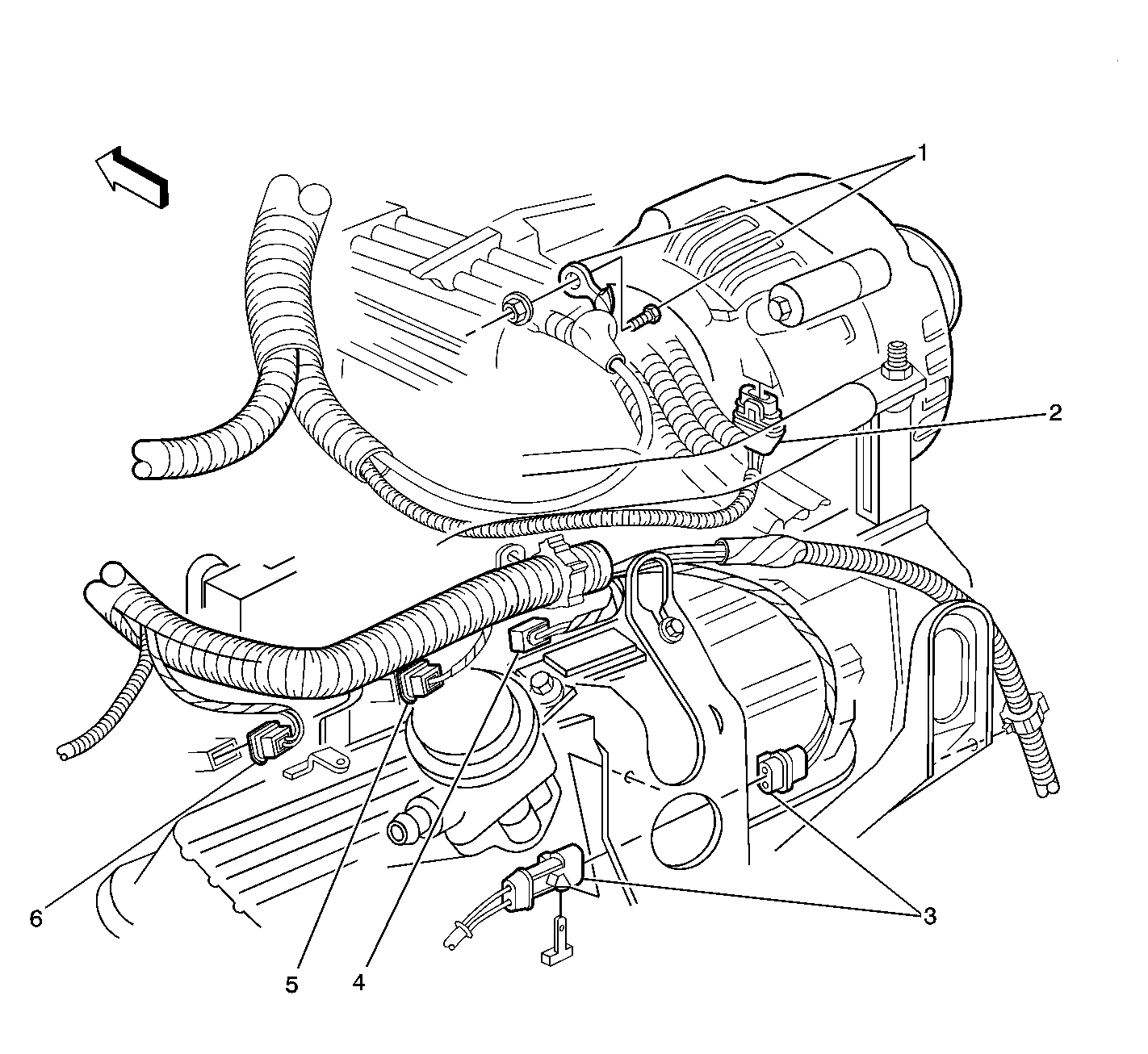

Fig 4: Upper Rear Of Engine Component View (L67)
GM1327911Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Generator BAT Terminal
2 Generator Connector
3 Heated Oxygen Sensor (HO2S) 1
4 Fuel Injector #2
5 Fuel Injector #4
6 Fuel Injector #6

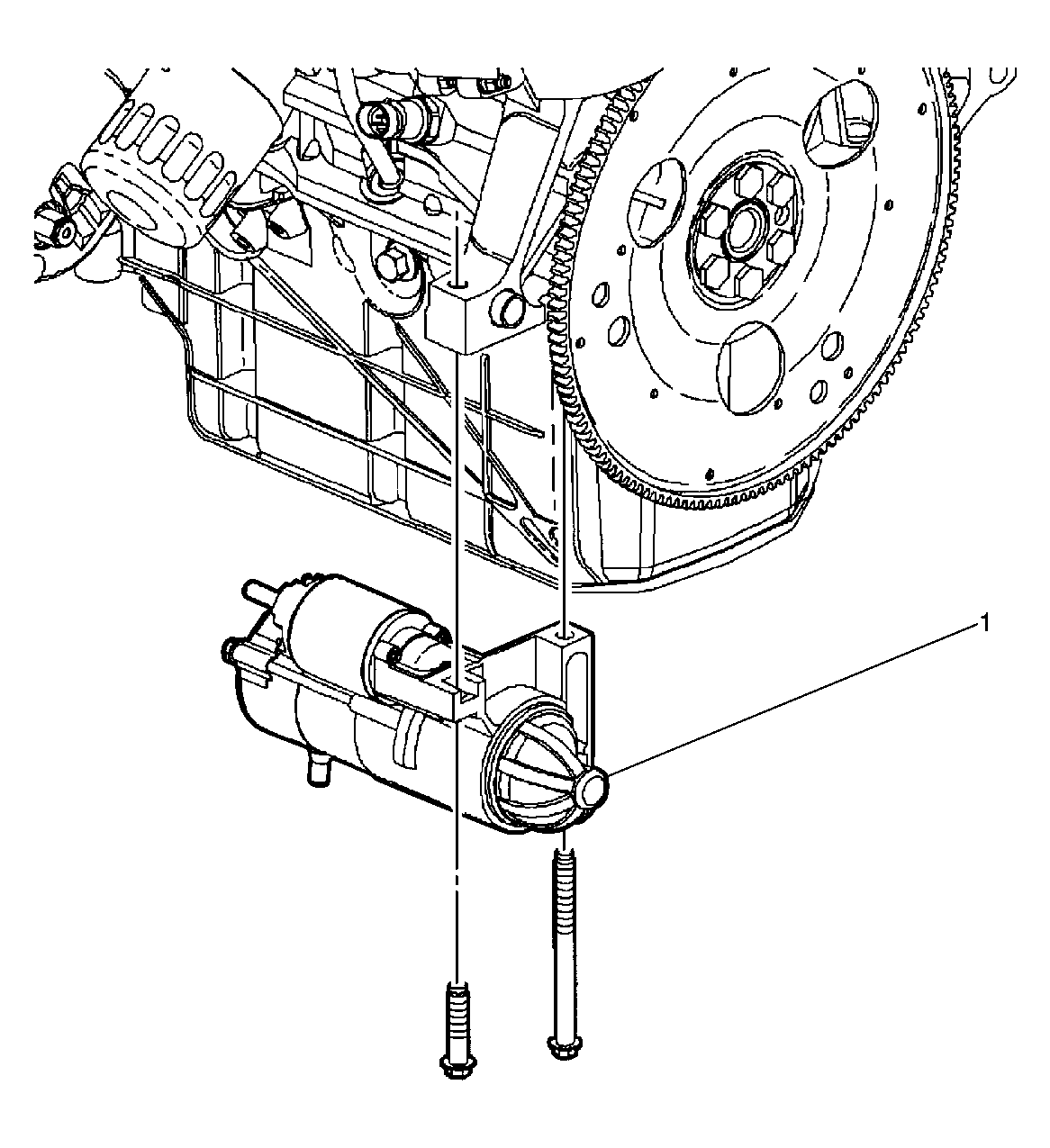

Fig 5: Lower Left Front Of Engine Component View (LA1)
GM498256Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter

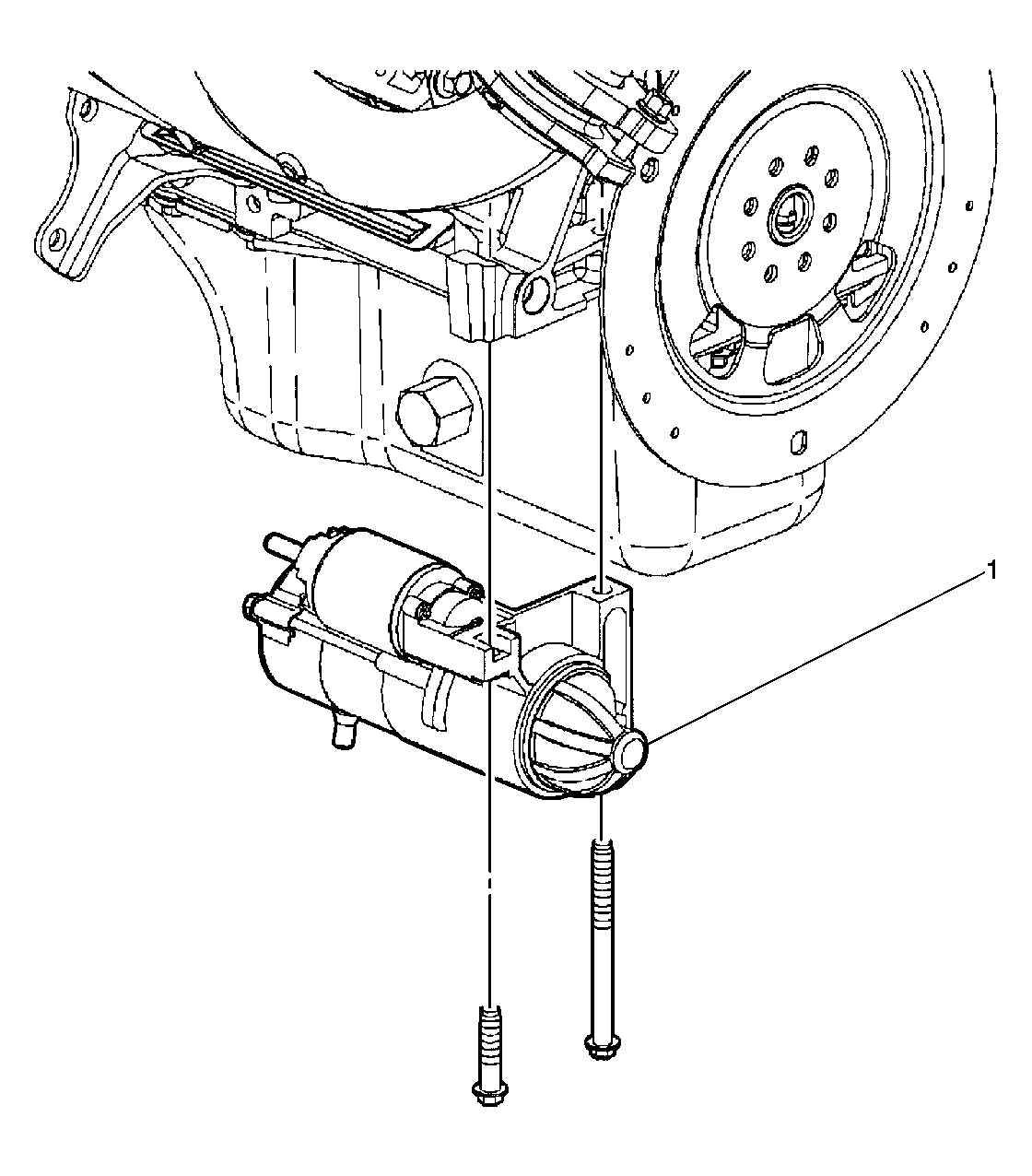

Fig 6: Lower Left Front Of Engine Component View (L36/L67)
GM498254Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter
