HVAC Control Assembly - Front Auxiliary

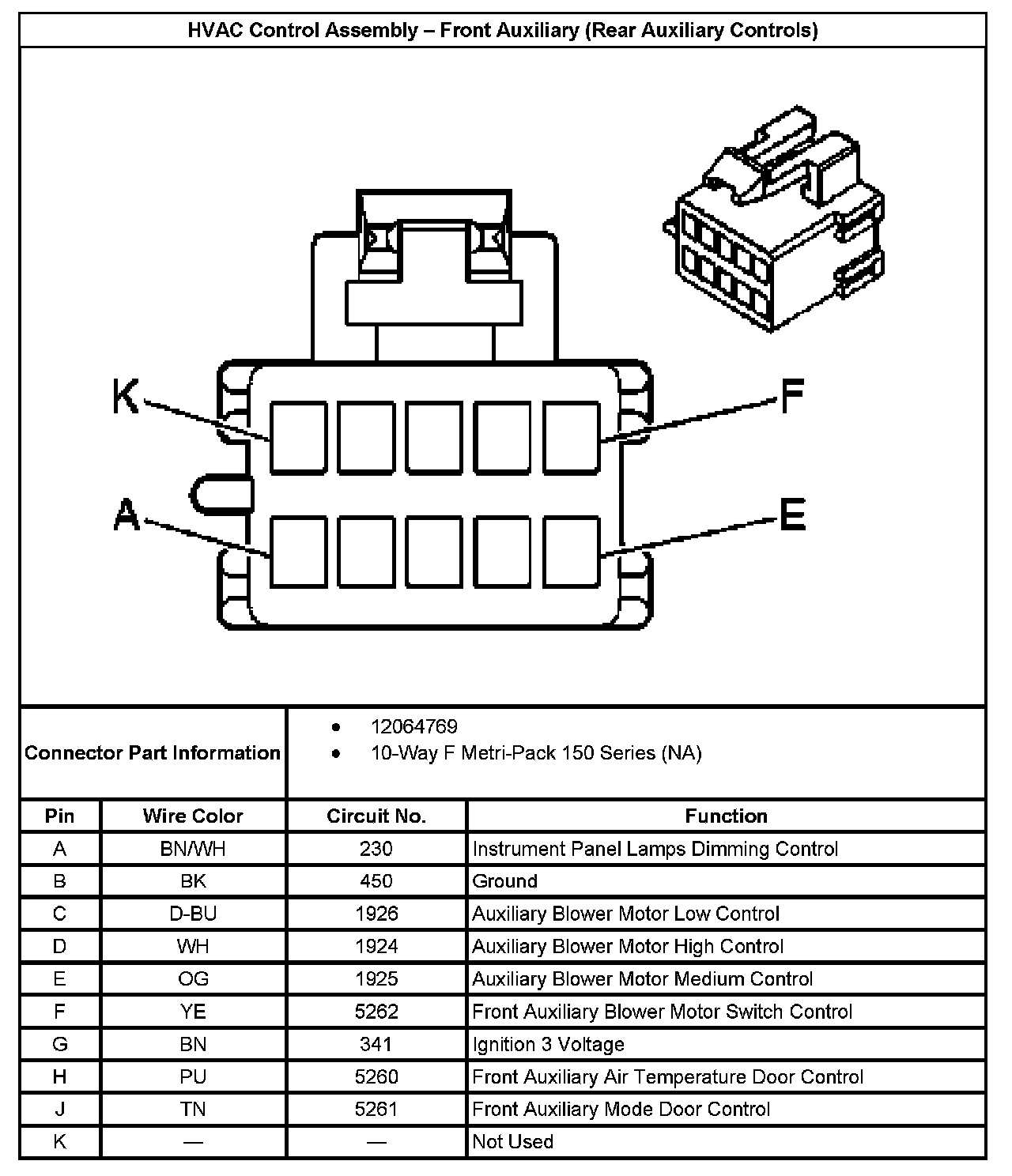

HVAC Control Assembly - Front Auxiliary (Rear Auxiliary Controls):

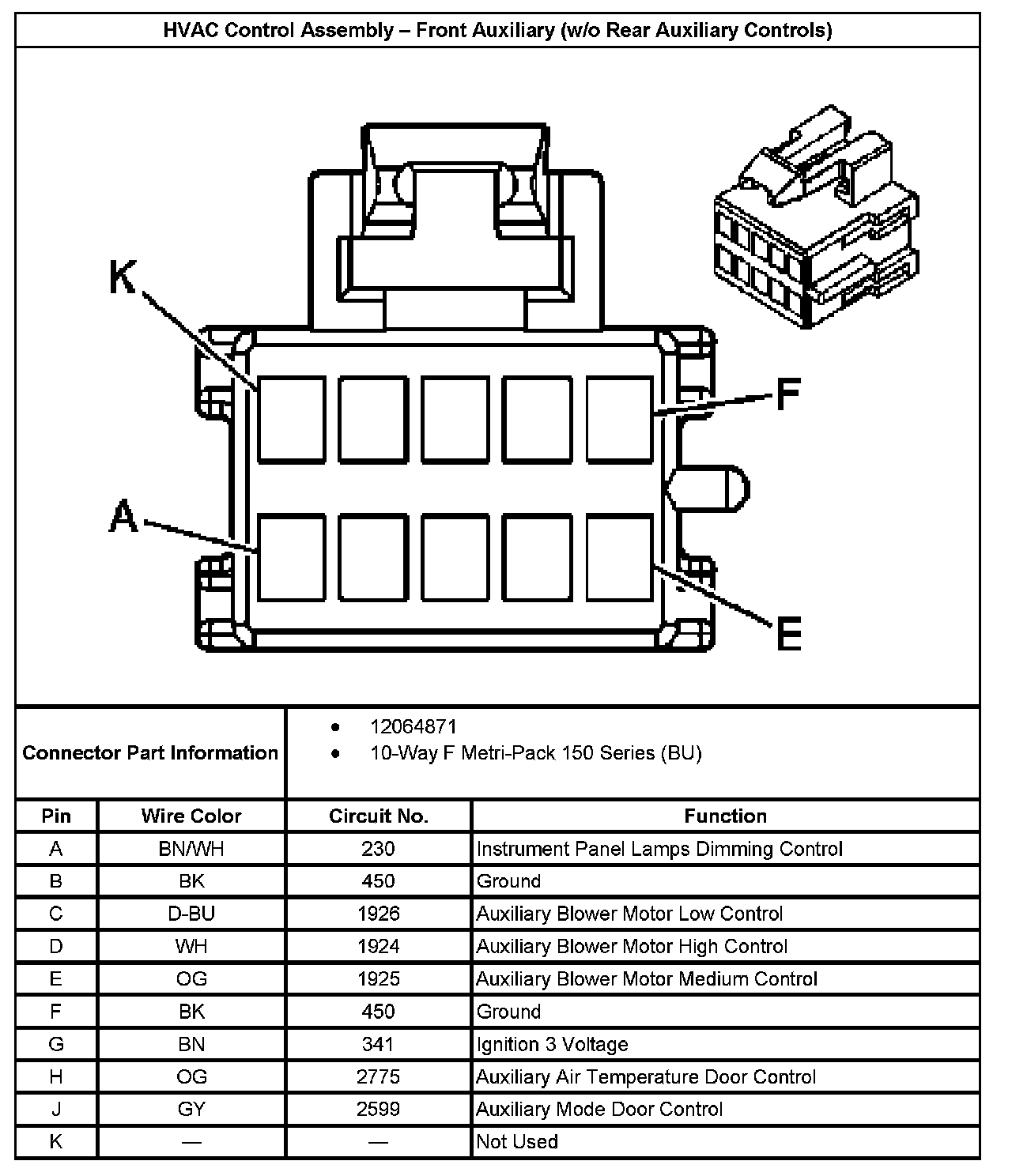

HVAC Control Assembly - Front Auxiliary (Without Rear Auxiliary Controls):
