LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Chevrolet
>>
2005
>>
Express 2500 V8-5.3L VIN T
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

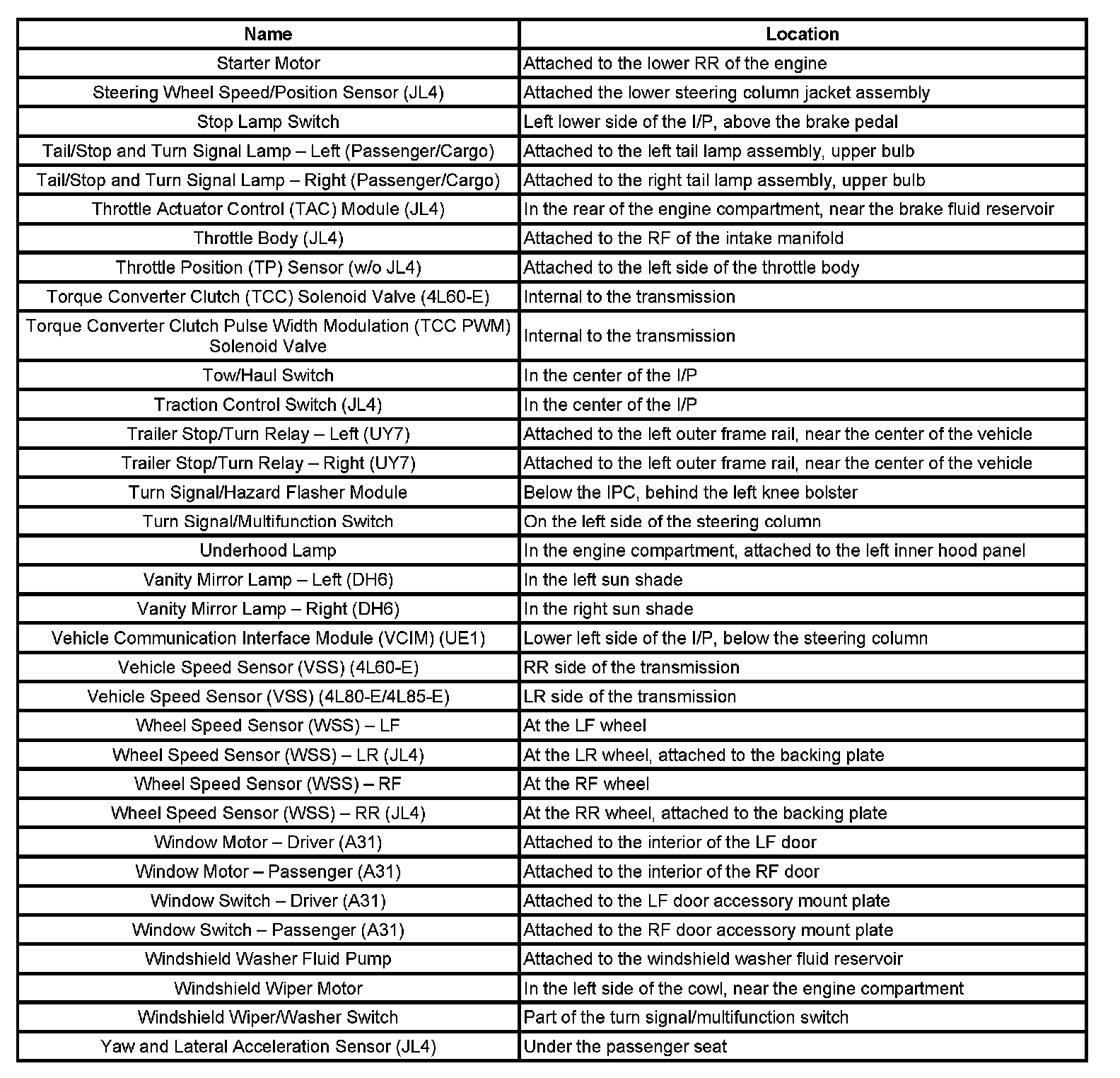

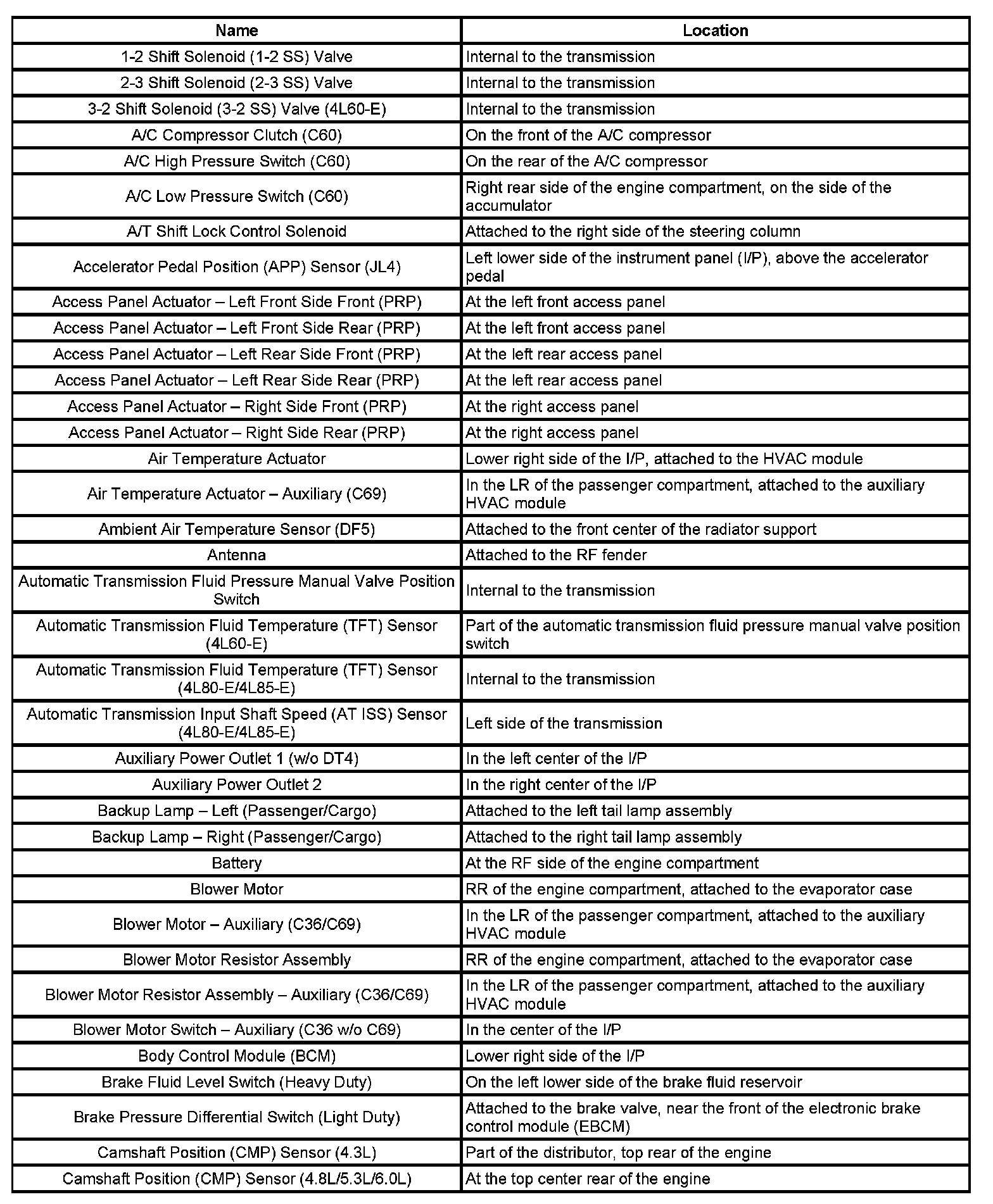

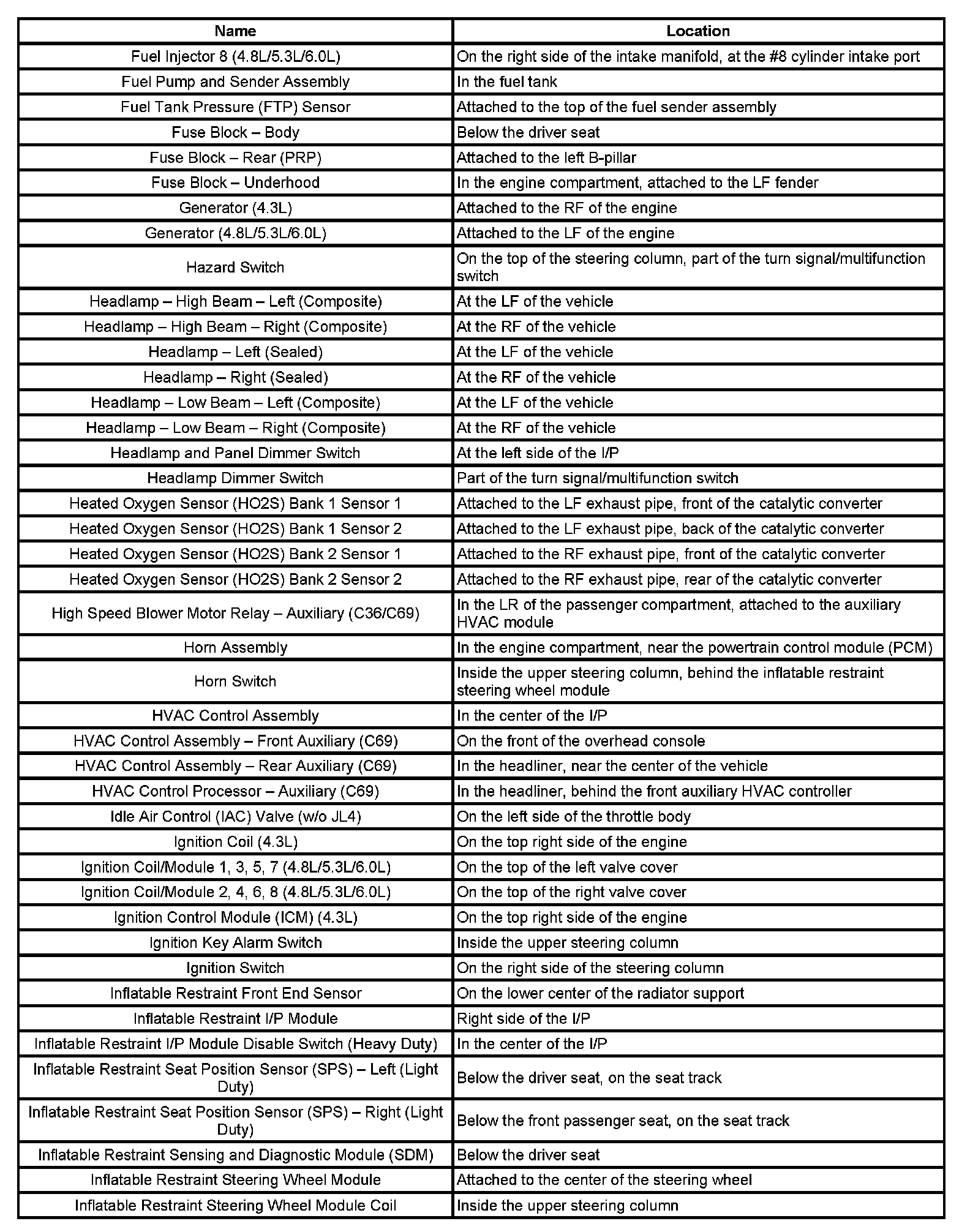

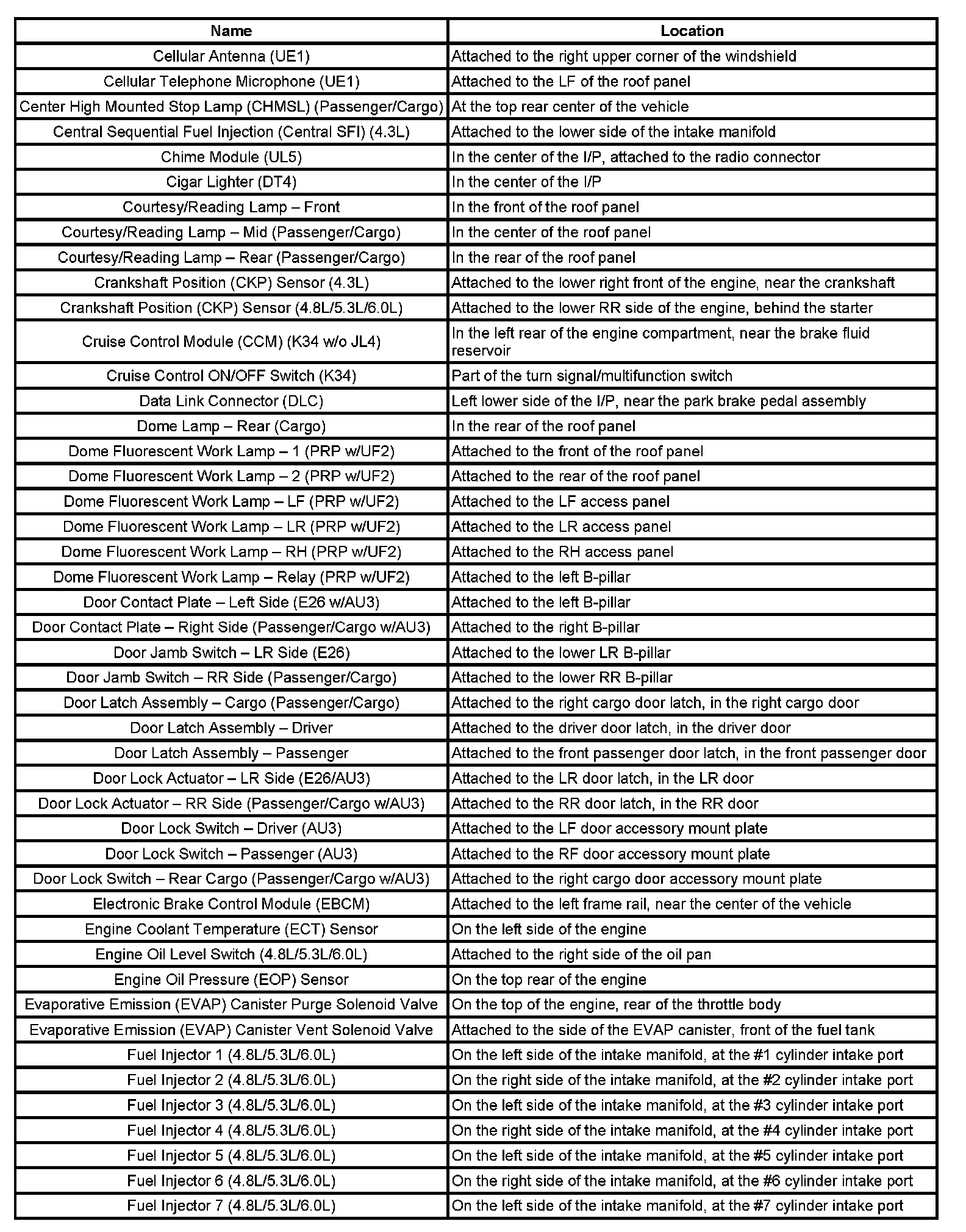

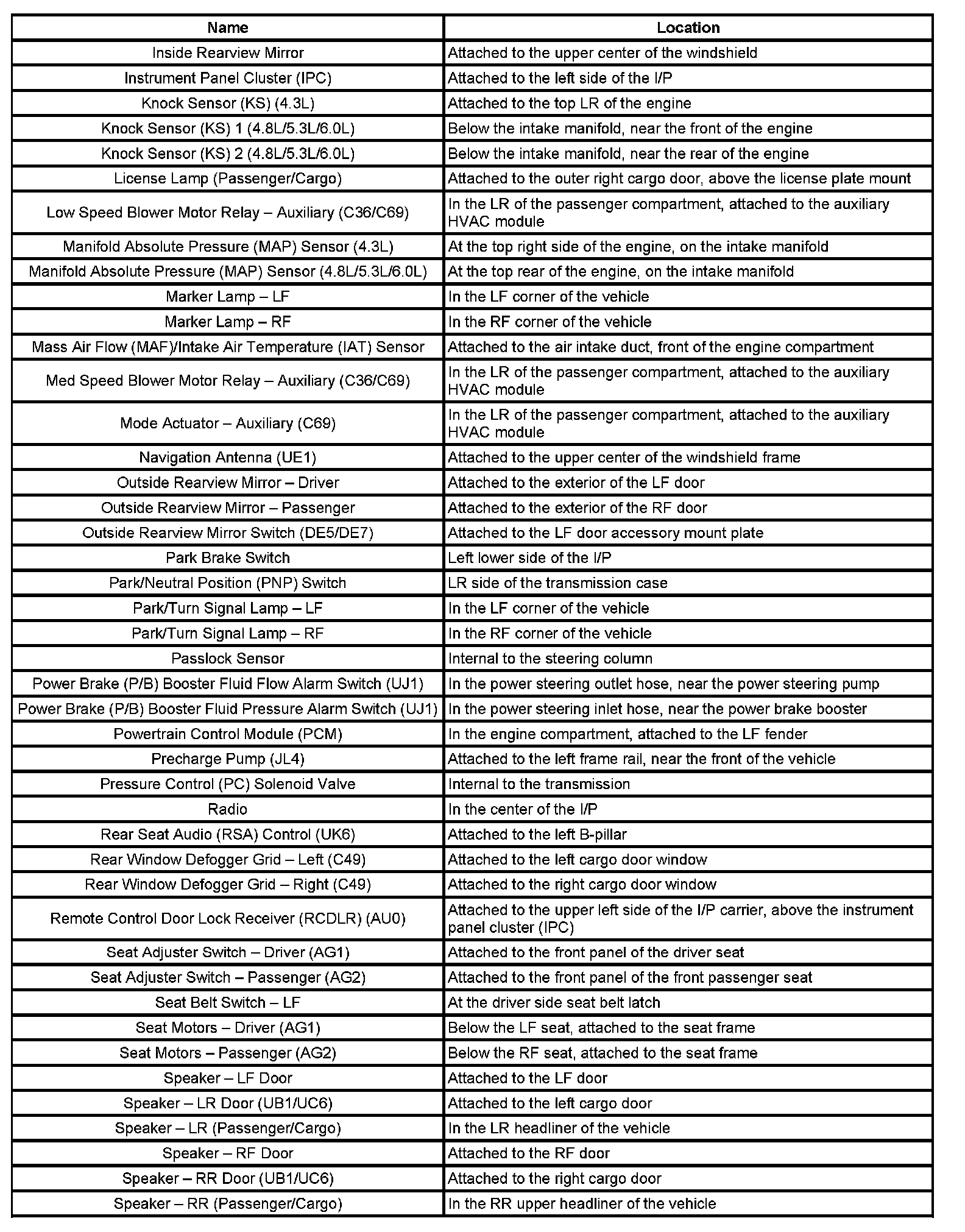

Components
1-2 Sh - Ca:
Ce - Fu:
Fu - In:
In - Sp:
St - Ya:
