Retained Accessory Power (RAP) On After Timeout
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

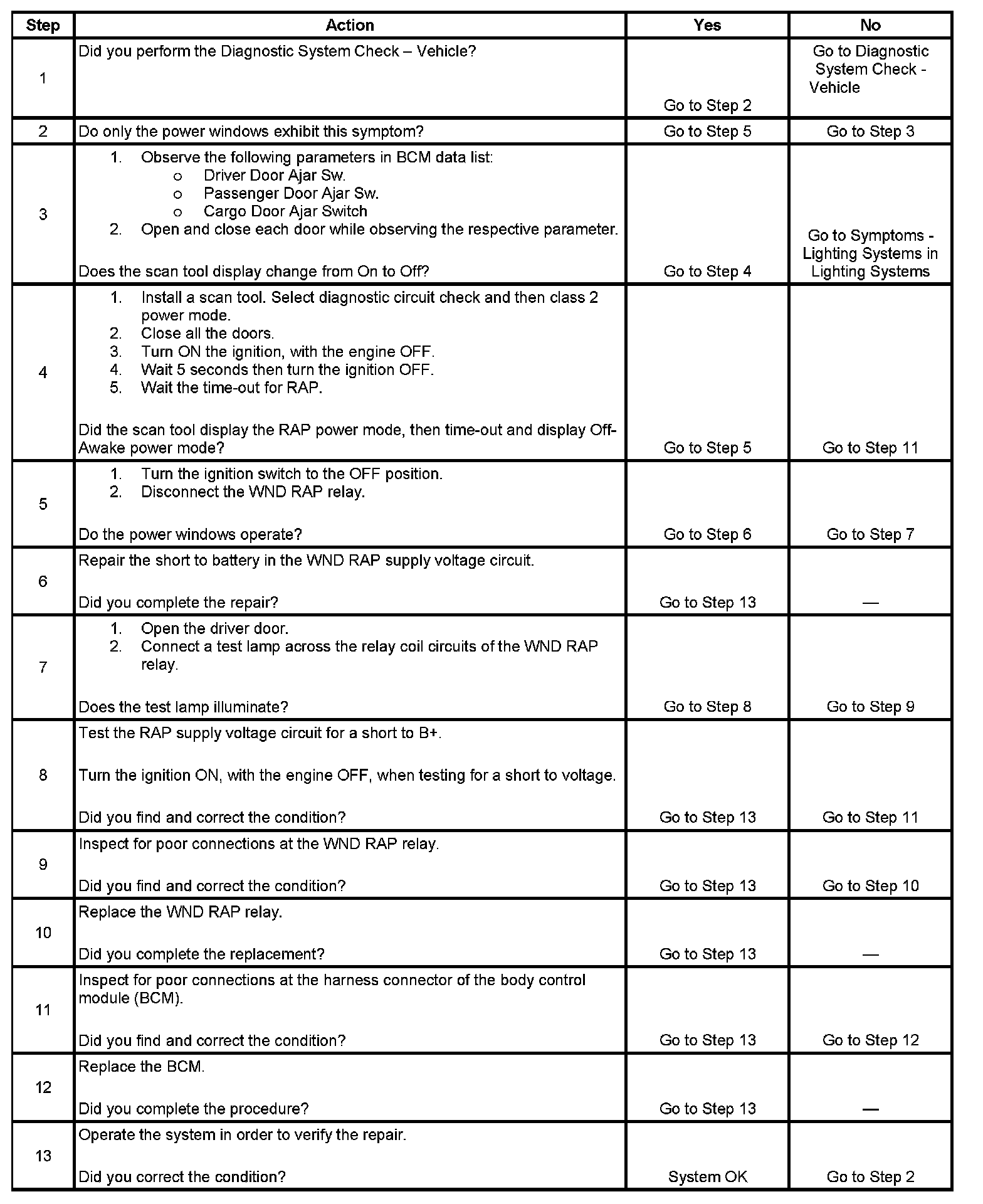

Retained Accessory Power (RAP) On After Timeout
Steps 1-13:
