Fuse Block - Body - C1

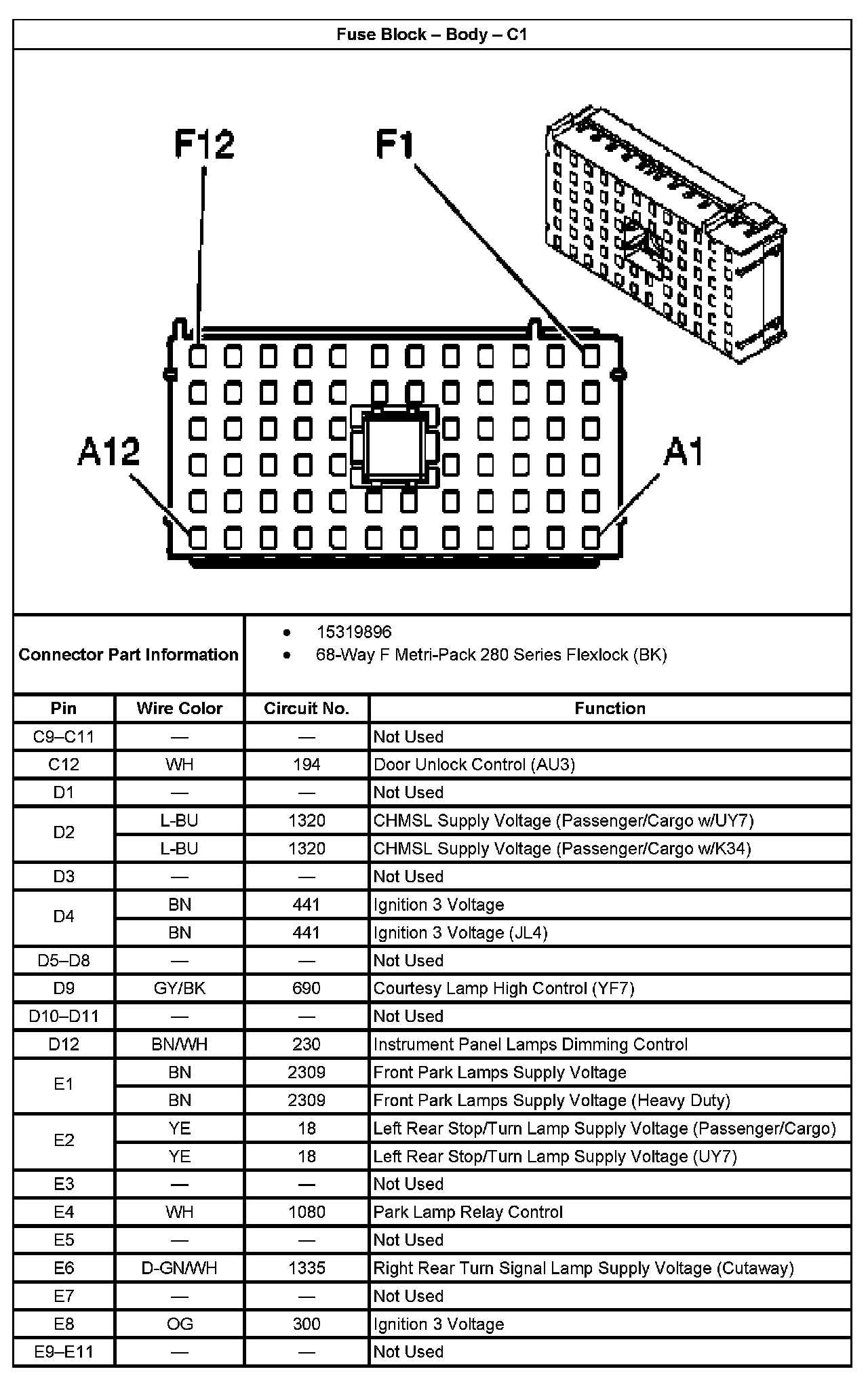

Fuse Block - Body - C1 Part 1:

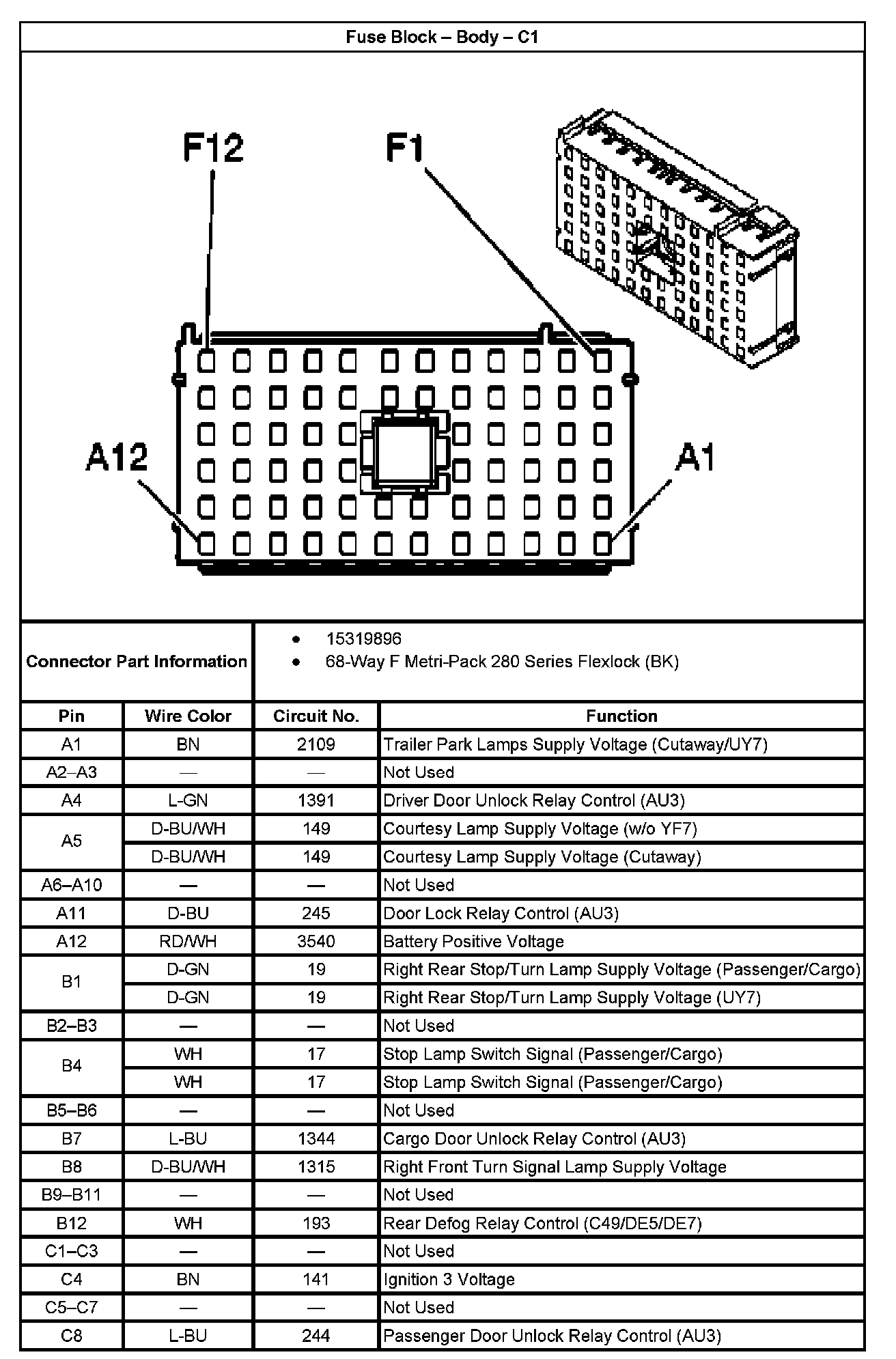

Fuse Block - Body - C1 Part 2:

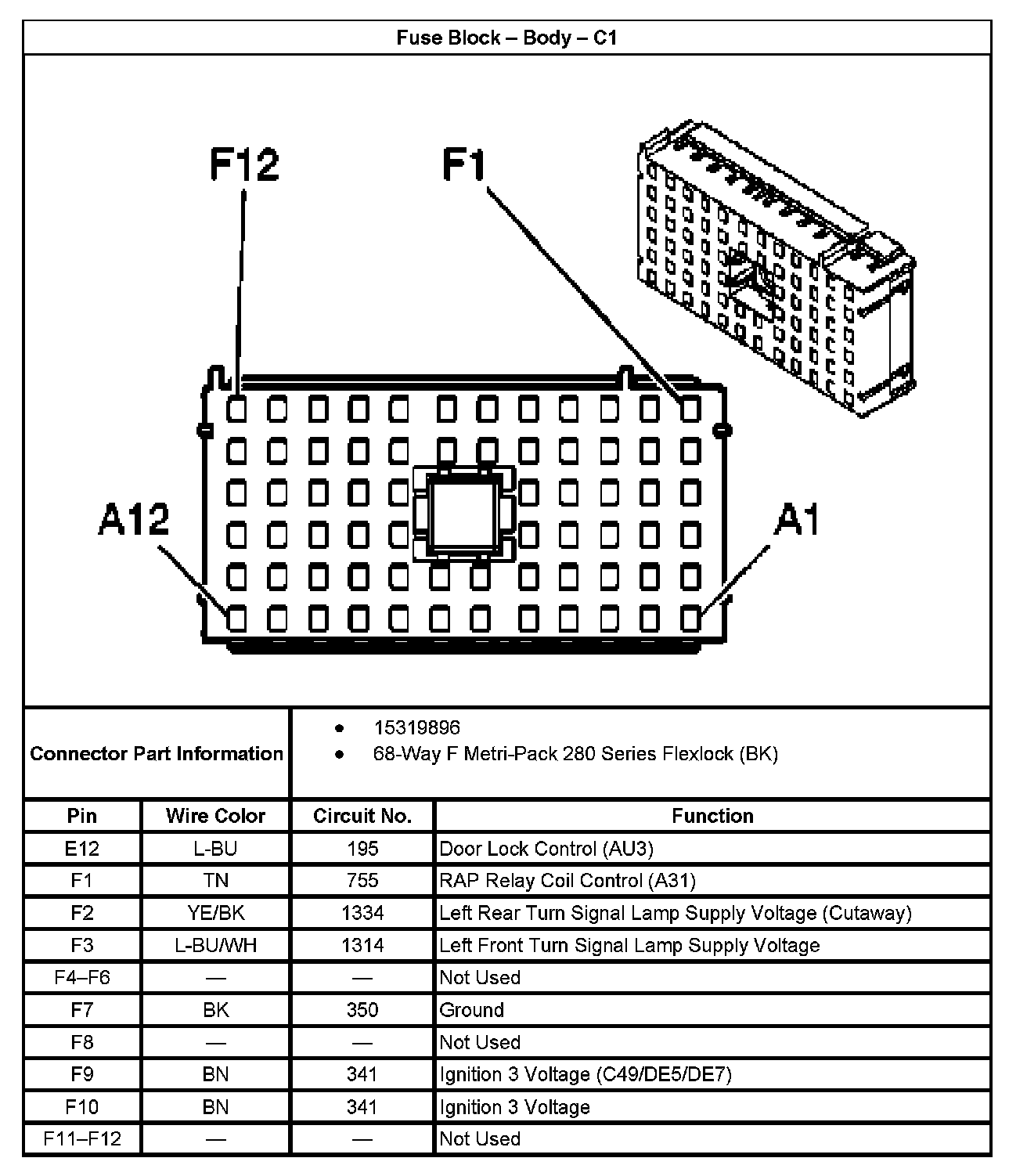

Fuse Block - Body - C1 Part 3:
