Connector Views

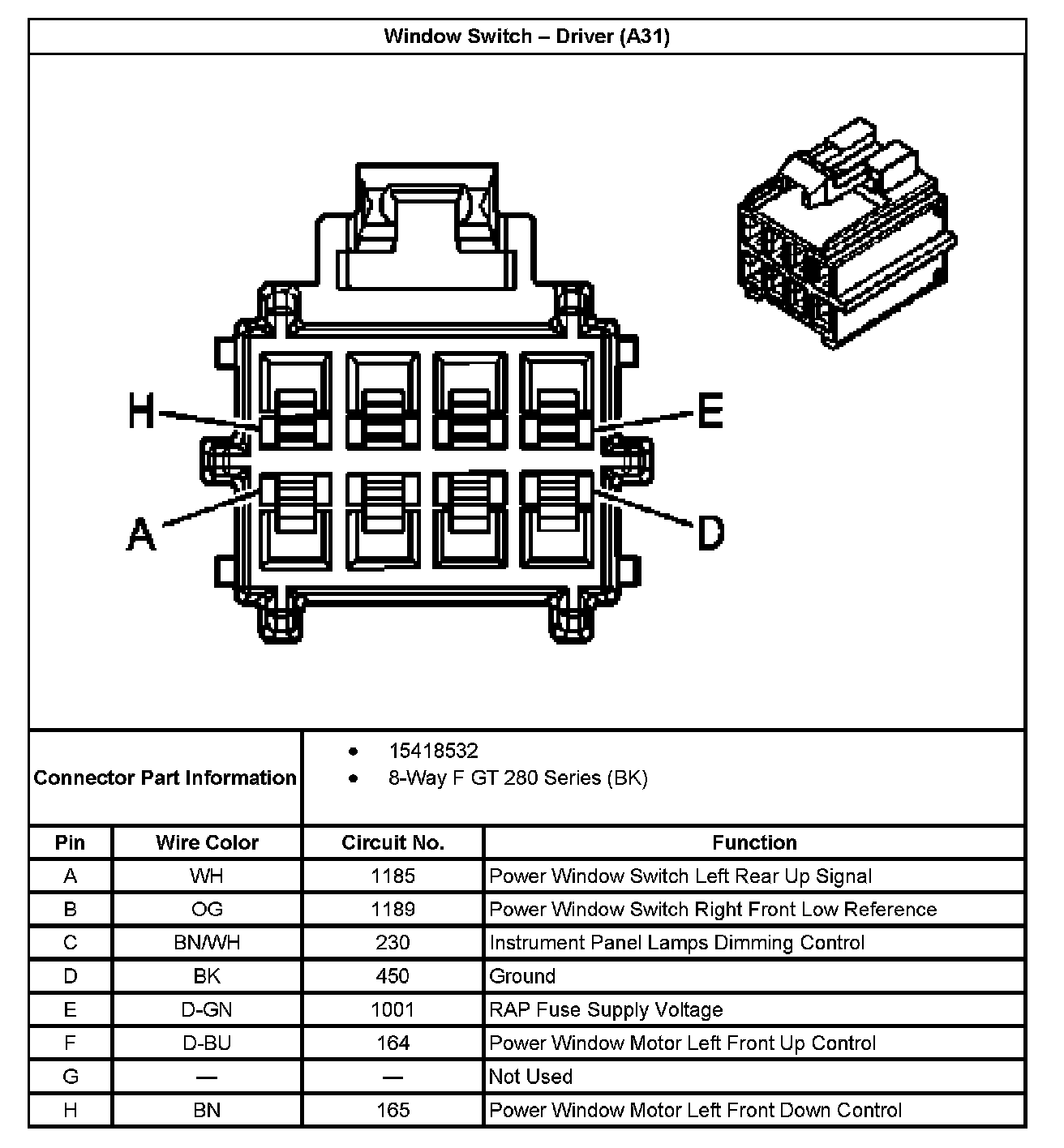

Window Switch - Driver (With RPO Code A31):

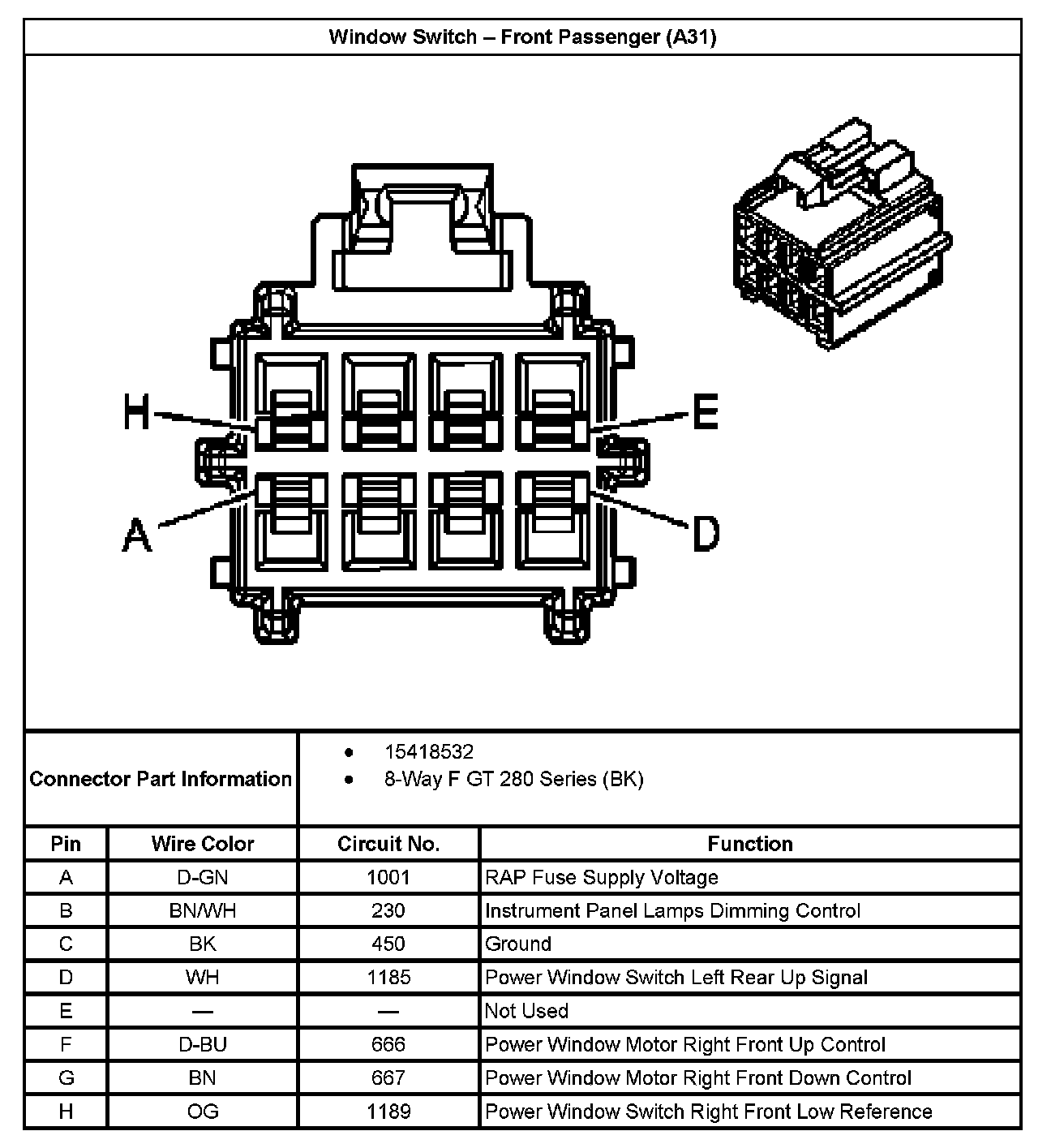

Window Switch - Front Passenger (With RPO Code A31):
