Home >> Chevrolet >> 2005 >> Epica (CANADA) L6-2.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Diagrams >> Electrical Diagrams >> Data Link Connector Schematics
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

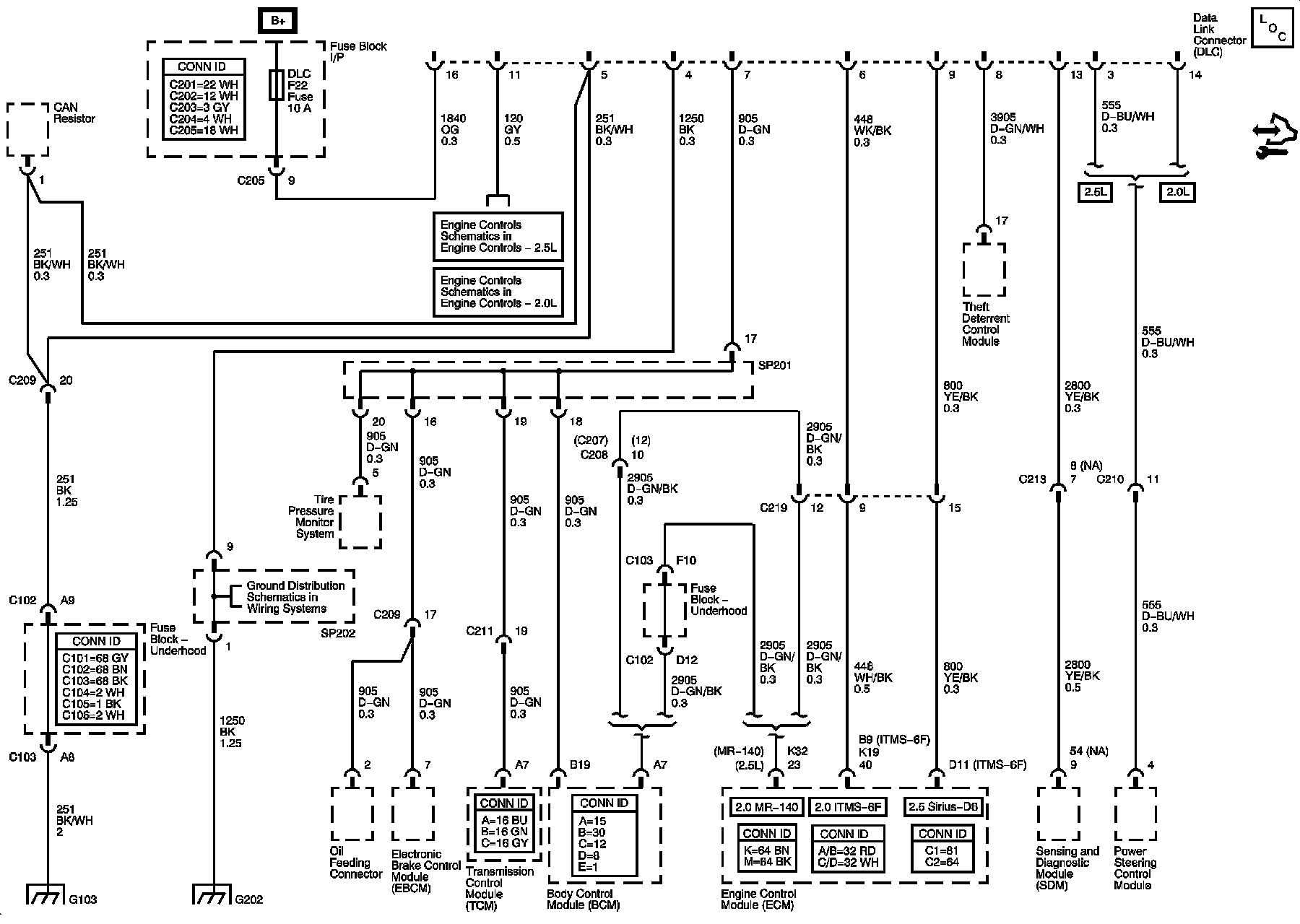

Data Link Connector Schematics




Data Link Connector Schematics





Master Electrical Component List
ECM Power and Ground, Serial Data, Malfunction Indicator Control
ECM Power and Ground, Serial Data, Malfunction Indicator Control
G202, SP202
G202, SP202
G103 (2.0L MR140)
