Fuse Block: Locations




Electrical Center Identification Views

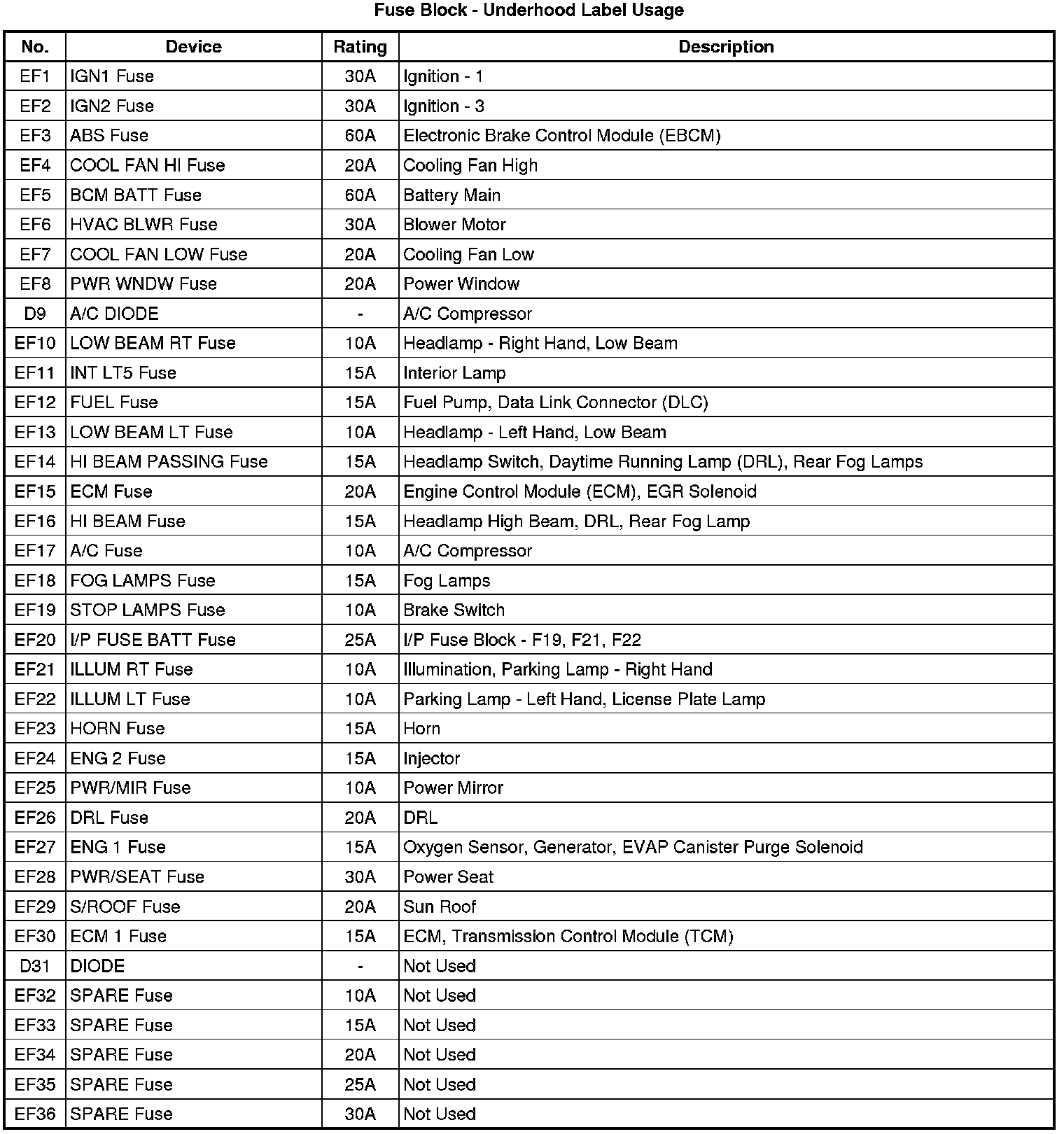

Fuse Block Underhood Label











Fuse Block Underhood- Top View






Fuse Block Underhood- Bottom View

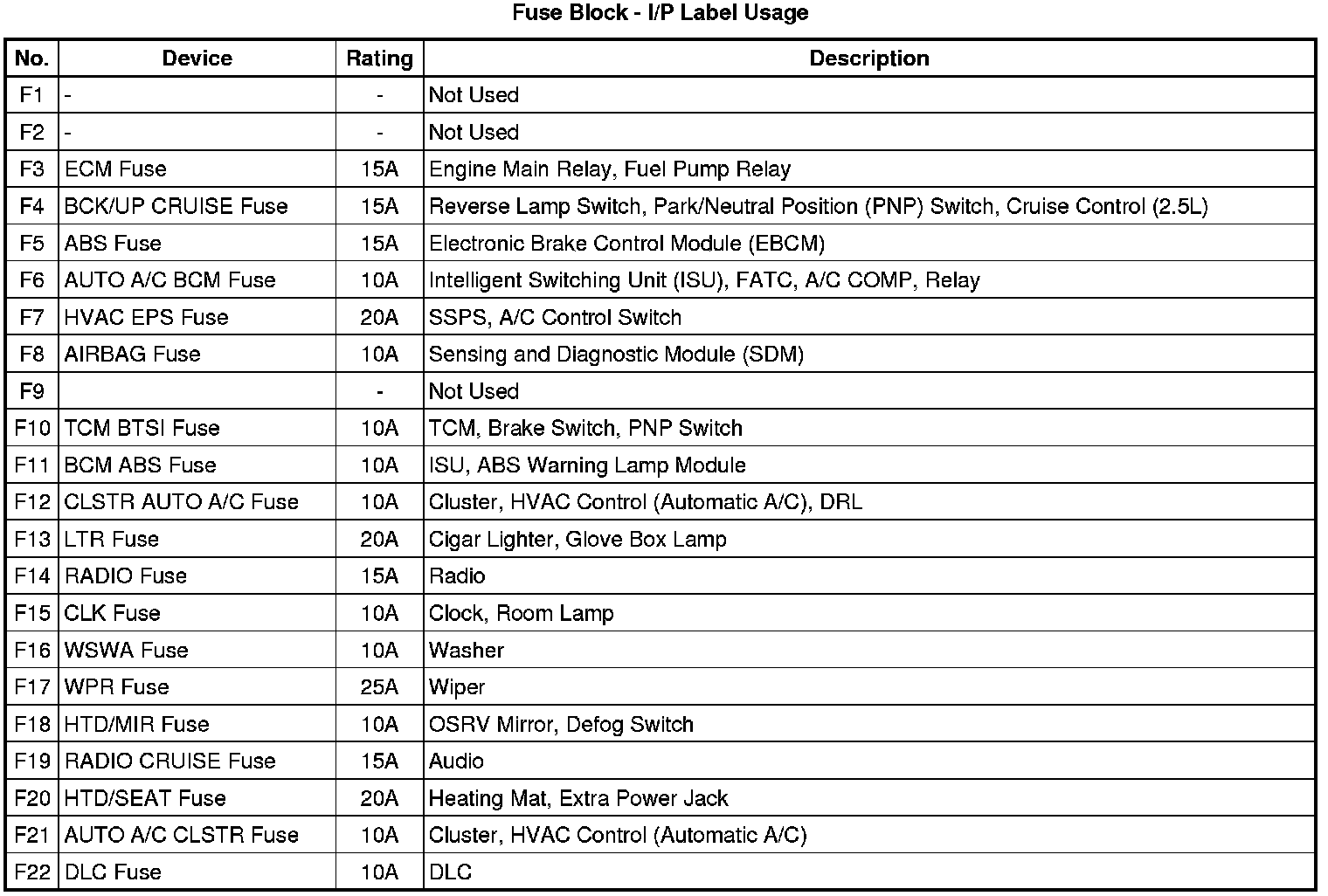

Fuse Block I/P Label











Fuse Block IP- Top View






Fuse Block IP- Bottom View
