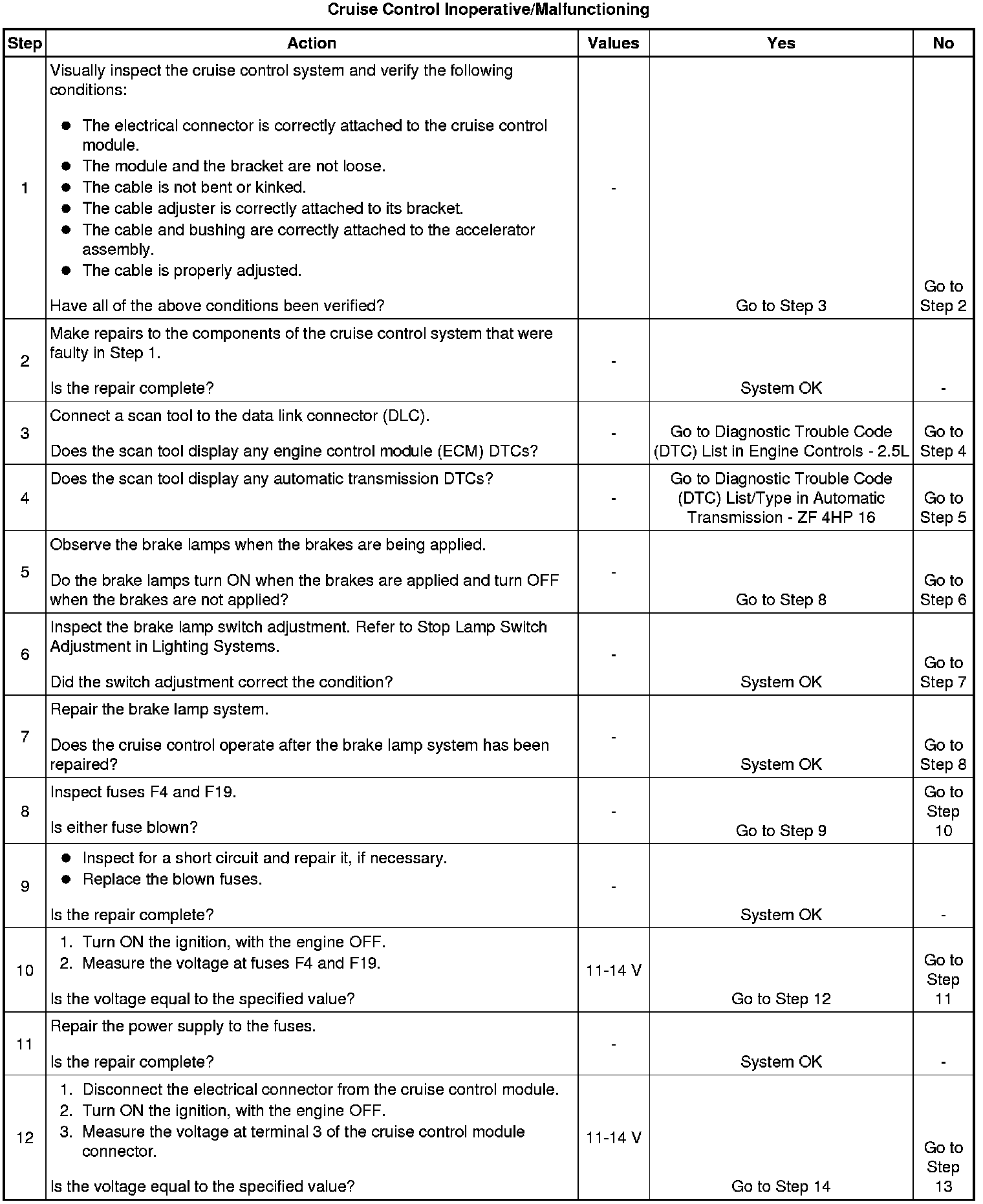

Cruise Control Inoperative/Malfunctioning




Cruise Control Inoperative/Malfunctioning

Test Description

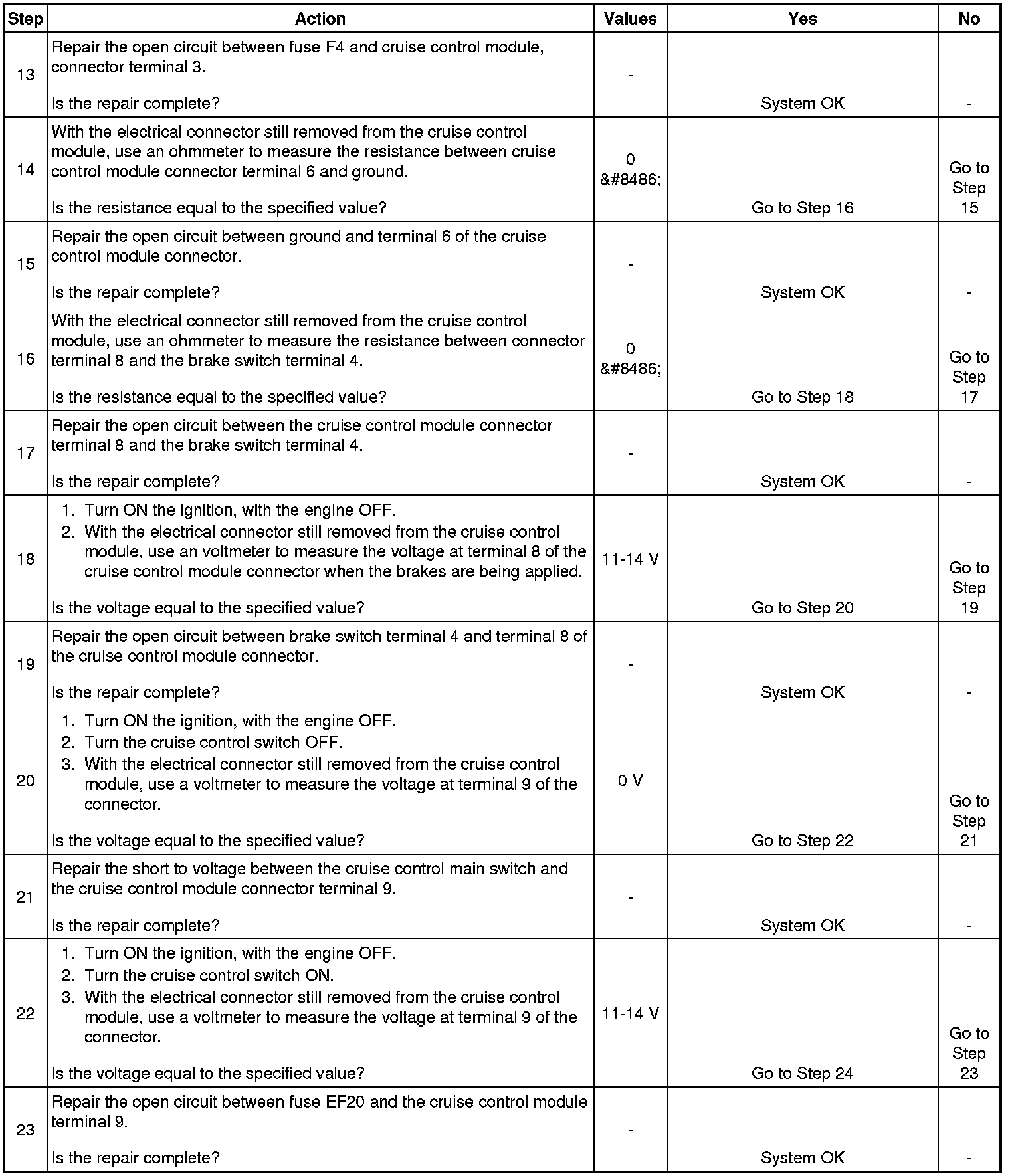

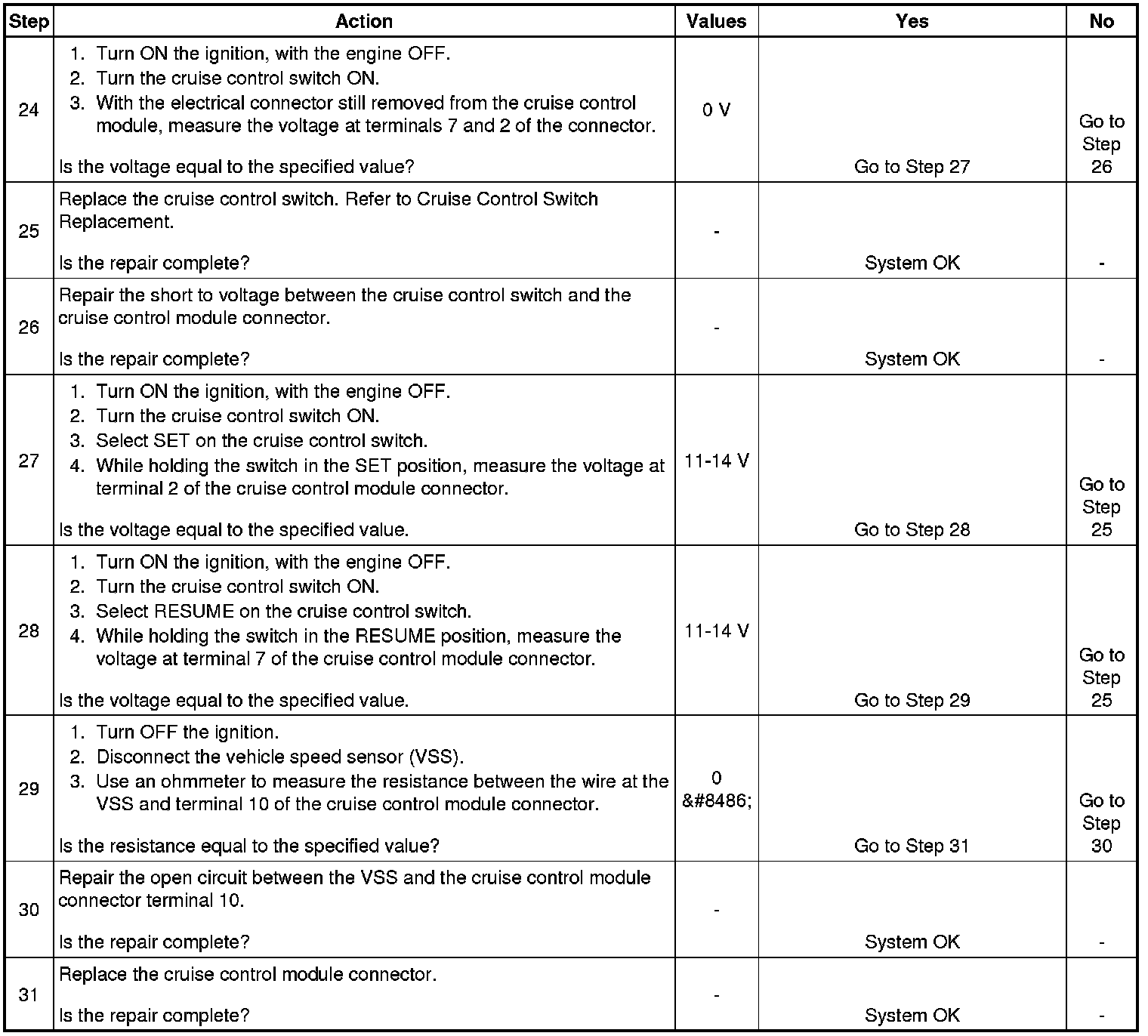

The numbers below refer to the step numbers on the diagnostic table.

5.

The electromagnetic clutch in the cruise control module is grounded through the brake lamps.
