Power and Grounding Component Views

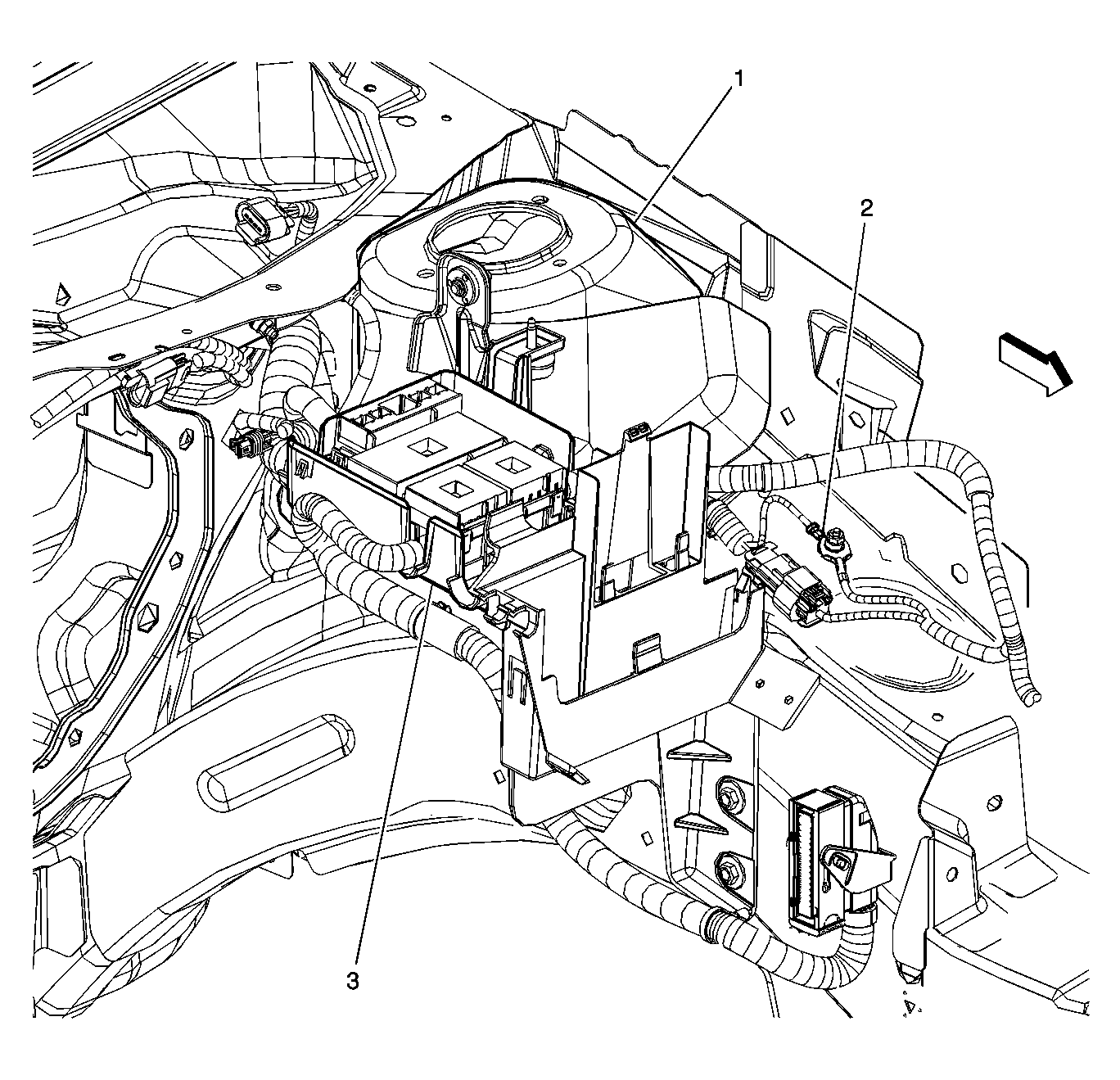

Fig 1: G101

GM1549138

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LF Strut Tower
2	G101
3	Fuse Block - Underhood Bracket

Fig 2: G102

GM1549137

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	LF Strut Tower
2	Upper Tie Bar
3	G102

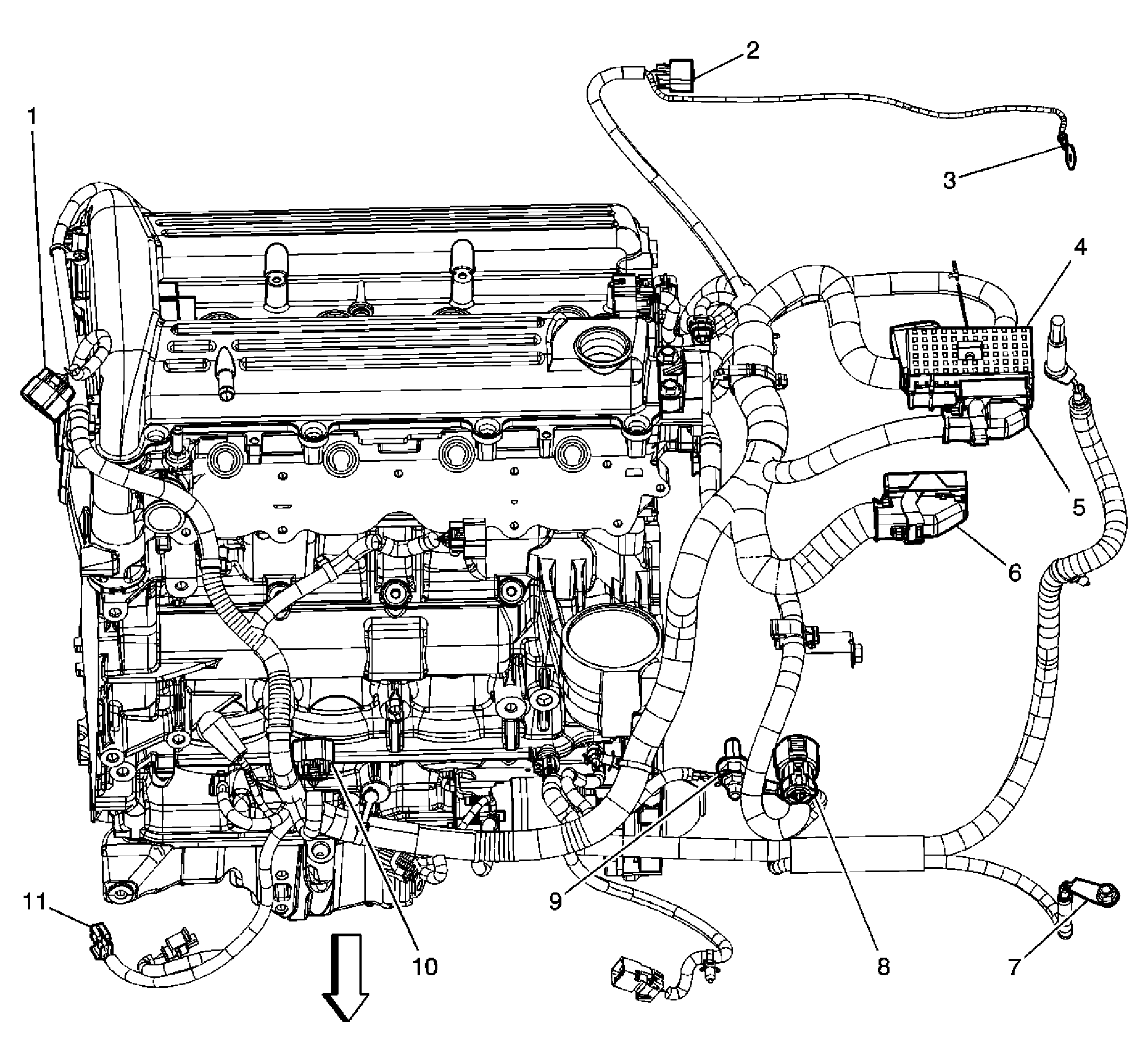

Fig 3: Engine Harness (L61)

GM1524050

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor
2	C101
3	G109
4	Fuse Block - Underhood C1
5	Transmission Control Module (TCM) C1
6	Engine Control Module (ECM) C2
7	G103
8	C100
9	G105
10	C160
11	Air Compressor Clutch Connector

Fig 4: G201 and G203

GM1543933

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Tie Bracket
2	G203
3	G201

Fig 5: G105

GM1546027

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Case
2	G105
3	Engine Harness

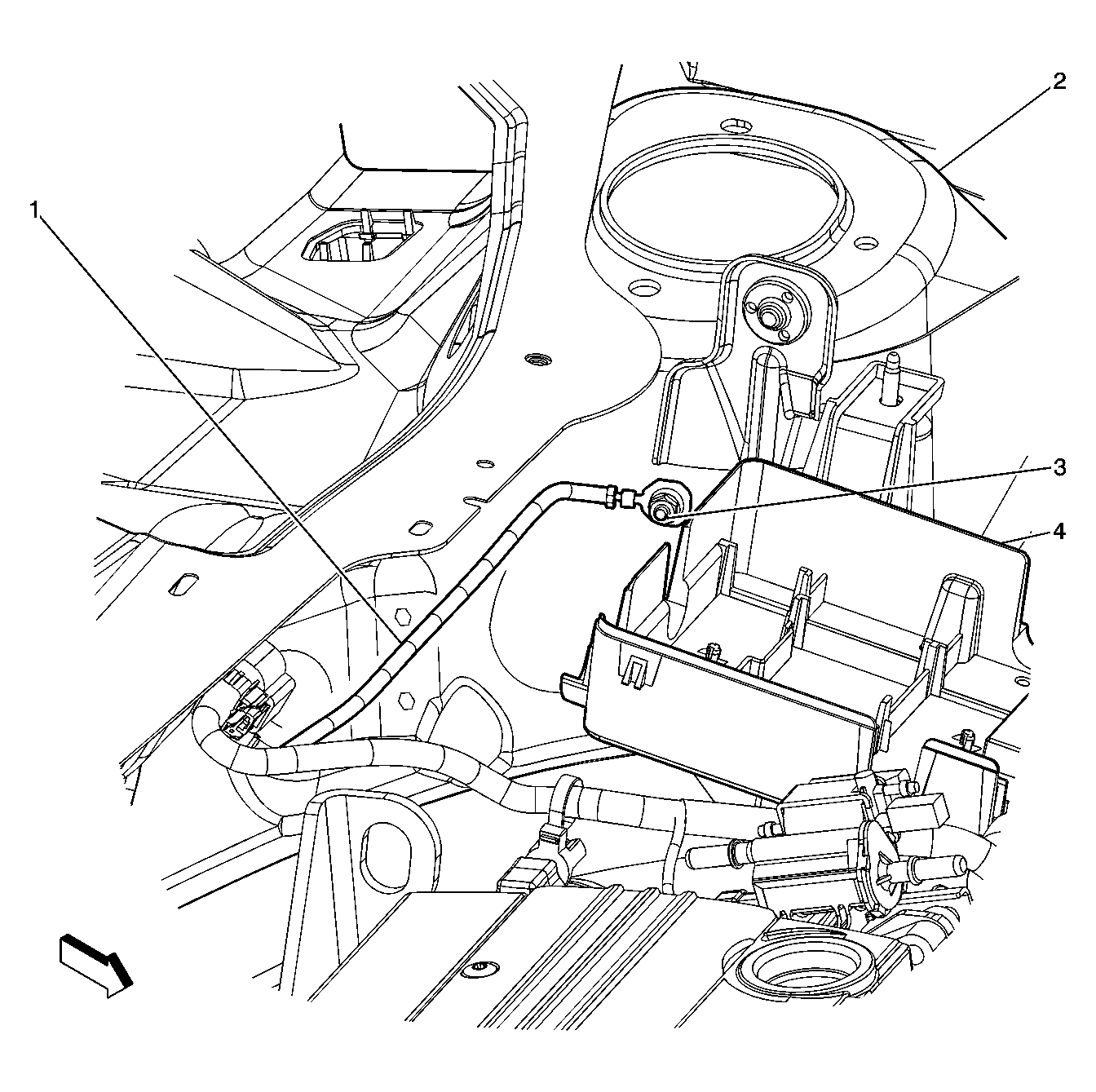

Fig 6: G109

GM1546028

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Harness
2	LF Strut Tower
3	G109
4	Fuse Block - Underhood Bracket

Fig 7: Floor Panel Components and Grounds

GM1543928

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Shift Light
2	Floor Pan
3	A/T Shift Lock Control Solenoid (MN5)
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
5	G306
6	Park Brake Switch
7	G301

Fig 8: Rear Compartments and Shelf Components

GM1543935

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	G402
5	Rear Window Shelf
6	Floor Pan
7	Speaker - Subwoofer (UQ3)

Fig 9: Rear Floor Pan Components and G403

GM1549037

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery
2	Fuse Holder 50A
3	Battery Current Sensor
4	G403
5	C400
6	Spare Tire Well

Fig 10: Steering Wheel and Column Components

GM1543927

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Windshield Wiper/Washer Switch
4	Steering Wheel
5	Steering Wheel Controls - Right
6	Horn Switch
7	Steering Wheel Controls - Left
8	Electronic Power Steering Control Module (EPS)
9	Electronic Power Steering (EPS) Control Module Motor
10	Ignition Switch
11	Ignition Lock Cylinder Control Solenoid

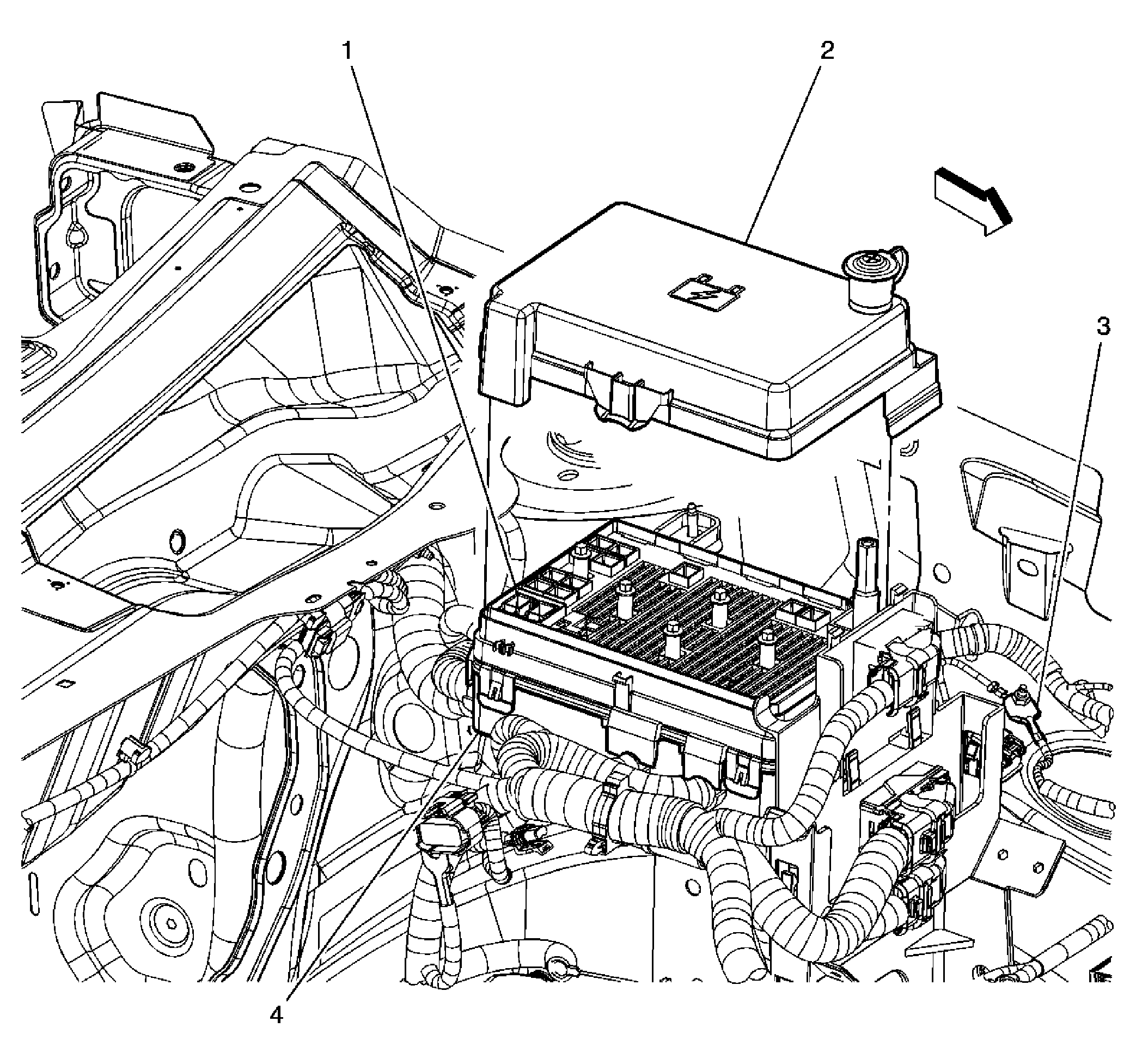

Fig 11: Fuse Block - Underhood

GM1549068

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	Fuse Block Cover
3	Bracket Assembly
