Trim Panel Replacement - Upper Extension

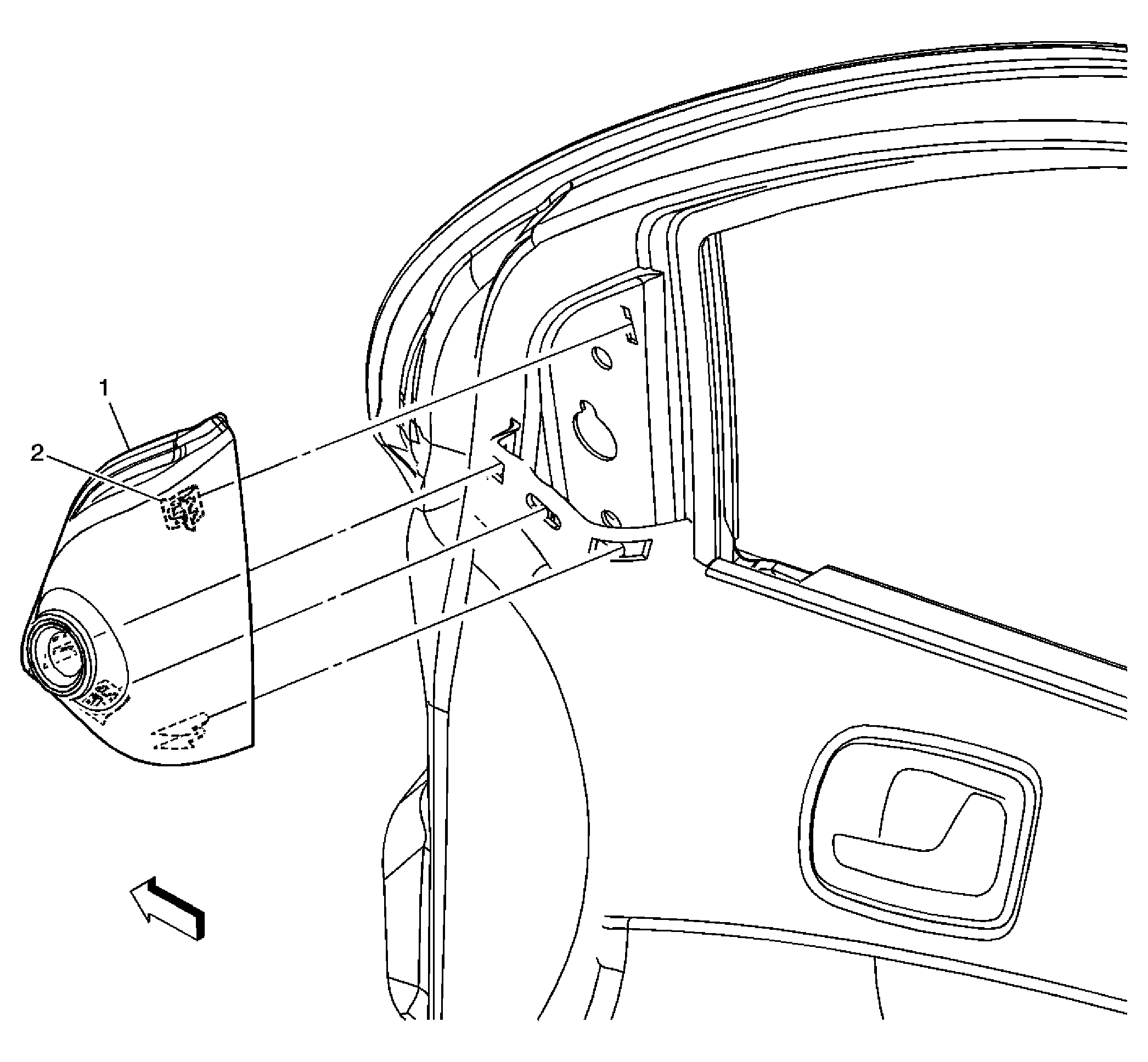

Fig 1: Trim Panel Replacement - Upper Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Panel Assembly, Upper Front Side Door Tip: Panel is only serviced on vehicles with manual mirrors.
2	Retainer, Upper Front Side Door Panel
