Wheel Speed Sensor

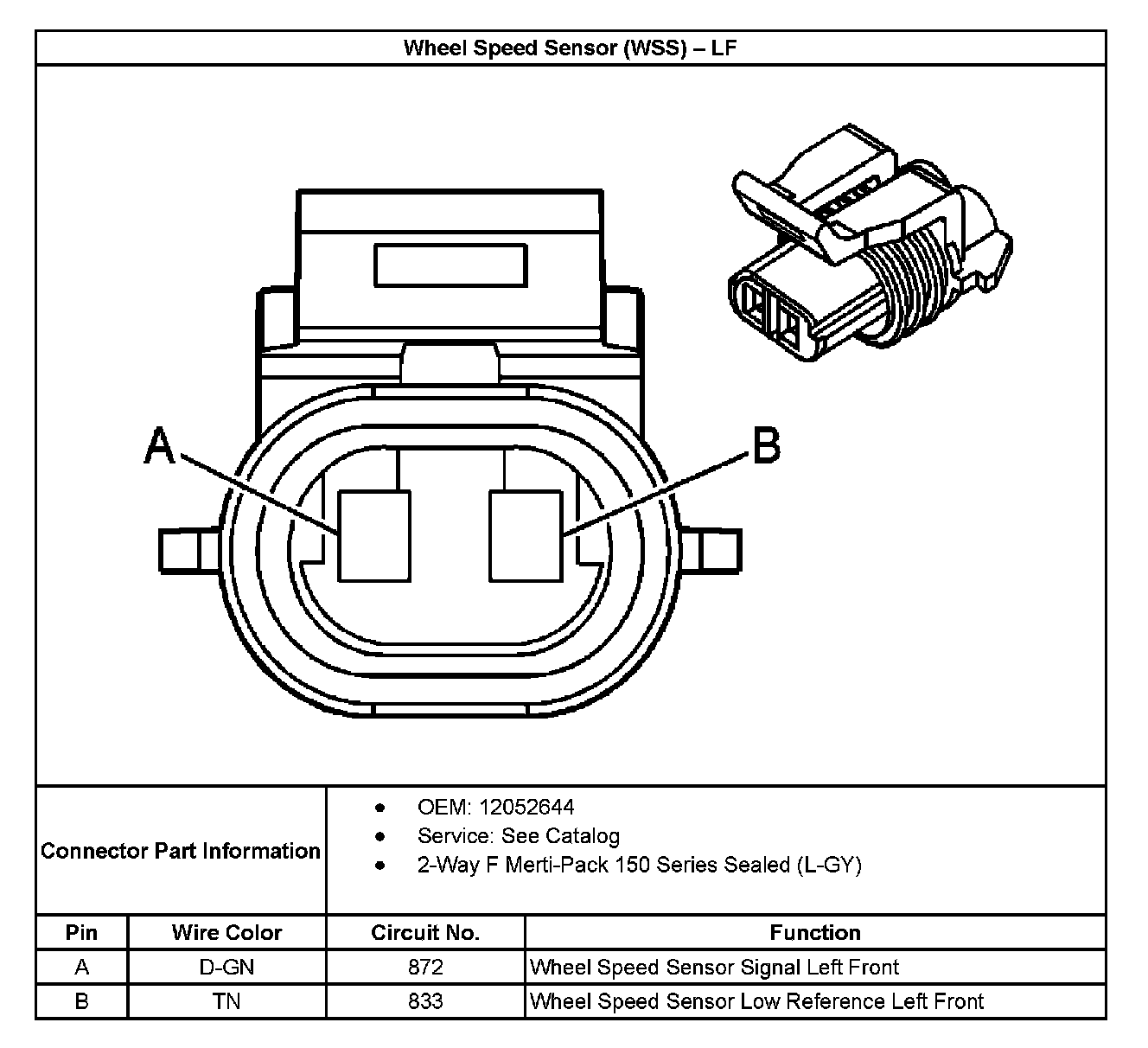

Wheel Speed Sensor - LF:

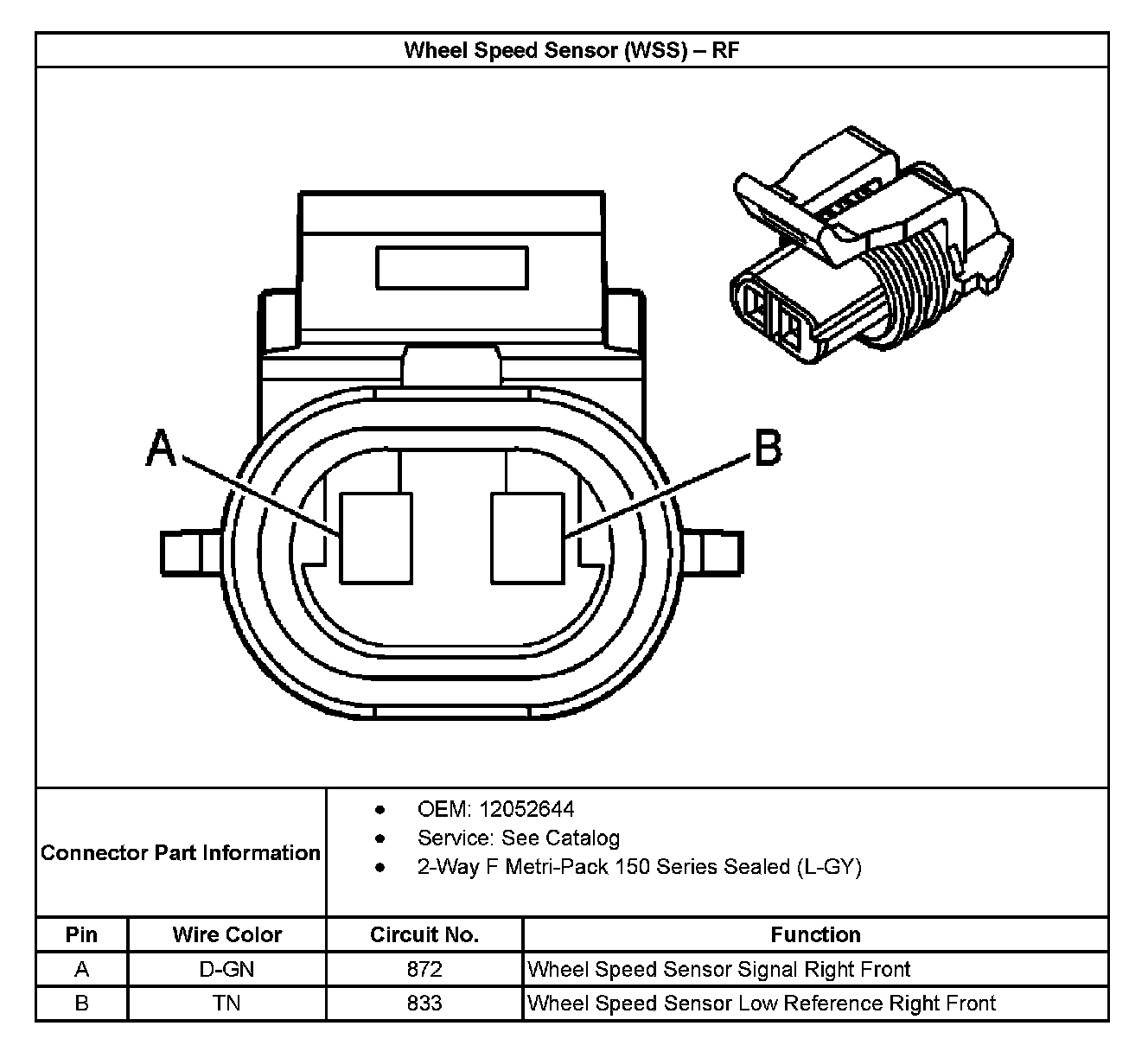

Wheel Speed Sensor - RF:

Wheel Speed Sensor - LR:

Wheel Speed Sensor - RR:
