Keyless Entry System Inoperative

KEYLESS ENTRY SYSTEM INOPERATIVE

TEST DESCRIPTION

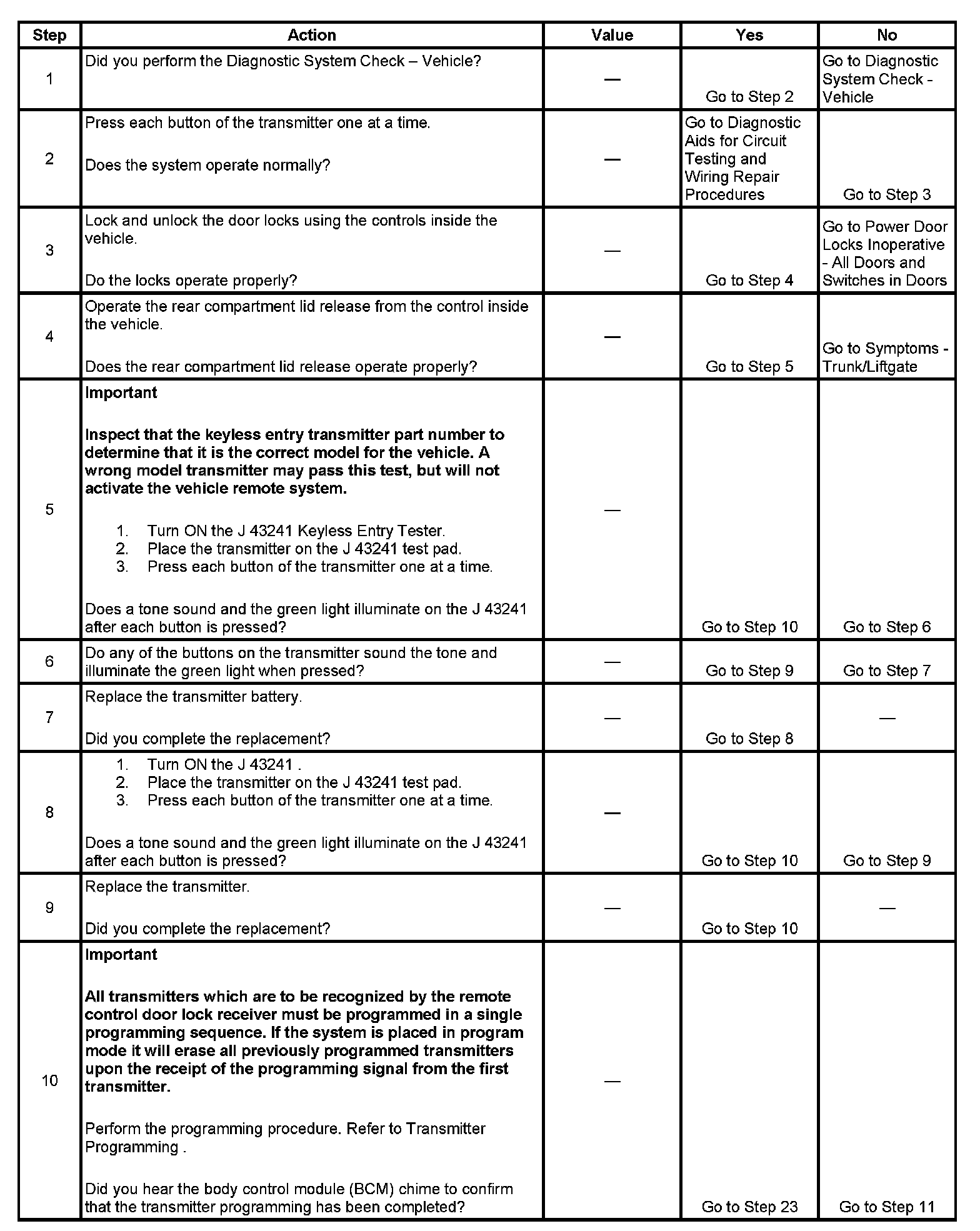

Steps 1-10:

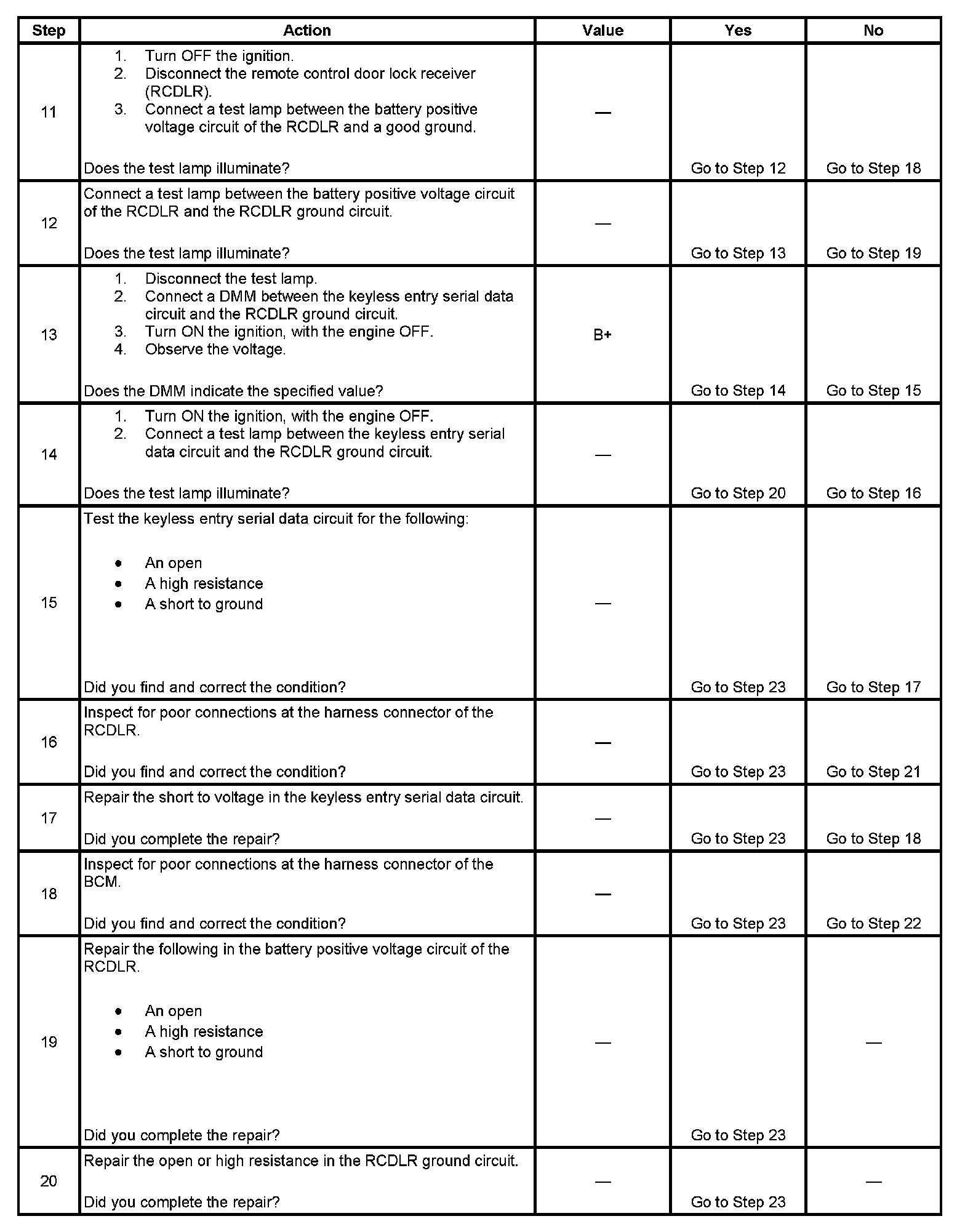

Steps 11-20:

Steps 21-23:

The number below refers to the step number on the diagnostic table.
14. B+ voltage should be present on the serial data terminal when tested with a DMM, but should not illuminate the test lamp. An illuminated test lamp indicates a short to voltage in the serial data circuit.
