Removal Procedure

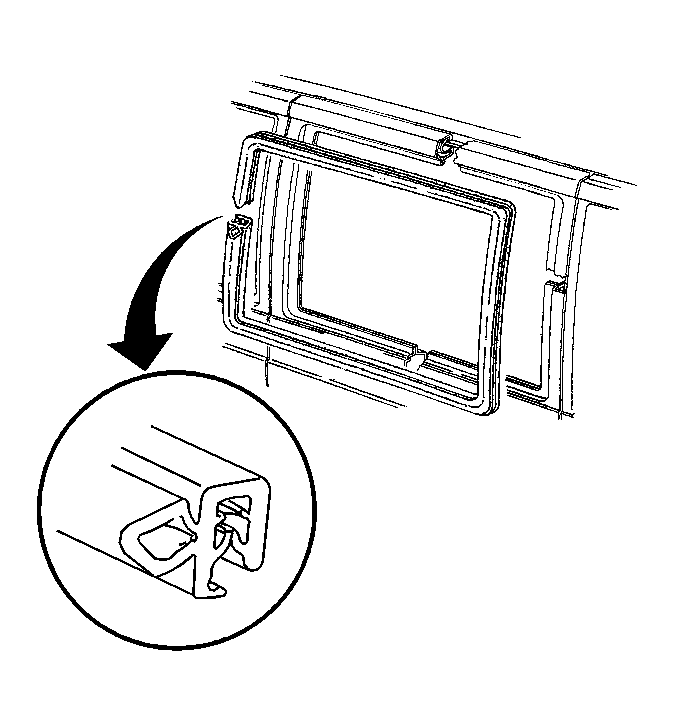

    Fig 1: Cross Sectional View Of Swing Out Window Weatherstrip
    GM311778Courtesy of GENERAL MOTORS CORP.
  1. Open the swing out window.
  2. Pull the weatherstrip from the pinch weld flange.
  3. Grasp the weatherstrip at the lower corner and pull up and away from the pinch-weld.
