Installation Procedure

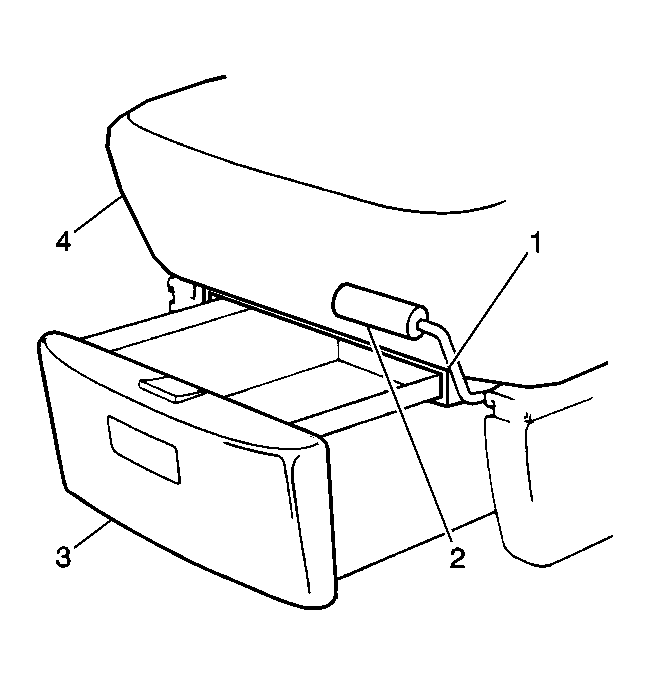

    Fig 1: Locating Storage Tray Components
    GM317096Courtesy of GENERAL MOTORS CORP.
  1. Install the storage tray guides into the track (1) on the seat.
  2. Push the storage tray (3) rearward, overcoming the locking tab.
