Automatic Transmission Shift Lock Control Component Views

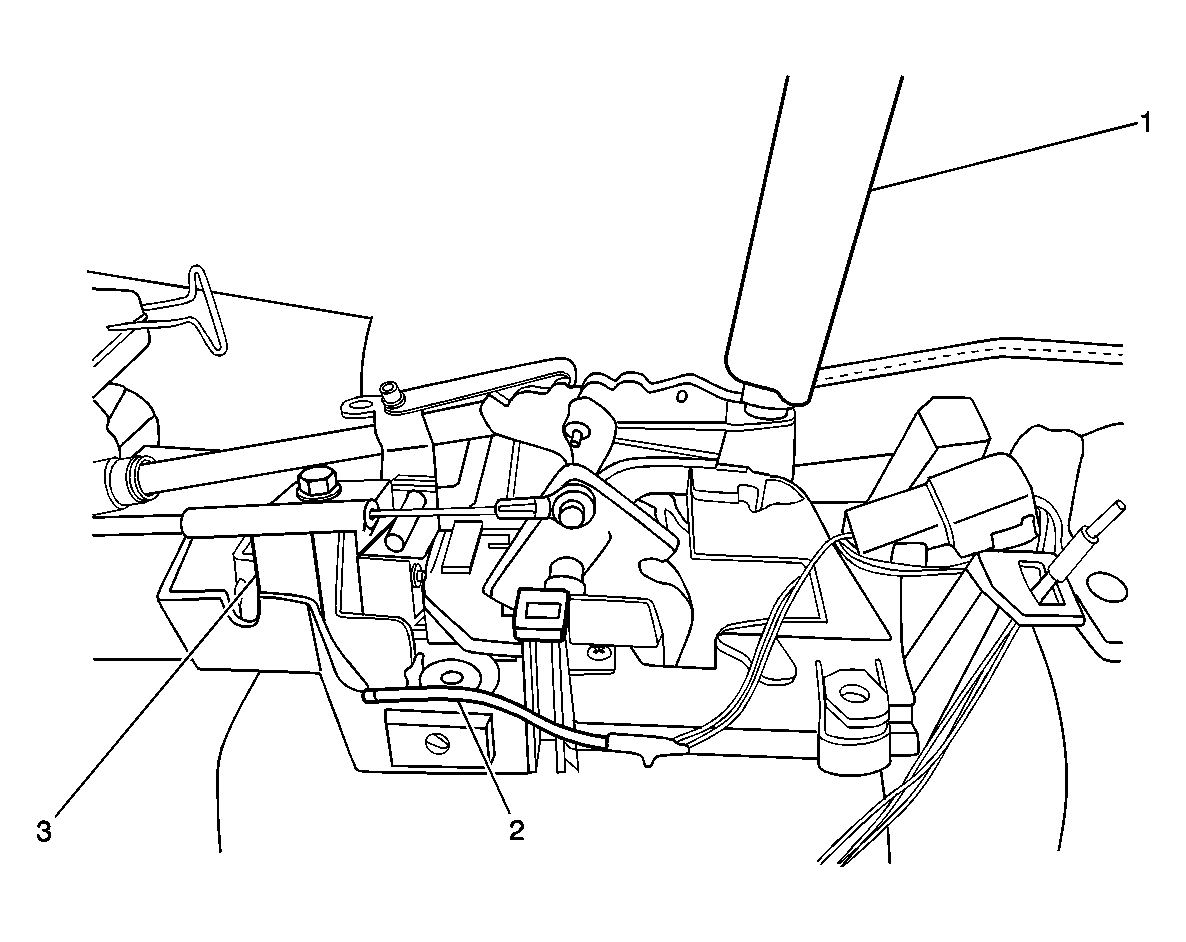

Fig 1: Shift Lock Components - Center Floor Console

GM481489

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Shift Selector
2	Shift Lock Diode
3	Shift Lock Solenoid

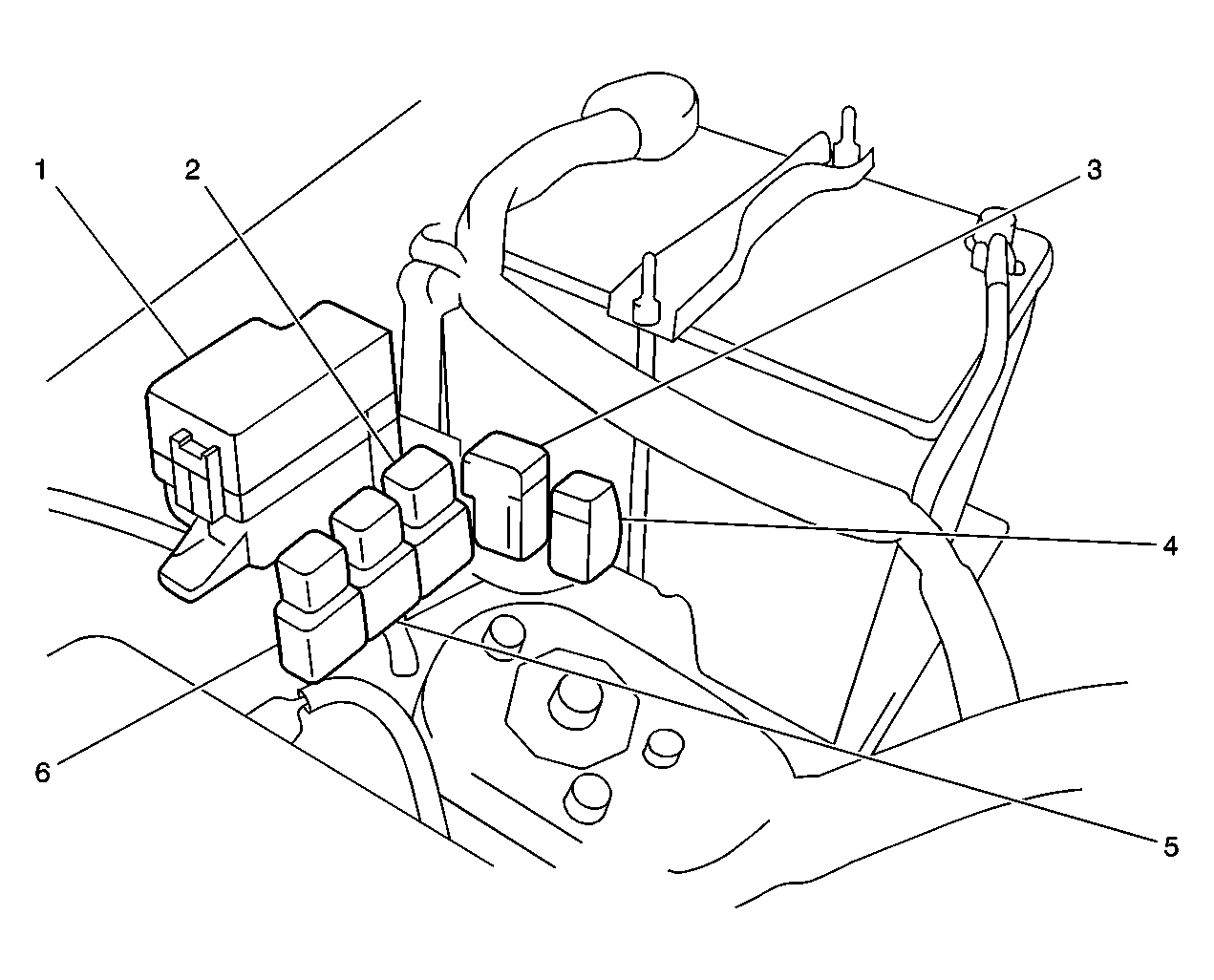

Fig 2: Relay Locations

GM636748

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block
2	Shift Lock Control Relay
3	A/C Condenser Fan Relay
4	A/C Compressor Relay
5	Horn Relay
6	A/C Fuse, Blower Fuse
