ABS Component Views

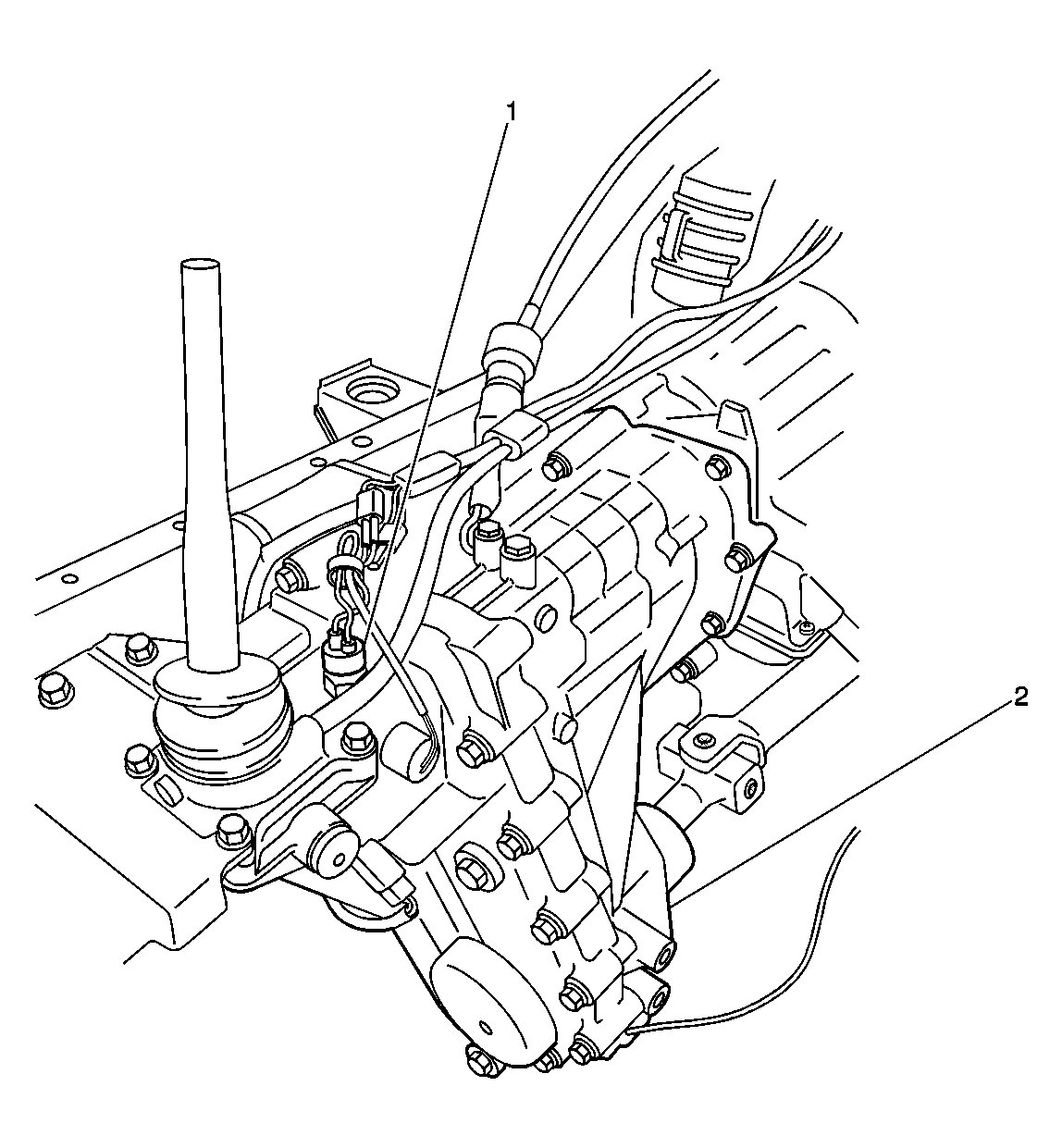

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Four Wheel Drive Switch |
| 2 |
Transfer Case |

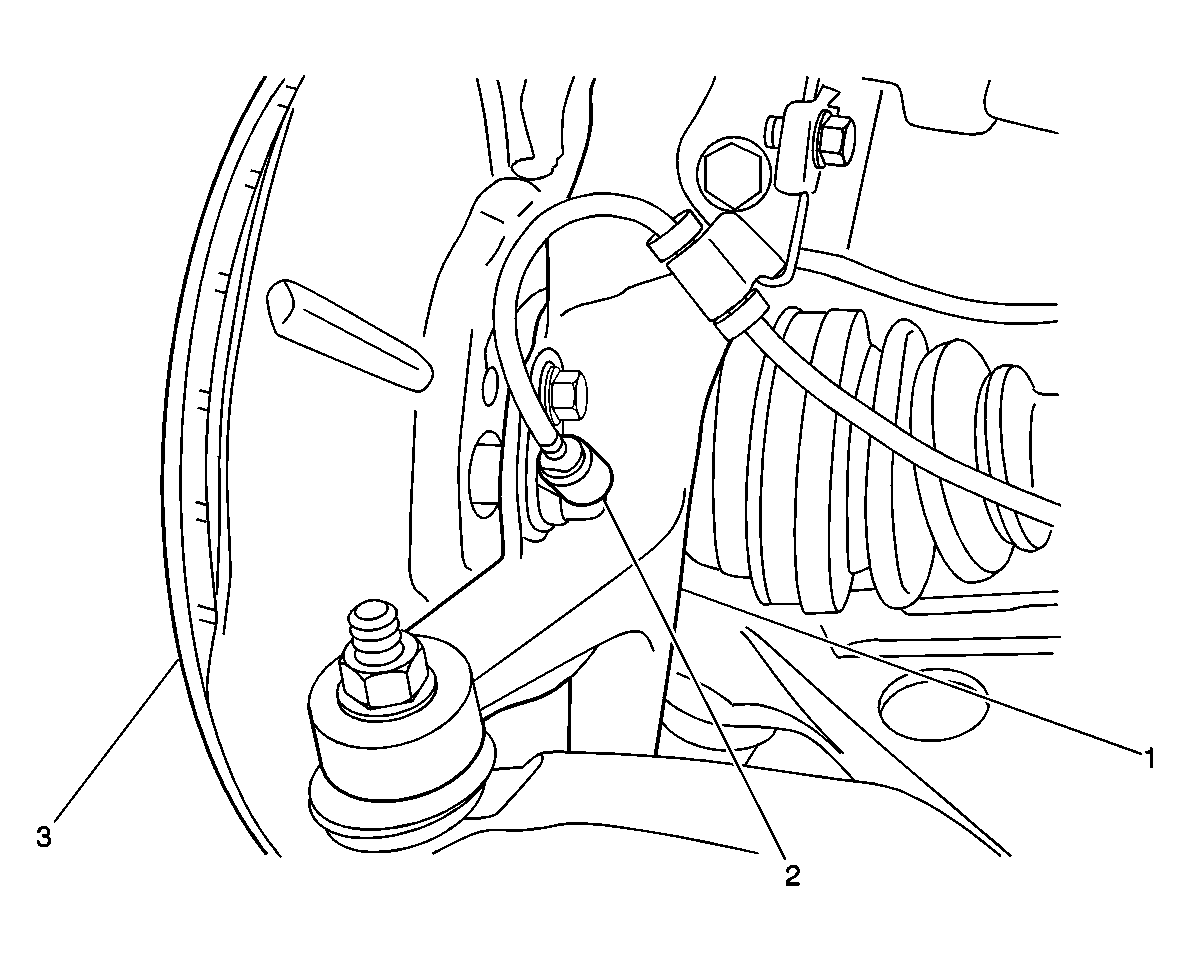

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Steering Knuckle |
| 2 |
Front Wheel Speed Sensor |
| 3 |
Front Brake Rotor |

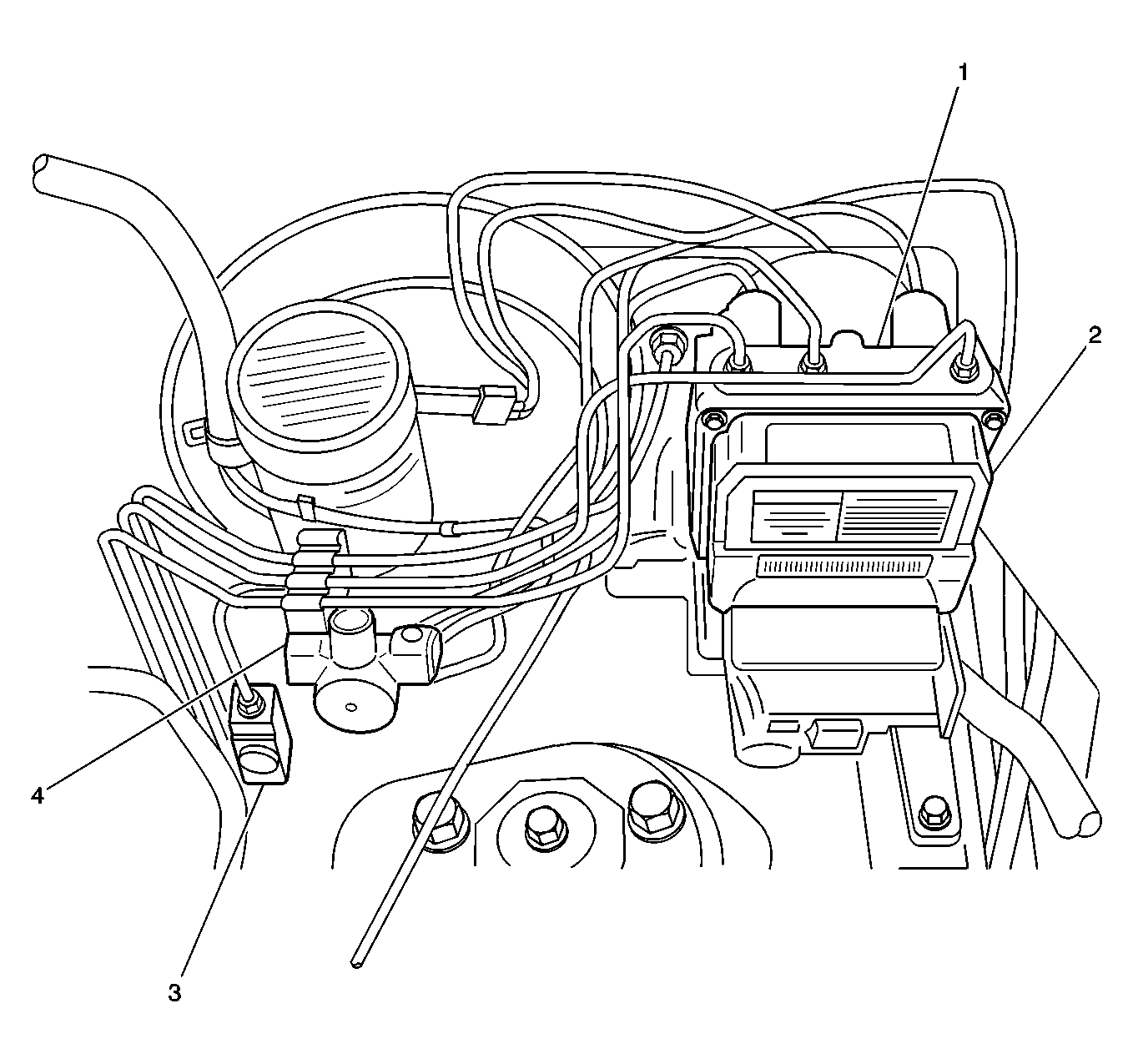

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Brake Pressure Modulator Valve (BPMV) |
| 2 |
Electronic Brake Control Module (EBCM) |
| 3 |
Proportioning Valve |
| 4 |
Master Cylinder |

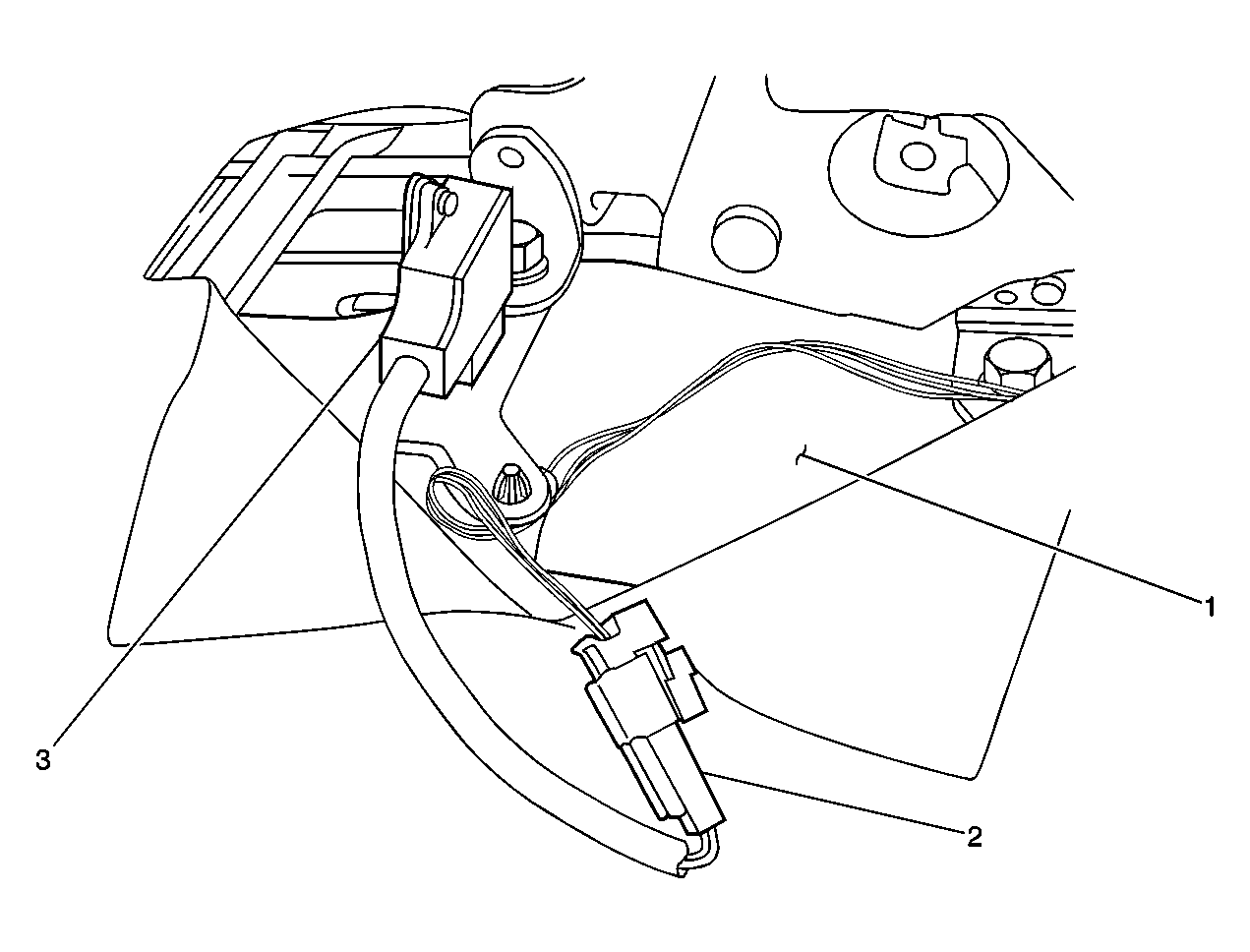

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Transmission Tunnel |
| 2 |
Accelerometer Connector |
| 3 |
Accelerometer |

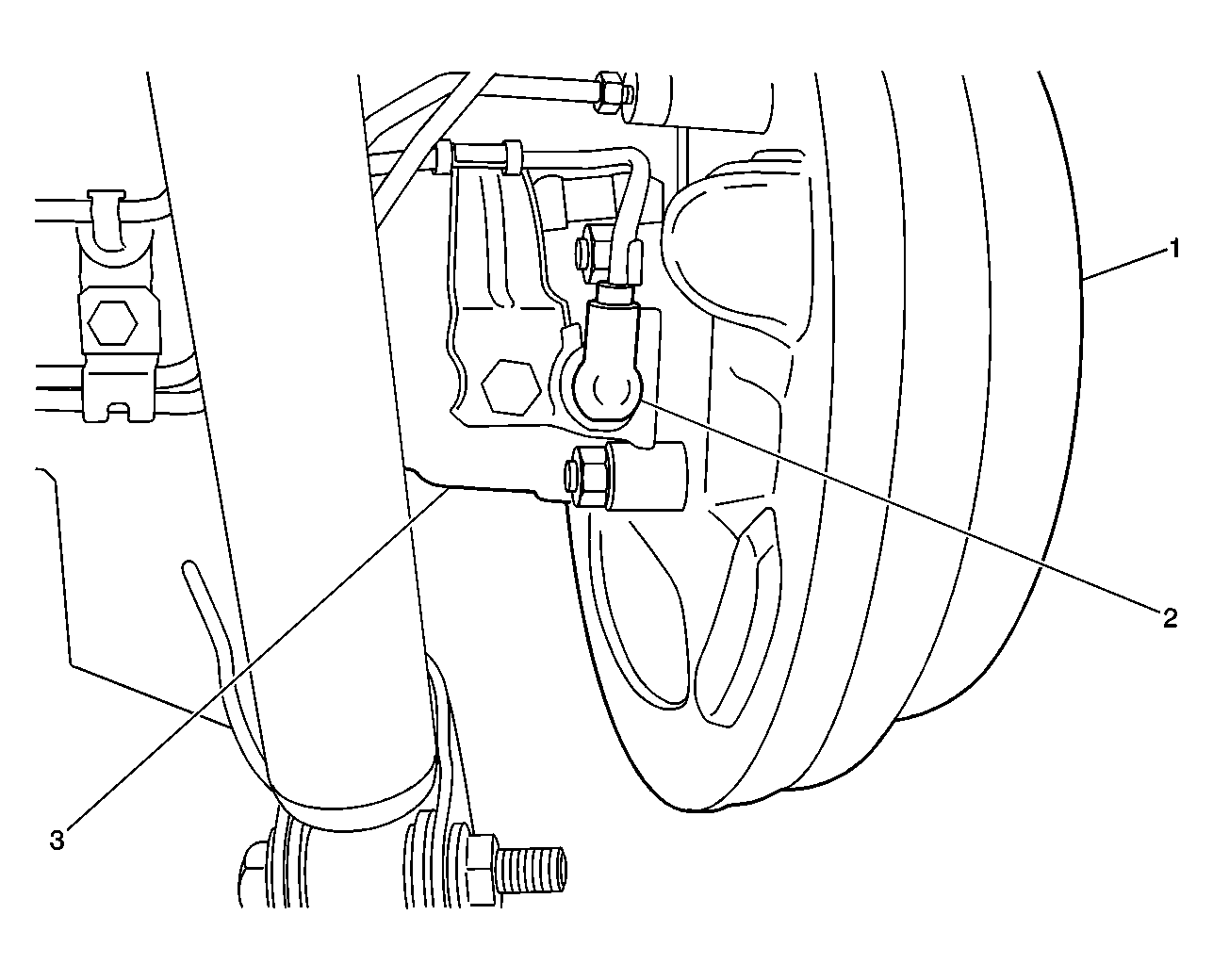

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Rear Brake Drum |
| 2 |
Rear Wheel Speed Sensor |
| 3 |
Rear Axle Housing |
