Oil Pressure Sensor: Locations

ENGINE OIL PRESSURE SENSOR - EOP

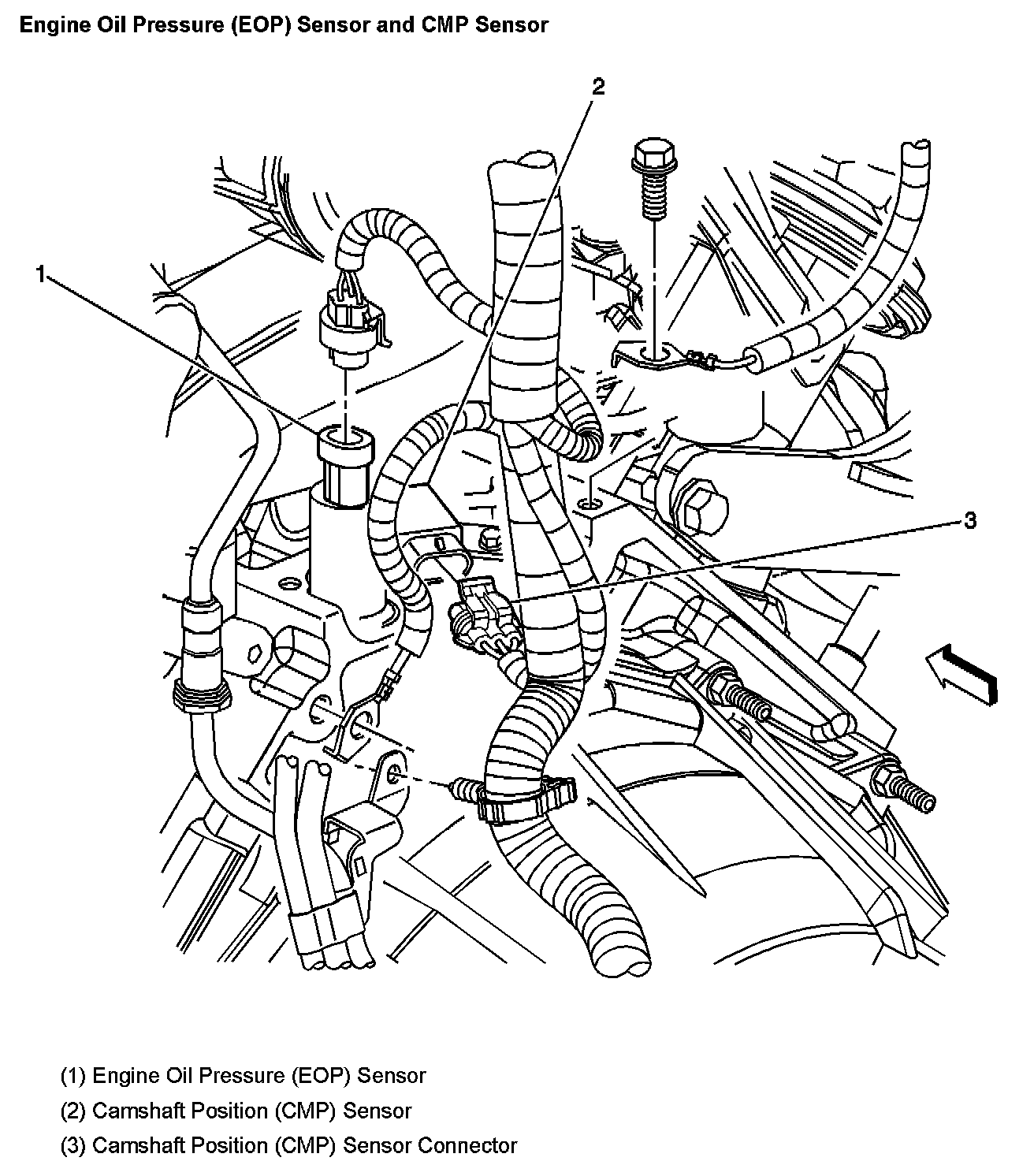

Engine Oil Pressure (EOP) Sensor And CMP Sensor:

The Engine Oil Pressure Sensor (EOP) is located on the rear center of the engine block, near the top.
