Power Seat Control Module: Diagrams

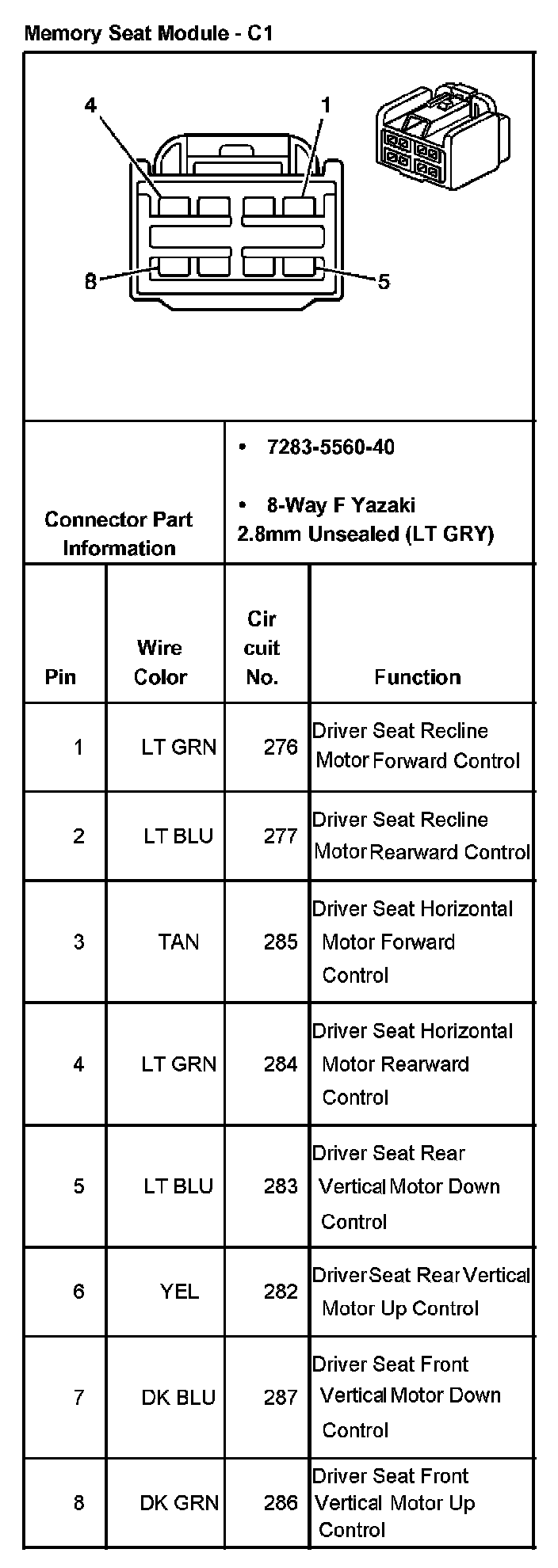

Memory Seat Module - C1:

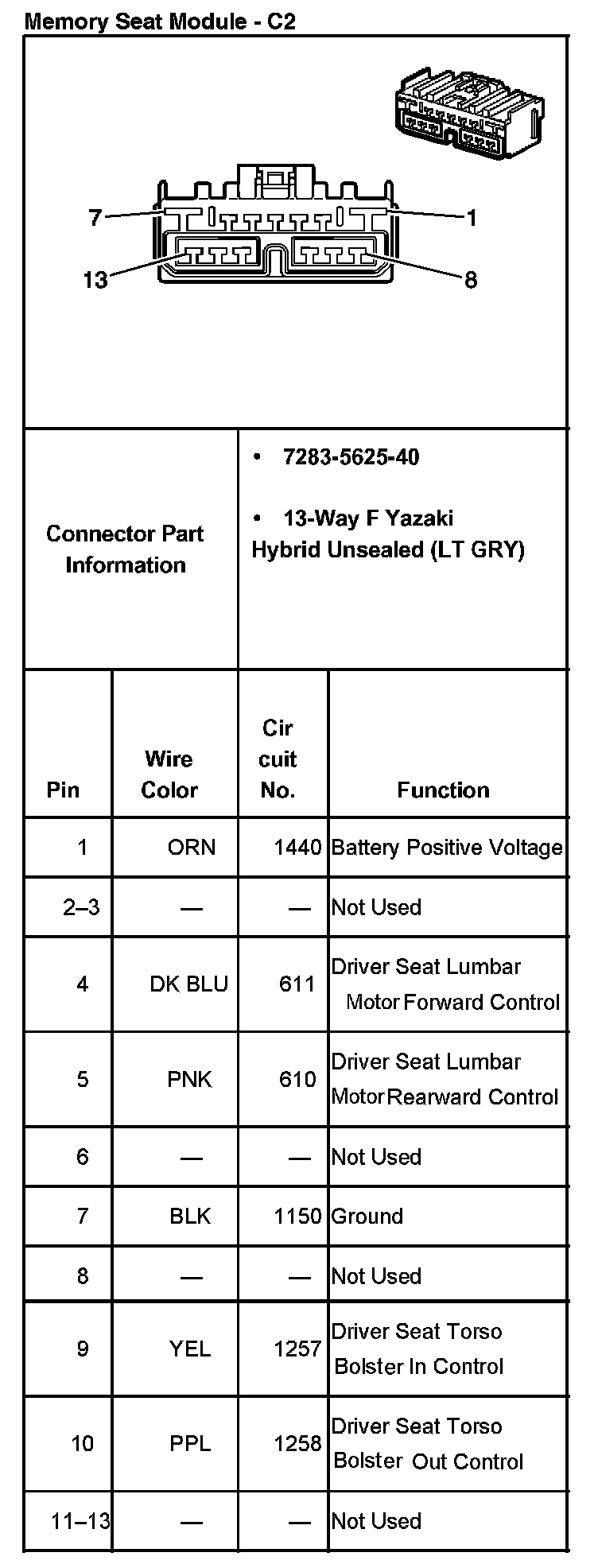

Memory Seat Module - C2:

Memory Seat Module - C3 Part 1:

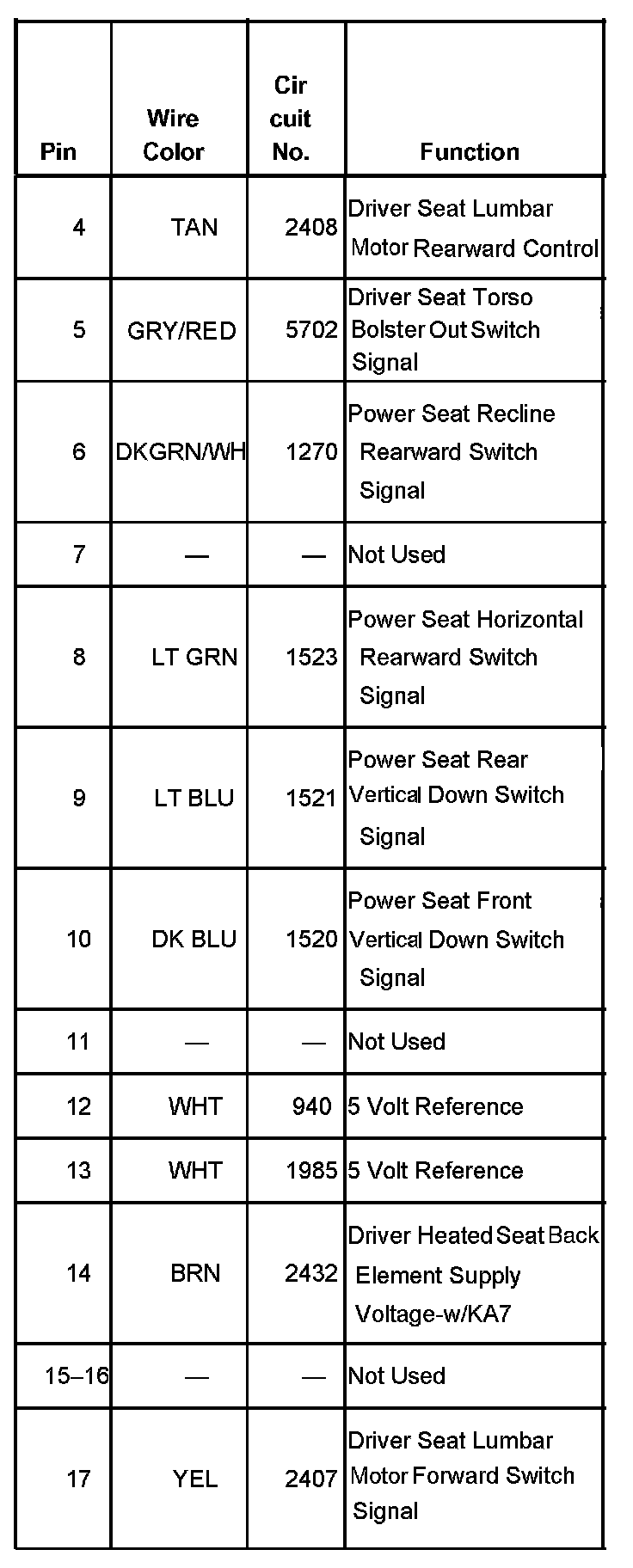

Memory Seat Module - C3 Part 2:

Memory Seat Module - C3 Part 3:

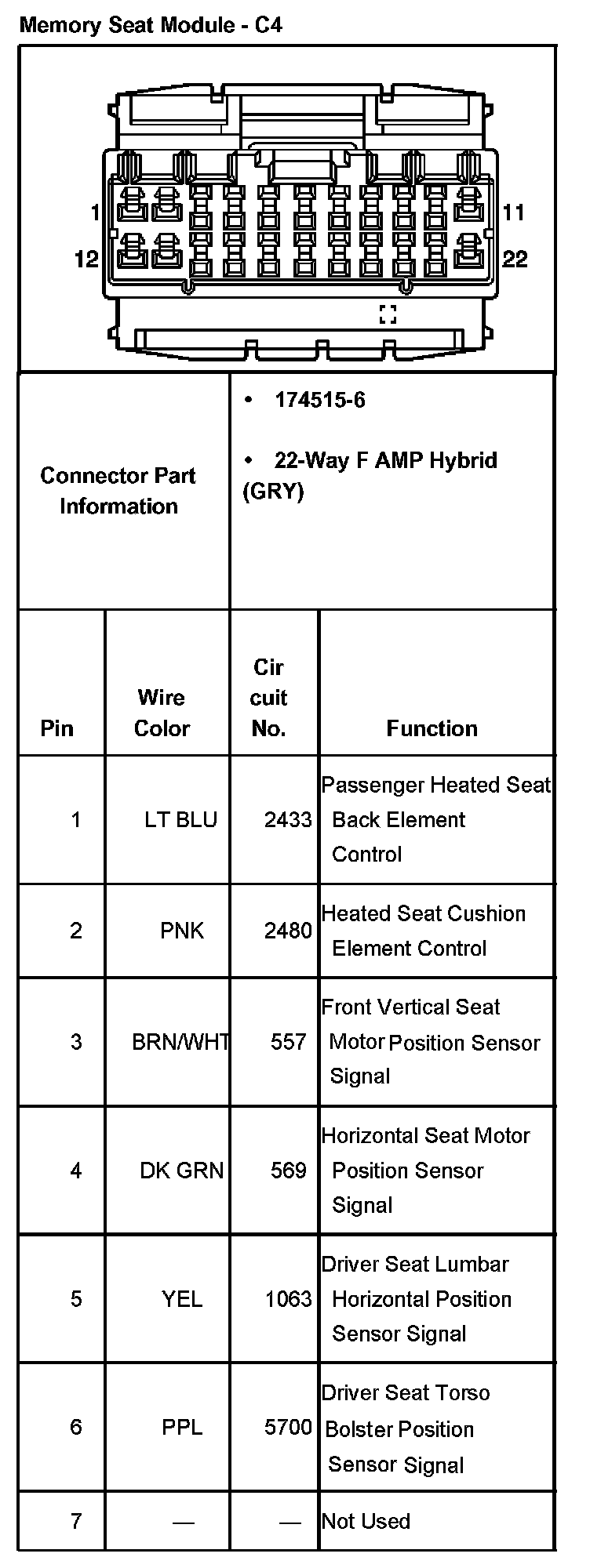

Memory Seat Module - C4 Part 1:

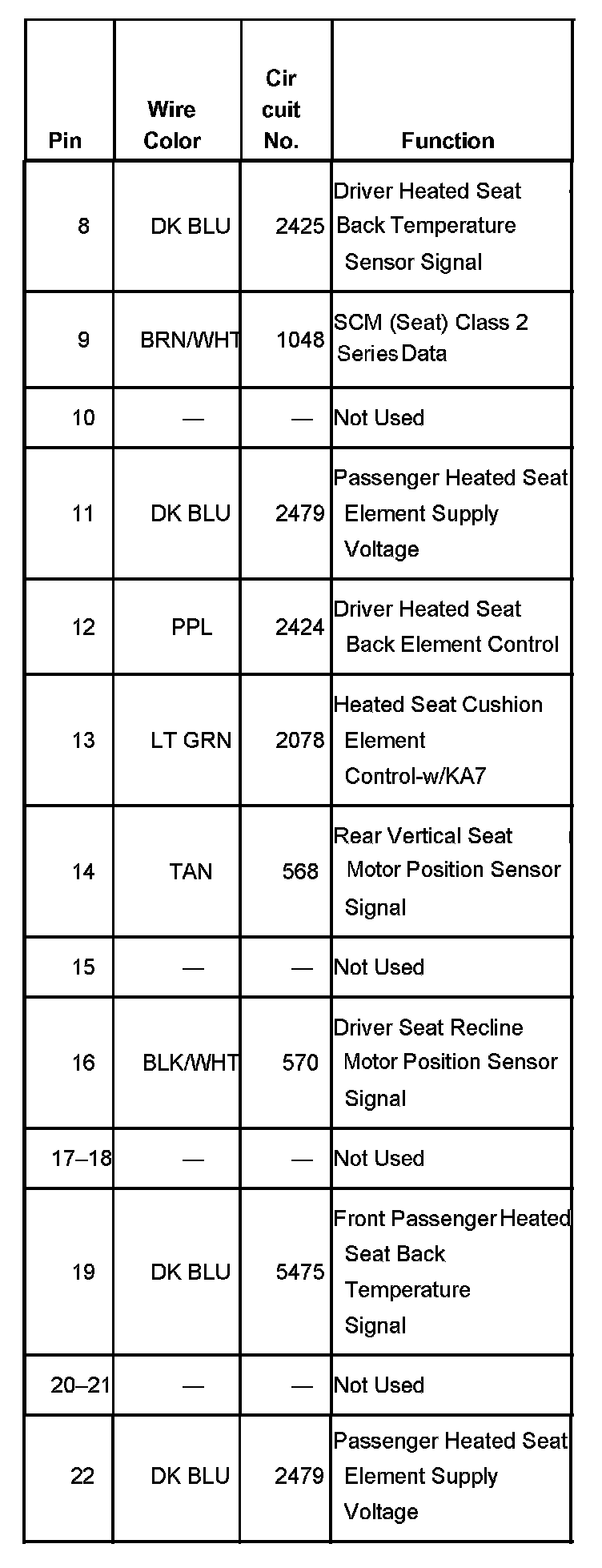

Memory Seat Module - C4 Part 2:
